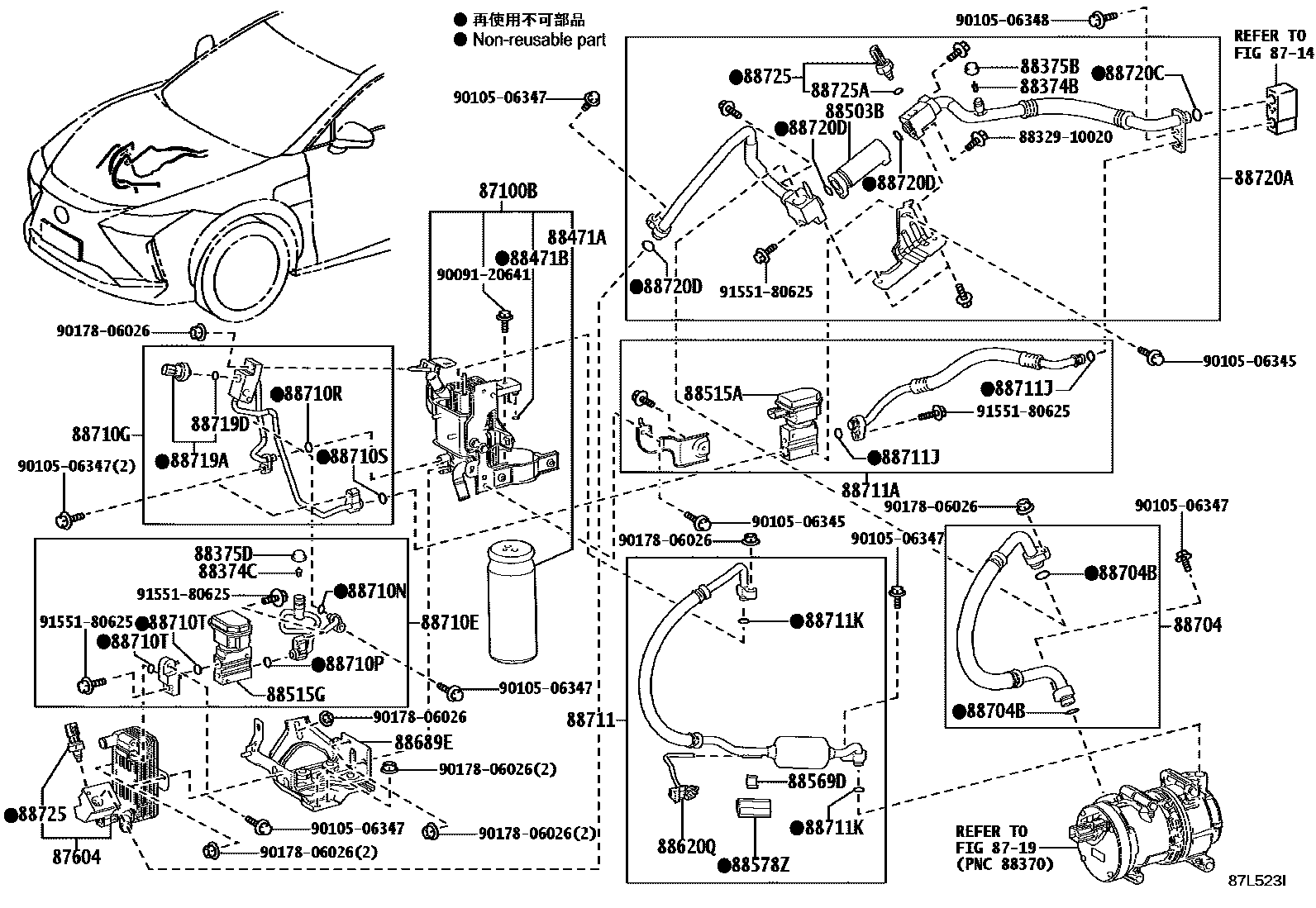

HEATING & AIR CONDITIONING - COOLER PIPING
87100BCONDENSER ASSY
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
87604UNIT SUB-ASSY, HEAT EXCHANGER
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88471ATANK, RECEIVER
88471BRING, O (FOR RECEIVER TANK)
88503BREGULATOR SUB-ASSY, PRESSURE
88569DCLAMP, COOLER, NO.1
88578ZPACKING, COOLER, NO.1
88620QTHERMISTOR ASSY, AIR CONDITIONER NO.1
88689EBRACKET, COOLER, NO.1
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
88711KRING, O, NO.2(FOR DISCHARGE HOSE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88720AHOSE & ACCESSORY, AIR CONDITIONER
88720CRING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
88720DRING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
88725SENSOR, REFRIGERANT
88725ARING, O (FOR REFRIGERANT SENSOR)
8832910020PISTON SUB-ASSY, COOLER COMPRESSOR
main88329-10020
9009120641
main90091-20641
9010506345
main90105-06345
9010506347
main90105-06347
9010506348
main90105-06348
9017806026
main90178-06026
9155180625
main91551-80625
44 parts on this diagram · 1 diagram in section
