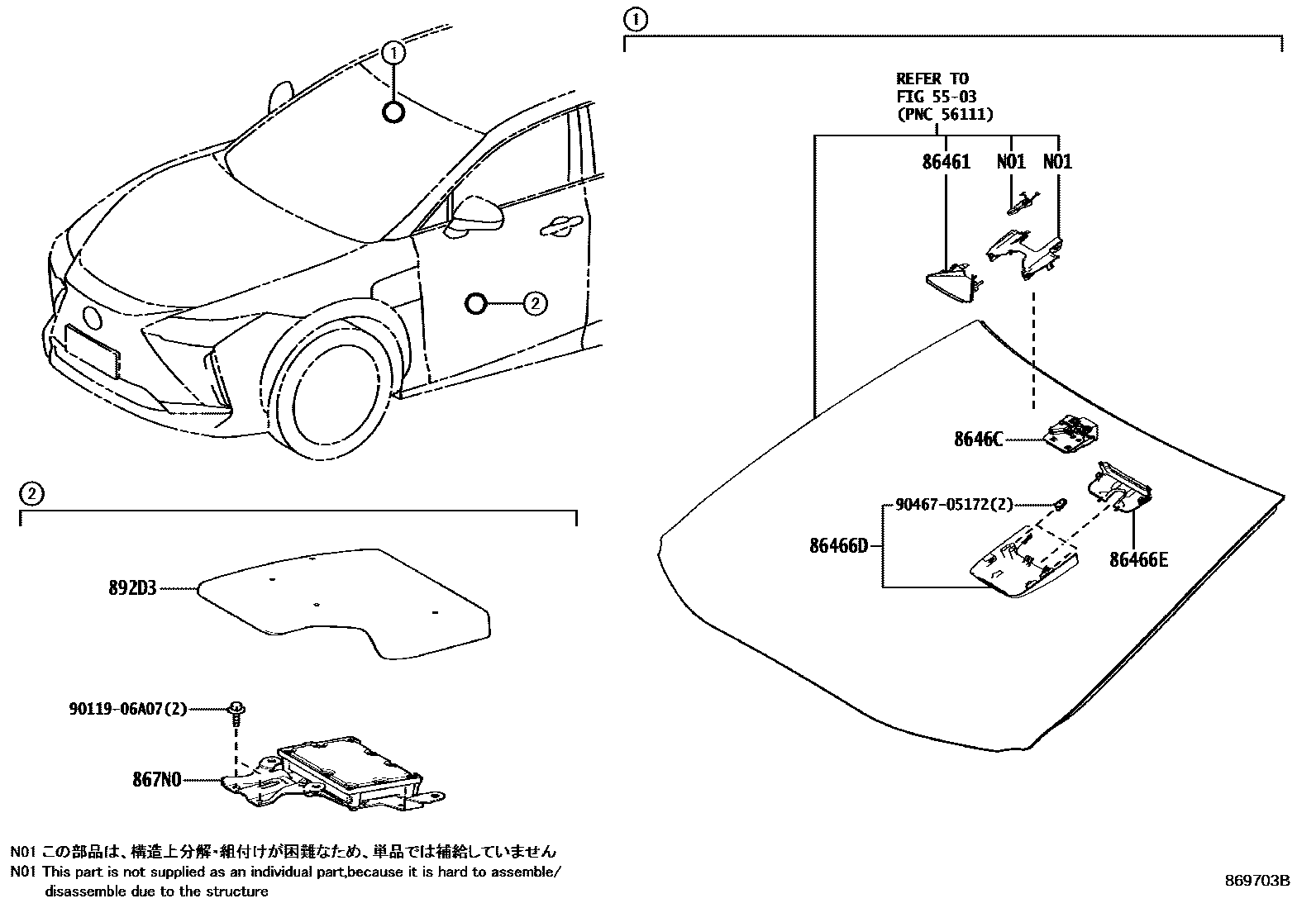

PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86461HOOD, FORWARD RECOGNITION

main86461-78030iXEBM15202302-202311

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-78060iXEBM15202302-202311

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-78020supersedes 86467-78010iXEBM1#202311

8646CCAMERA, FORWARD RECOGNITION

main8646C-46040iXEBM15202302-202311

main8646C-46030iXEBM15..L202302-202311

main8646C-46070supersedes 8646C-46120iXEBM1#202311-202410

main8646C-46110supersedes 8646C-46120iXEBM1#202410

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-46010iXEBM1#202311

main867N0-46020supersedes 867N0-46010iXEBM15202302-202311

892D3COVER, COMMUNICATION

main892D3-46010iXEBM15; XEBM15..L202302-202311

9011906A07

main90119-06A07

9046705172

main90467-05172

9 parts on this diagram · 1 diagram in section
