CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-46010iXEBM1#..L202311

86471CAMERA, DRIVER MONITOR

main86471-48010iXEBM1#..L202311

main86471-46010supersedes 86471-48010iXEBM15..L202302-202307

86790BCAMERA ASSY, TELEVISION, FR

main86790-46060iXEBM15202302-202311

86790DCAMERA ASSY, TELEVISION, RR

main86790-46020iXEBM1#202311

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78080iXEBM1#202311

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78070iXEBM1#202311

86792CCOMPUTER, PARKING ASSIST

main86792-46100iXEBM15202302-202311

main86792-46180iXEBM1#202311

86794BCOVER, TELEVISION CAMERA

main86794-46020supersedes 86794-46020iXEBM15..L202302-202311

main86794-46010supersedes 86794-46020iXEBM1#202311

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-46030iXEBM1#202311

867C0CAMERA ASSY, INNER MIRROR

main867C0-46010iXEBM1#202311

867C1WIRE, MIRROR CAMERA

main867C1-46010iXEBM1#202311

9015350015

main90153-50015

9015950393

main90159-50393

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018306032

main90183-06032

9018906244

main90189-06244

9167380616

main91673-80616

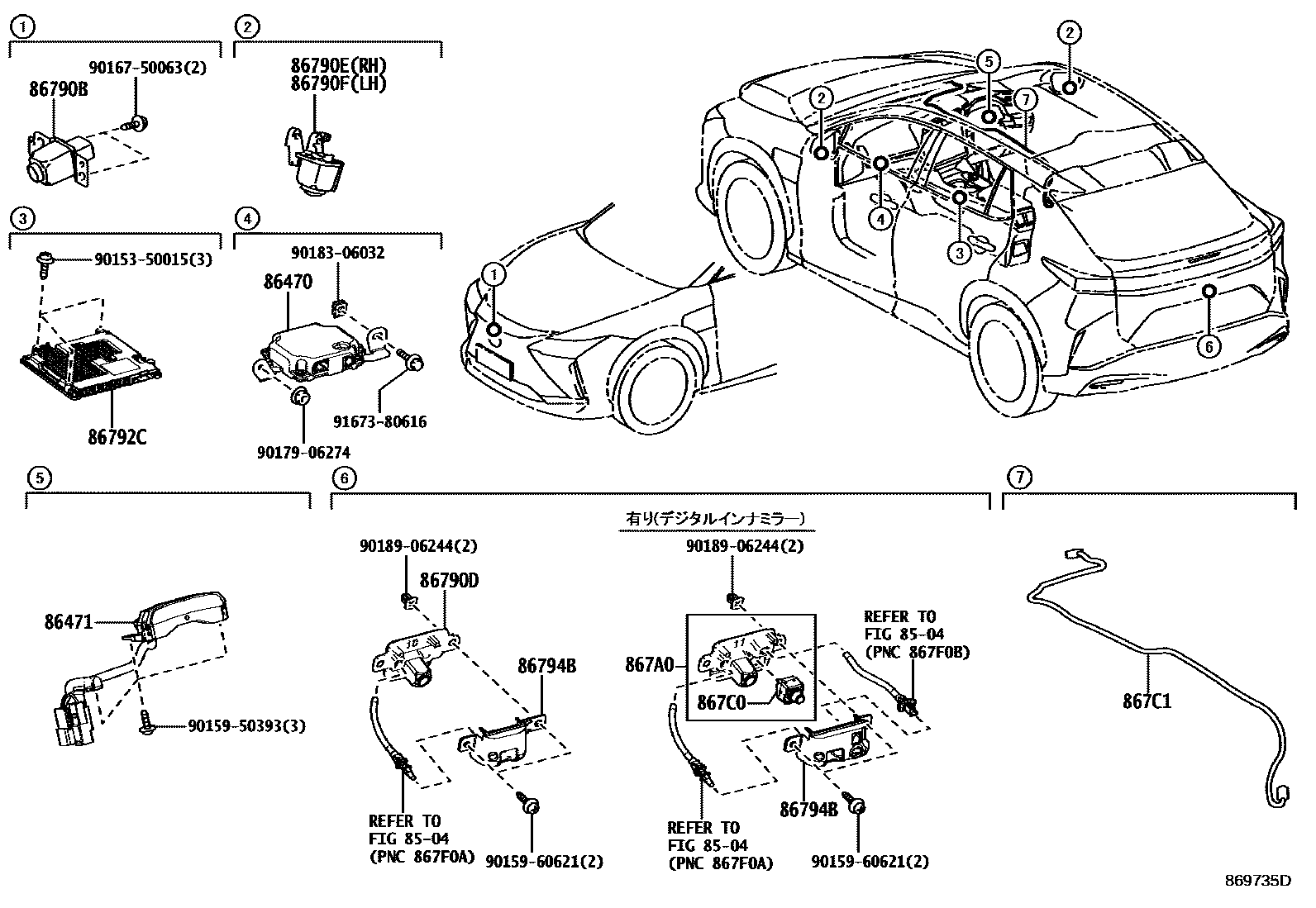

20 parts on this diagram · 1 diagram in section
