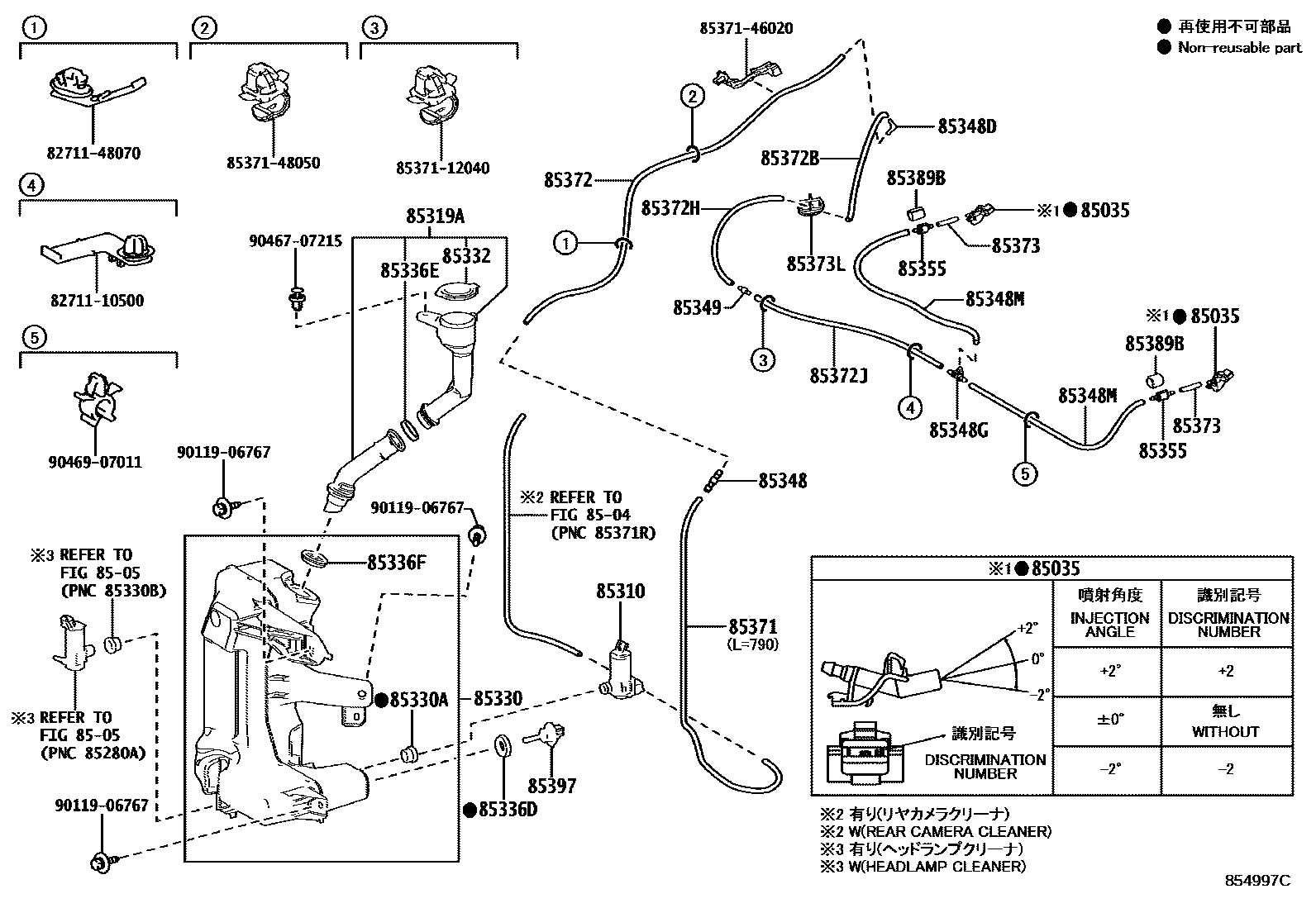

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
8505HEADLAMP CLEANER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85336FPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373LGROMMET, WASHER
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10500
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48070
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
8537146020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-46020
8537148050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-48050
9011906767
main90119-06767
9046707215
main90467-07215
9046907011
main90469-07011
34 parts on this diagram · 1 diagram in section
