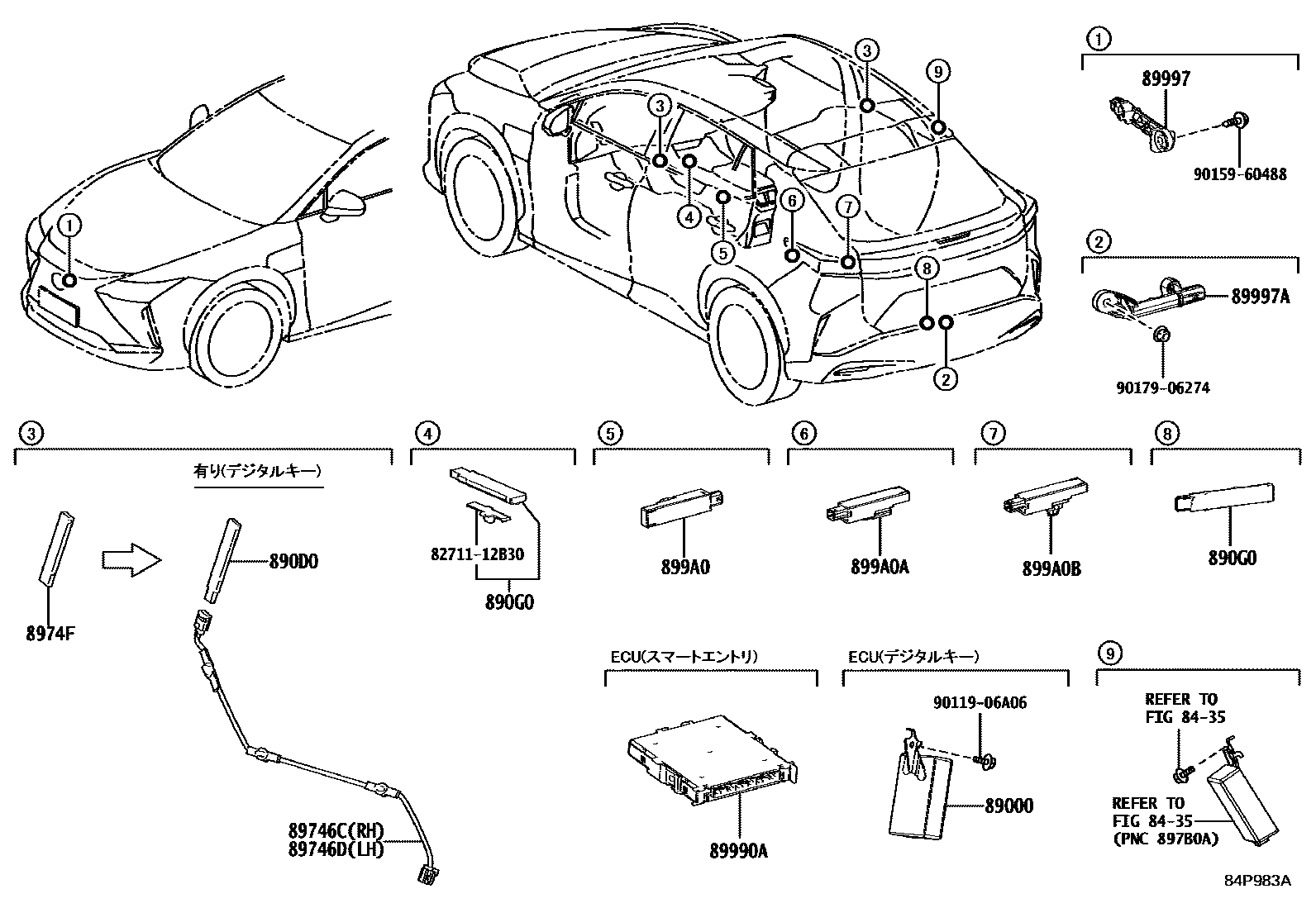

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-46010iXEBM15202302-202303

main89000-46011iXEBM15202303-202308

main89000-46050iXEBM15..L202302-202311

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2iXEBM15; XEBM15..L202302-202311

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V1010×2iXEBM15; XEBM15..L202302-202311

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-46020iXEBM1#202311

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-46030iXEBM1#202311

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iXEBM1#202311

89990ACOMPUTER ASSY, SMART KEY

main899H0-46020supersedes 899H0-46040iXEBM15202302-202308

main899H0-46040iXEBM15202309-202311

main899H0-46060iXEBM1#202410

89997ANTENNA, ELECTRICAL KEY

main89997-30100iXEBM1#202311

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iXEBM15202302-202311

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iXEBM1#202311

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42040iXEBM15202302-202311

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iXEBM1#202311

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

17 parts on this diagram · 1 diagram in section
