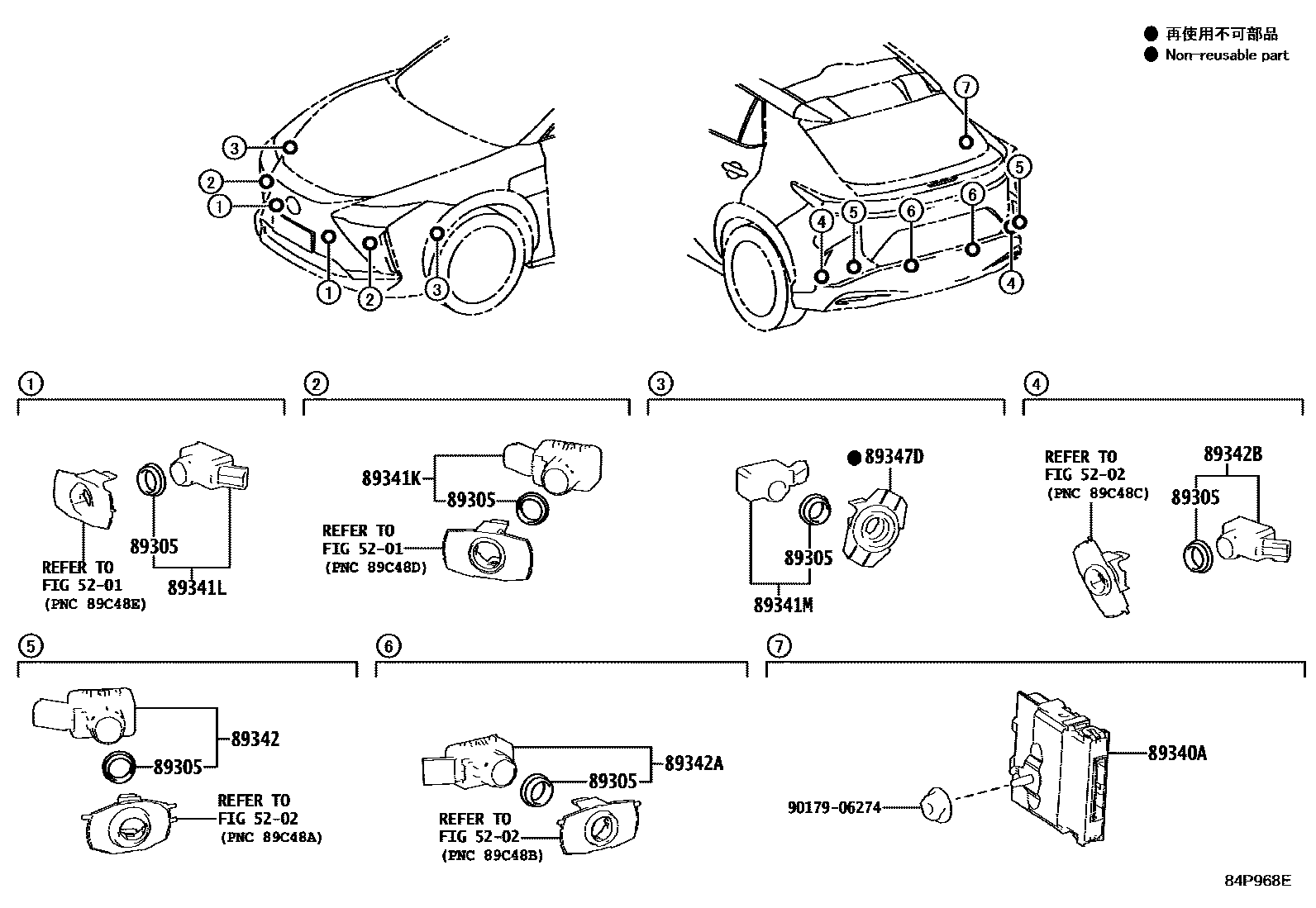

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
BLACK,2YF ,2YG ,2YH ,M44
BLACK,2YF ,2YG ,2YH
SONIC COPPER,2YF
SONIC COPPER,2YF ,4Y5
SONIC IRIDIUM,1L2
SONIC CHROME,2YH
SONIC CHROME,1L1 ,2YH
AETHER ME.,2YG
AETHER ME.,2YG ,8Z2
METALLIC BLACK,085 ,1L1 ,1L2 ,223 ,4Y5 ,8Z2
METALLIC BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,4Y5 ,8Z2 ,9L6 ,9L7
89341LSENSOR, ULTRASONIC, FRONT CENTER
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
BLACK,2YF ,2YG ,2YH
BLACK,2YF ,2YG ,2YH ,M44
SONIC COPPER,2YF ,4Y5
SONIC COPPER,2YF ,4Y5 ,9L6
SONIC IRIDIUM,1L2
SONIC CHROME,1L1 ,2YH
AETHER ME.,2YG ,8Z2
AETHER ME.,2YG ,8Z2 ,9L7
METALLIC BLACK,085 ,1L1 ,1L2 ,223 ,4Y5 ,8Z2
89341MSENSOR, ULTRASONIC, FRONT SIDE
89342SENSOR, ULTRASONIC, REAR CORNER
DUMMY-MAT BLACK
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2 ,M44
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89342ASENSOR, ULTRASONIC, REAR CENTER
DUMMY-MAT BLACK
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2 ,M44
89342BSENSOR, ULTRASONIC, REAR SIDE
89347DRETAINER, ULTRASONIC SENSOR, FRONT SIDE
9017906274
main90179-06274
12 parts on this diagram · 1 diagram in section
