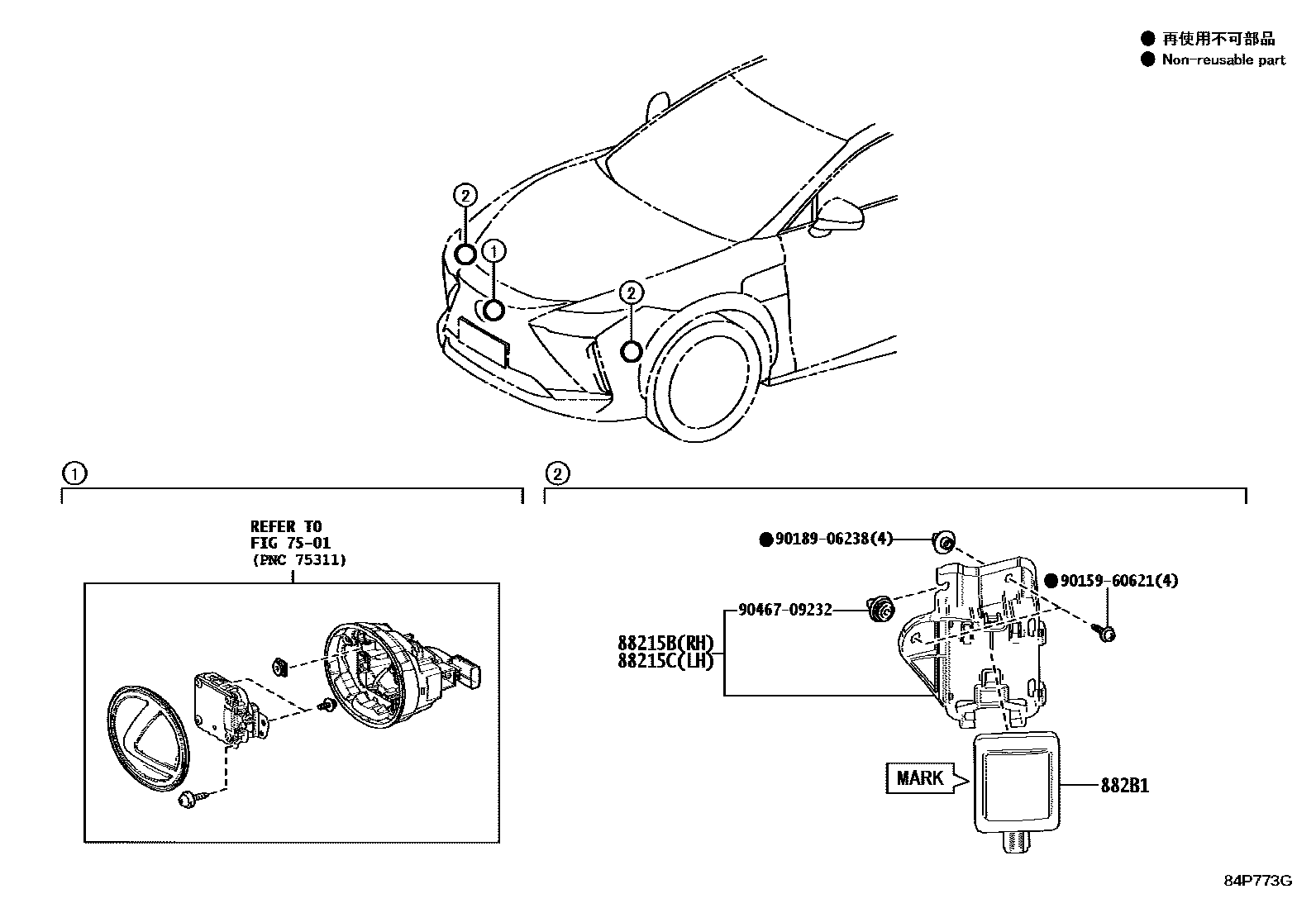

CRUISE CONTROL (AUTO DRIVE)

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

88215BBRACKET, FRONT SIDE RADAR SENSOR, RH

main88215-46010iXEBM1#..C; XEBM1#..L202311

88215CBRACKET, FRONT SIDE RADAR SENSOR, LH

main88215-46020iXEBM1#..C; XEBM1#..L202311

882B1SENSOR, FRONT SIDE RADAR

main882B1-30030×2iXEBM1#..C; XEBM1#..L202311-202402

main882B1-30031×2iXEBM1#..C; XEBM1#..L202403

main882B1-48030×2iXEBM15..C; XEBM15..L202302-202310

main882B1-48031×2iXEBM15..C; XEBM15..L202310-202311

9015960621

main90159-60621

9018906238

main90189-06238

9046709232

main90467-09232

7 parts on this diagram · 1 diagram in section
