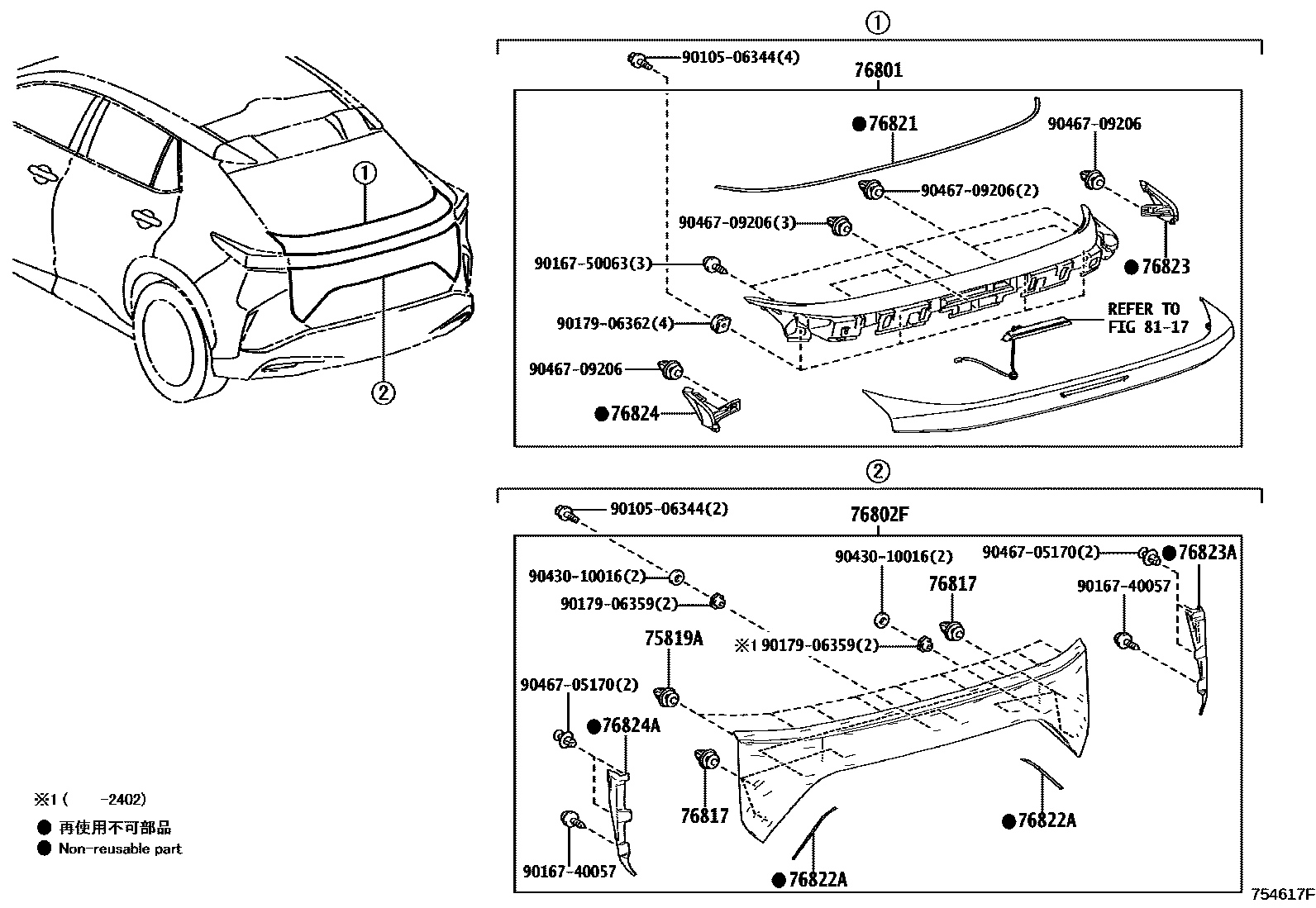

REAR MOULDING
75819ACLIP, BACK DOOR MOULDING
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SONIC QUARTZ,085
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5
SONIC COPPER,2YF ,4Y5 ,9L6
AETHER ME.,2YG ,8Z2 ,9L7
AETHER ME.,2YG ,8Z2
76802FGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
SONIC QUARTZ,085
HAKUGIN,M44
SONIC CHROME,1L1 ,2YH
SONIC IRIDIUM,1L2
GRAPHITE BLACK GF.,223
SONIC COPPER,2YF ,4Y5 ,9L6
SONIC COPPER,2YF ,4Y5
AETHER ME.,2YG ,8Z2 ,9L7
AETHER ME.,2YG ,8Z2
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
8117
9010506344
main90105-06344
9016740057
main90167-40057
9016750063
main90167-50063
9017906359
main90179-06359
9017906362
main90179-06362
9043010016
main90430-10016
9046705170
main90467-05170
9046709206
main90467-09206
19 parts on this diagram · 2 diagrams in section
