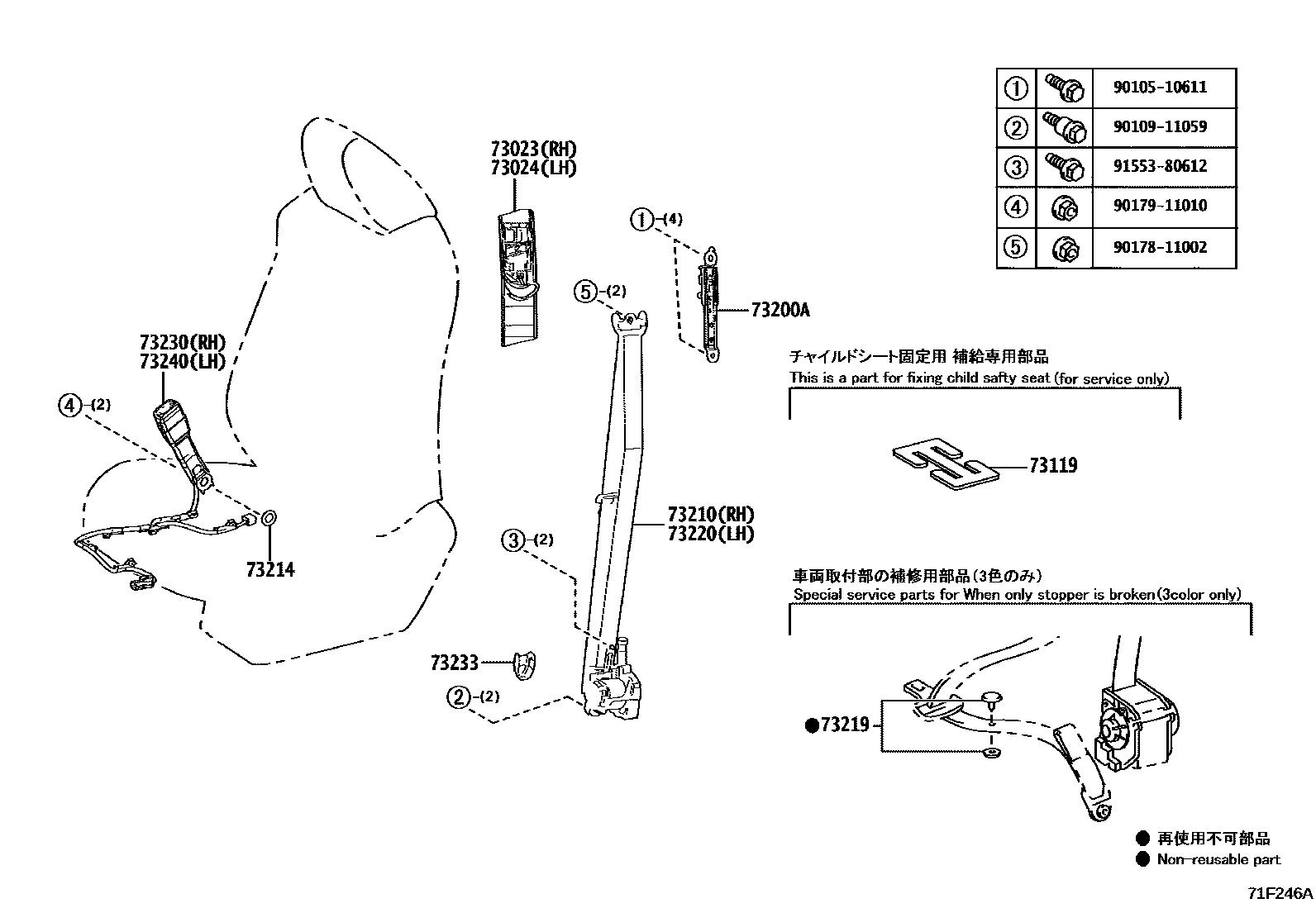

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iXEBM1#202311

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iXEBM1#202311

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76201-C1iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iXEBM15202302-202311

73219STOPPER, TONGUE PLATE

main73219-33010iXEBM1#202311

main73219-33020iXEBM15202302-202311

main73219-33030iXEBM15202302-202311

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-C1iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-46070-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-46080-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

9010510611

main90105-10611

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
