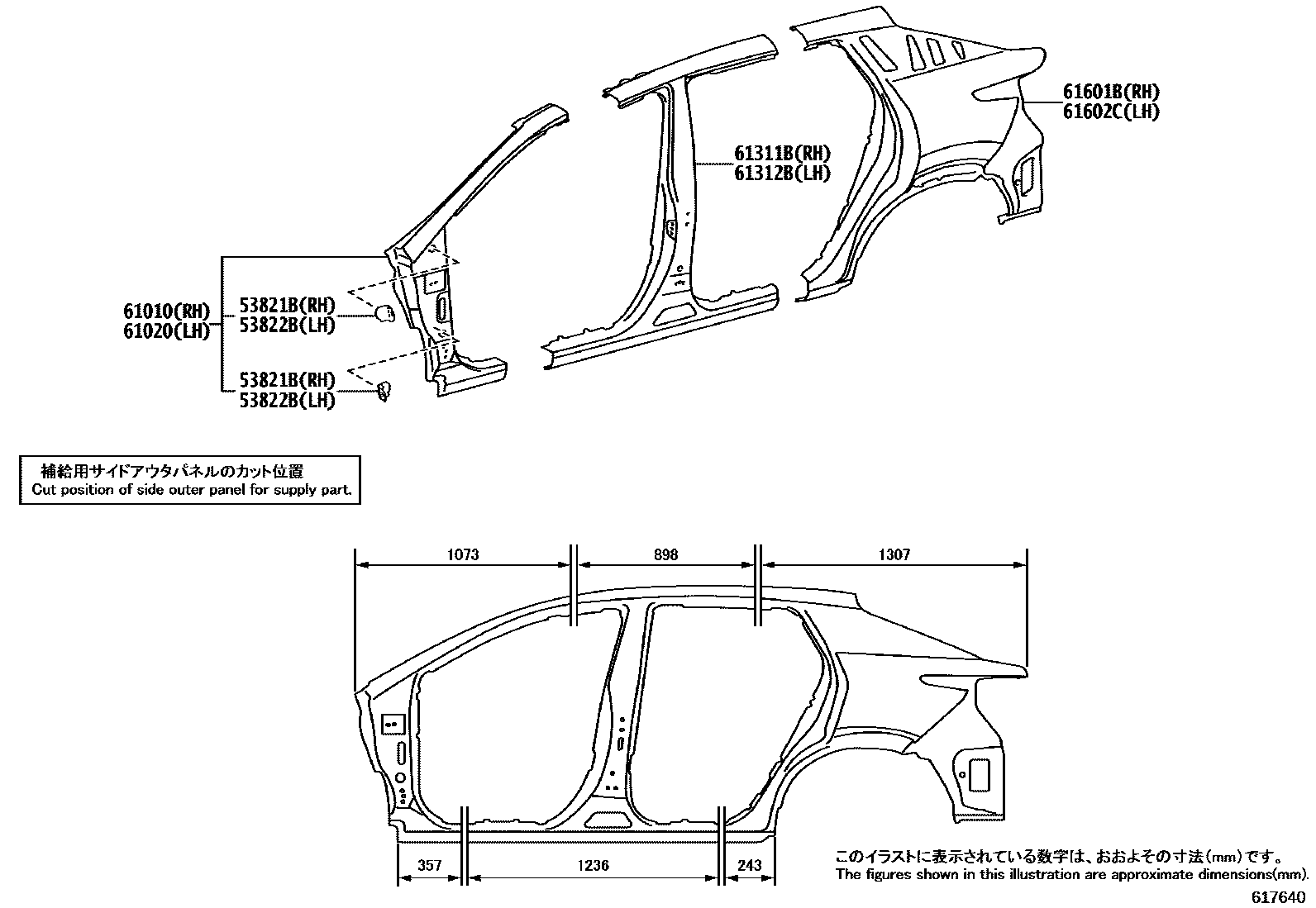

Toyota 564110 — SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

53822BBRACKET, FRONT FENDER, REAR LH

61010MEMBER ASSY, SIDE, RH

61010-46010

61010-46020

61020MEMBER ASSY, SIDE, LH

61020-46010

61020-46020

61311BPILLAR, CENTER BODY, OUTER RH

61312BPILLAR, CENTER BODY, OUTER LH

61601BPANEL SUB-ASSY, QUARTER, RH

61602CPANEL SUB-ASSY, QUARTER, LH

61683FBRACKET, REAR WHEEL OPENING, RH

61684ABRACKET, REAR WHEEL OPENING, LH

10 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota 564110

This section contains 86 genuine Toyota parts for the SIDE MEMBER system of the Toyota 564110. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, BRACKET, FRONT SIDE PANEL, NO.2 RH, BRACKET, FRONT SIDE PANEL, NO.2 LH, HOLE PLUG.
