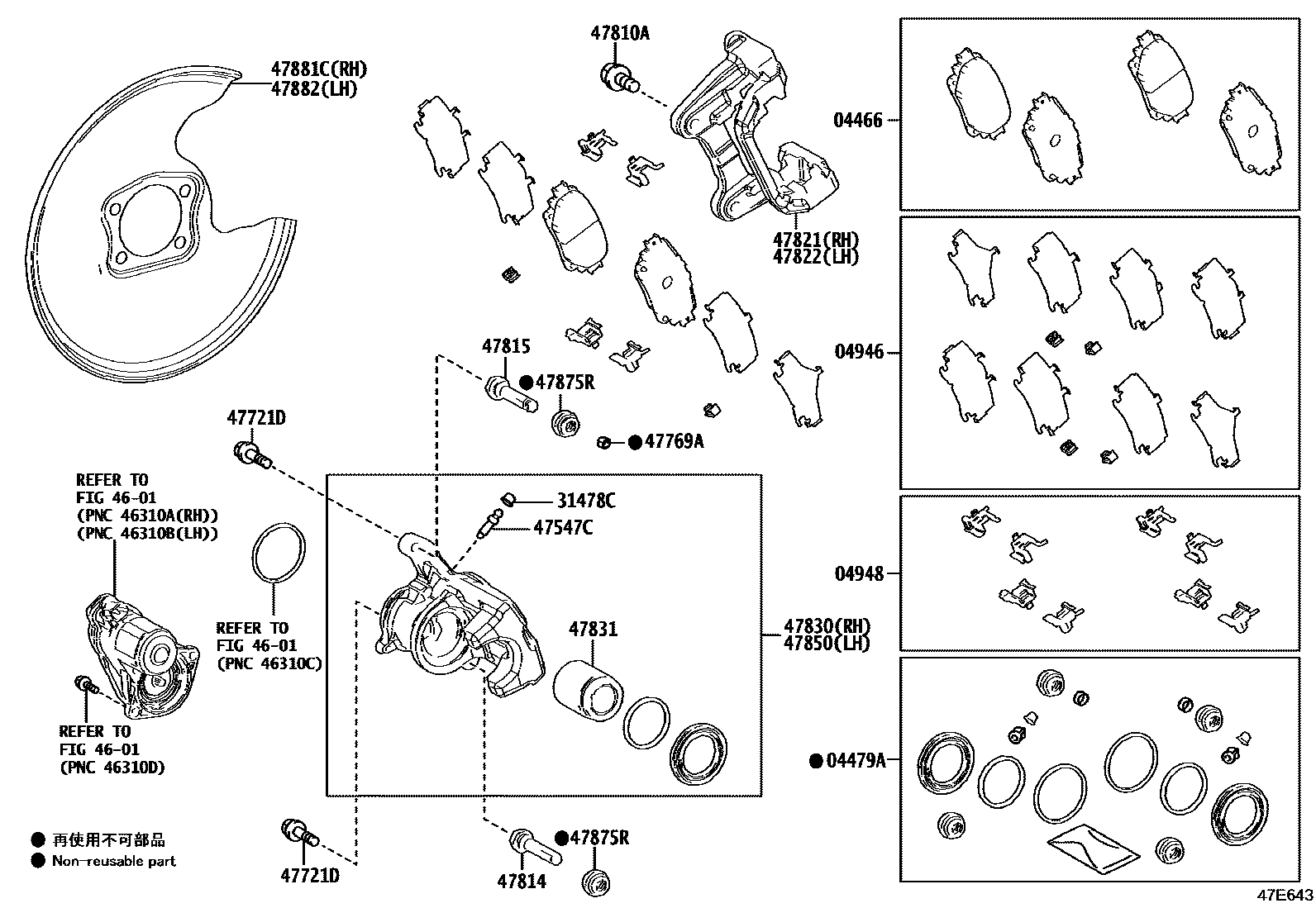

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1"F SPORT PERFORMANCE"*(T)

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iXEBM1#202311

main04466-F4020iXEBM15202302-202311

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iXEBM1#202311

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iXEBM1#202311

main04946-F4020iXEBM15202302-202311

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iXEBM15202302-202311

main04948-V2010iXEBM1#202311

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iXEBM1#202311

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iXEBM1#202311

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iXEBM1#202311

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iXEBM1#202311

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14212×4iXEBM1#202311

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iXEBM1#202311

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iXEBM15202302-202311

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42110iXEBM1#202311

main47821-46010iXEBM15..L202403

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42100iXEBM15202302-202311

main47822-46010iXEBM15..L202403

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42100iXEBM1#202311

main47830-46010iXEBM15..L202403

47831PISTON, REAR DISC BRAKE

main47831-58040×2iXEBM15202302-202311

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42090iXEBM1#202311

main47850-46010iXEBM15..L202403

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270×4iXEBM15202302-202311

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-42040iXEBM1#202311

47882COVER, DISC BRAKE DUST, REAR LH

main47882-42040iXEBM1#202311

20 parts on this diagram · 2 diagrams in section
