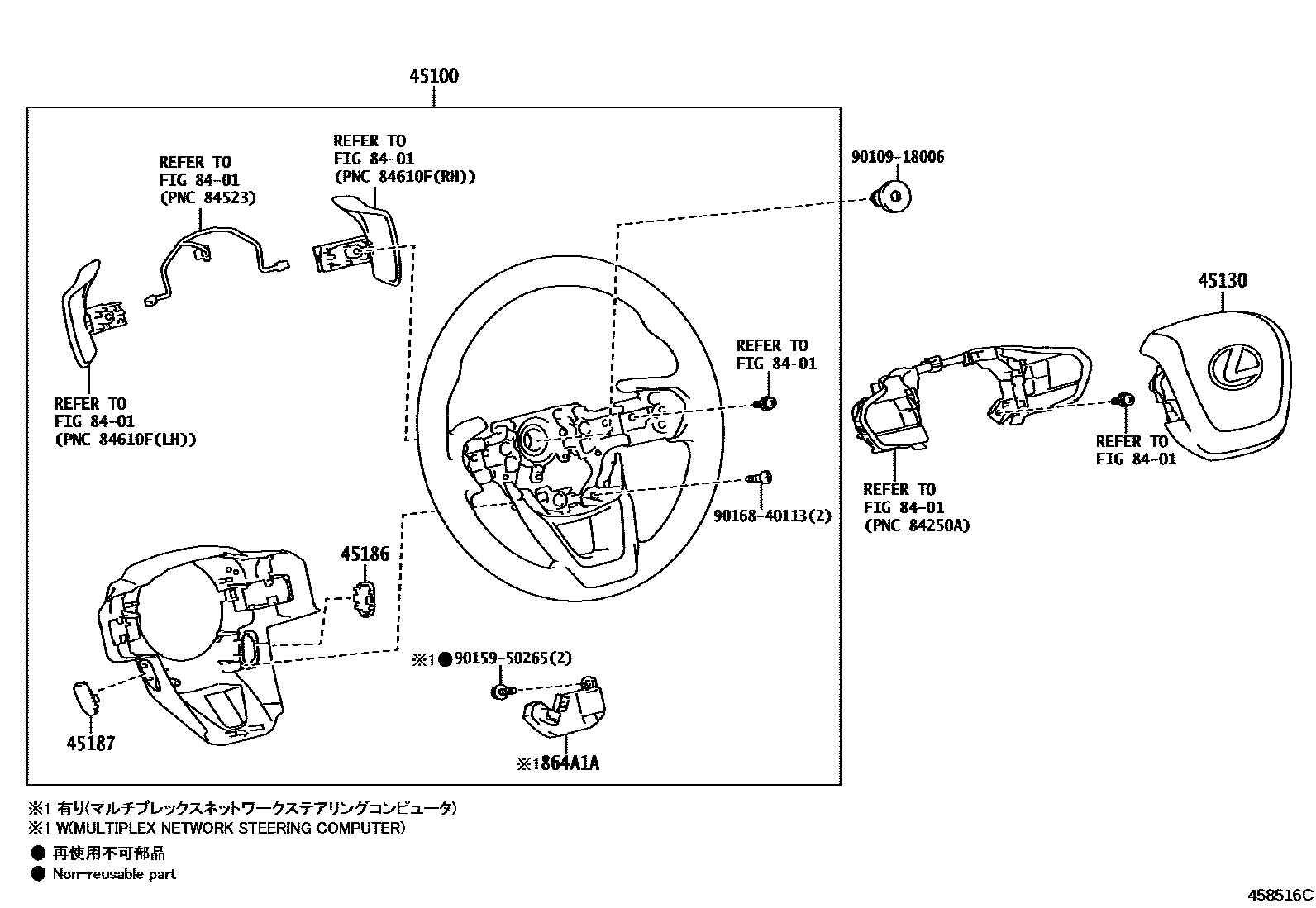

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48820-C0supersedes 45100-48800-C0iXEBM15..C; XEBM15..L202302-202305

main45100-48821-C0supersedes 45100-48800-C0iXEBM1#..C; XEBM1#..L202311

main45100-46120-C0iXEBM15..L202302-202305

main45100-46121-C0iXEBM15..L202306-202311

main45100-46140-C0iXEBM15..L202403

45130BUTTON ASSY, HORN

main45130-78080-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-78010-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-78010-C0iXEBM10;XEBM15..C; XEBM15..L202311

BLACK,TRIM1#,2#,4#,8#; BLACK,TRIM1#,4#,8#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78040supersedes 864A1-78020iXEBM1#..C; XEBM1#..L202311

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
