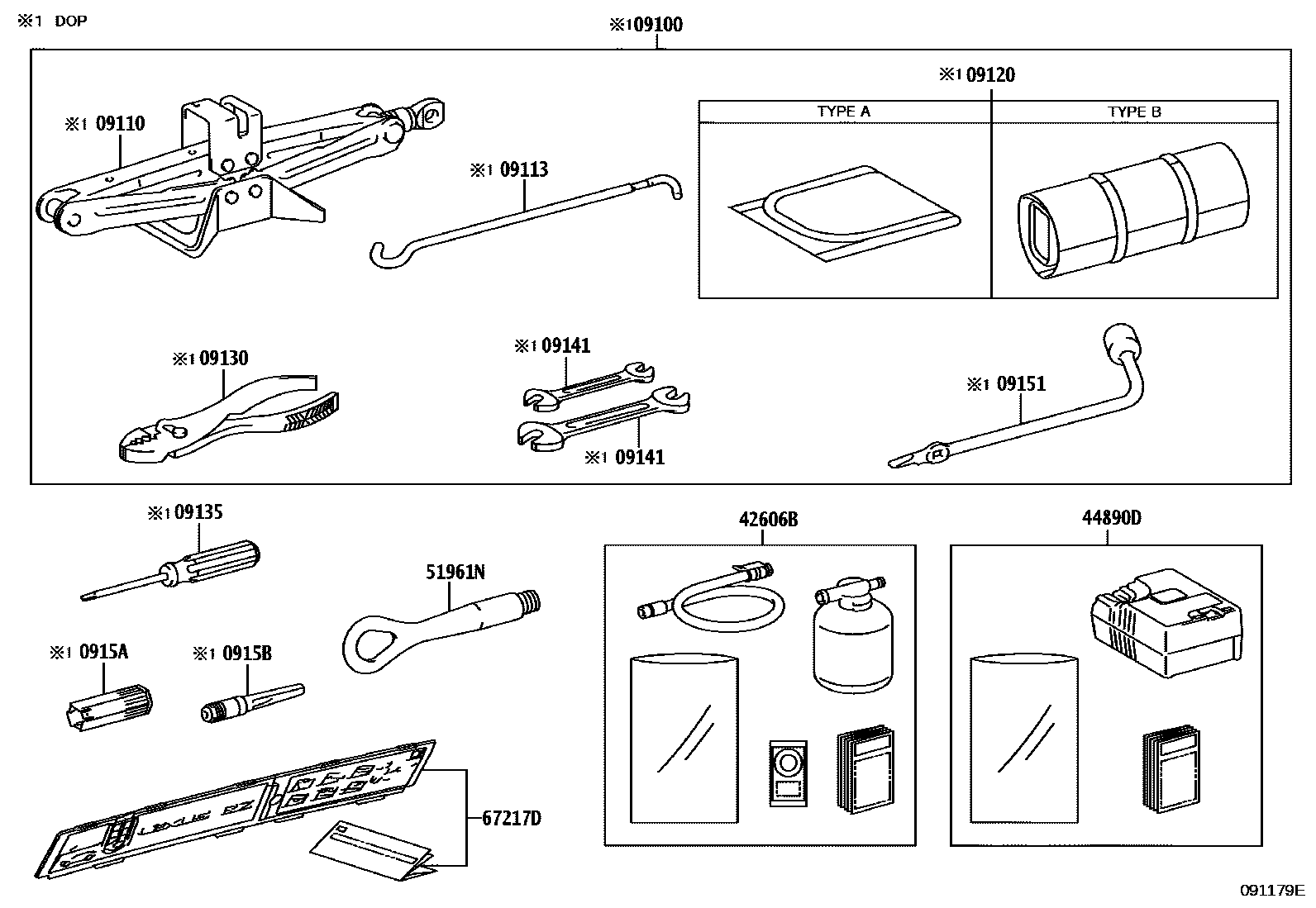

STANDARD TOOL

09100TOOL SET, STANDARD

main09100-46040

09110JACK ASSY

main09111-42070

09113HANDLE, JACK

main09113-42030

09120BAG, TOOL

main09120-48010

main09120-50050

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060

09141SPANNER

main09141-60010

main09141-60020

09151WRENCH, HUB BOLT BOX

main09151-42010

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010

0915BPIN, WHEEL GUIDE

main0915B-53010

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080iXEBM1#202302-202311

44890DCOMPRESSOR ASSY, AIR

main44890-42050iXEBM1#202302-202311

51961NHOOK, TRANSPORT

main51961-46020iXEBM1#202302-202311

67217DSTOPPER, REAR DOOR GLASS

main67217-46010iXEBM1#202302-202311

14 parts on this diagram · 1 diagram in section
