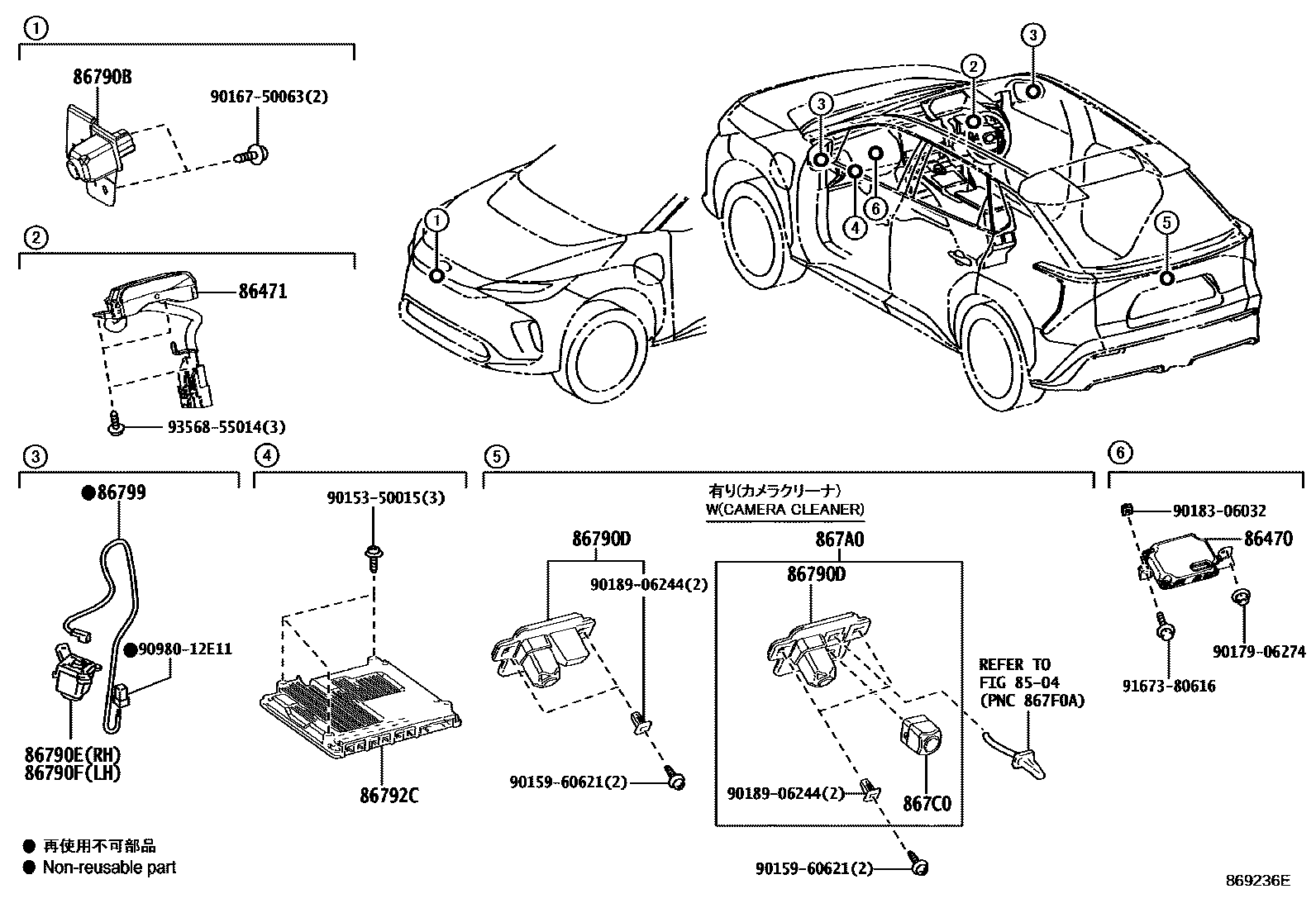

CAMERA & REAR MONITOR DISPLAY

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-42010iXEAM10202304-202311

main86470-42030iXEAM10,YEAM15202412

86471CAMERA, DRIVER MONITOR

main86471-42010iXEAM10,YEAM15202412

86790BCAMERA ASSY, TELEVISION, FR

main86790-42190iXEAM10,YEAM15202203-202311

main86790-42191iXEAM10,YEAM15202311-202410

main86790-42192iXEAM10,YEAM15202412

86790DCAMERA ASSY, TELEVISION, RR

main86790-42170supersedes 86790-42160iXEAM10,YEAM15202203-202311

main86790-42171supersedes 86790-42161iXEAM10,YEAM15202311-202410

main86790-42172supersedes 86790-42162iXEAM10,YEAM15202412

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86795-42020iXEAM10,YEAM15202203-202311

main86795-42021iXEAM10,YEAM15202311-202411

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86795-42010iXEAM10,YEAM15202412

main86795-42011iXEAM10,YEAM15202311-202411

86792CCOMPUTER, PARKING ASSIST

main86792-42300iXEAM10,YEAM15202203-202310

main86792-42301iXEAM10,YEAM15202311-202411

main86792-42800iXEAM10,YEAM15202412

86799WIRE, TELEVISION CAMERA

main86799-42040×2iXEAM10,YEAM15202412

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-42010iXEAM10,YEAM15202203-202311

main867A0-42011iXEAM10,YEAM15202311-202410

main867A0-42012iXEAM10,YEAM15202412

867C0CAMERA ASSY, INNER MIRROR

main867C0-42050iXEAM10,YEAM15202412

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9017906274

main90179-06274

9018306032

main90183-06032

9018906244

main90189-06244

9098012E11

main90980-12E11

9167380616

main91673-80616

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
