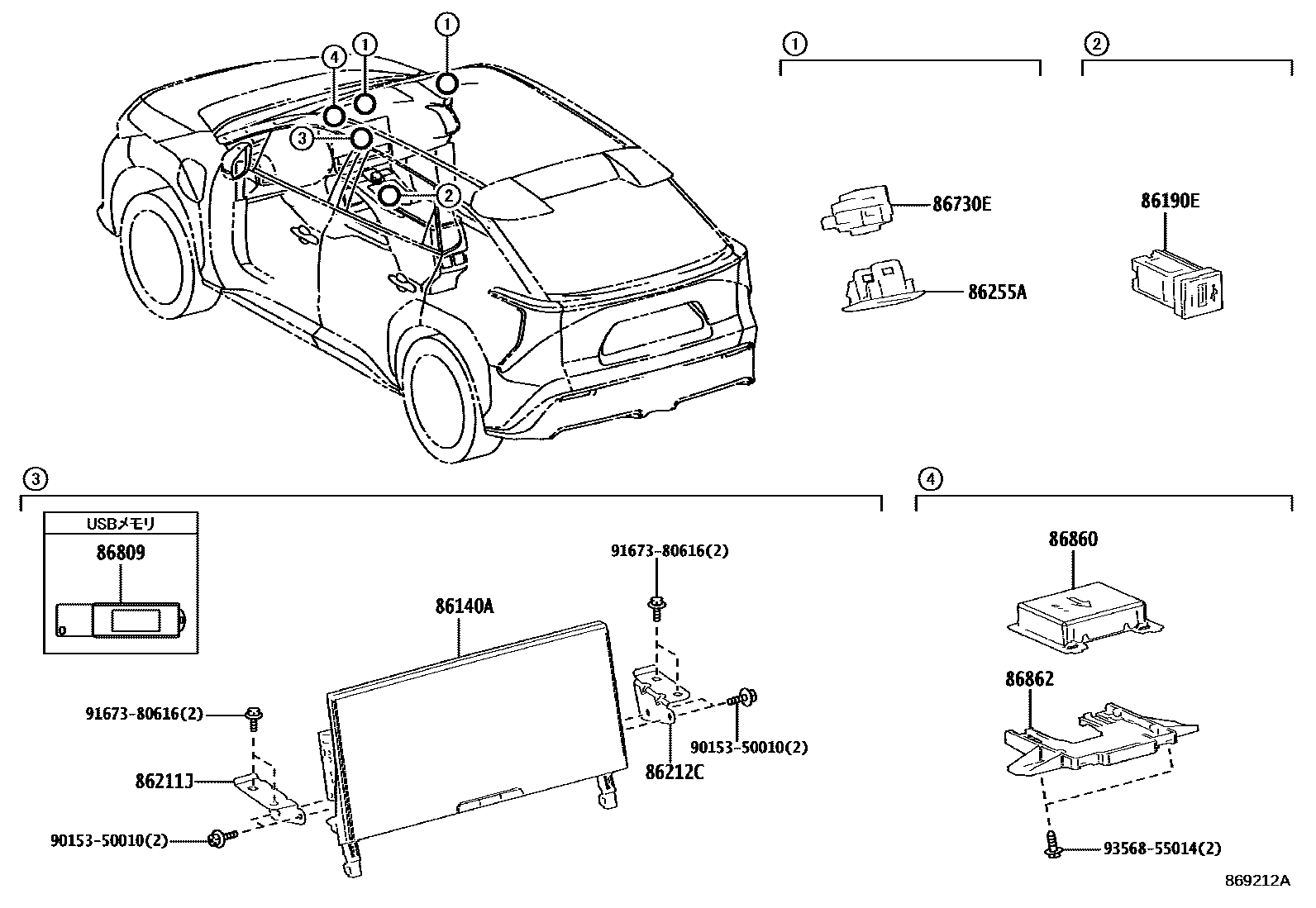

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-42330iXEAM10,YEAM15..G202203-202204

main86100-42331iXEAM10,YEAM15..G202204-202211

main86100-42332iXEAM10,YEAM15..G202212-202304

main86100-42340iXEAM10,YEAM15..Z202203-202204

main86100-42341iXEAM10,YEAM15..Z202204-202211

main86100-42342iXEAM10,YEAM15..Z202212-202304

main86100-42B60iXEAM10,YEAM15..G202304-202408

main86100-42B61iXEAM10,YEAM15..G202412

main86100-42B70iXEAM10,YEAM15..Z202304-202408

main86100-42B71iXEAM10,YEAM15..Z202412

86190EADAPTER ASSY, STEREO JACK

main86190-34010iXEAM10,YEAM15202412

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-42150iXEAM10,YEAM15202412

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-42150iXEAM10,YEAM15202412

86255ACASE, MICROPHONE, NO.1

main86255-42010-C0×2iXEAM10,YEAM15..G; XEAM10,YEAM15..Z202203-202411

BLACK,TRIM1#,2#; BLACK,TRIM2#

86730EMICROPHONE ASSY

main86730-42100×2iXEAM10,YEAM15202203-202411

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-42010iXEAM10,YEAM15202203-202303

main86809-42011iXEAM10,YEAM15202304-202310

main86809-42012iXEAM10,YEAM15202311-202405

main86809-42013iXEAM10,YEAM15202406-202410

main86809-42014iXEAM10,YEAM15202412-202504

86860ANTENNA ASSY, NAVIGATION

main86880-52030iXEAM10,YEAM15202412

86862BRACKET, NAVIGATION ANTENNA

main86862-42020iXEAM10,YEAM15202412

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
