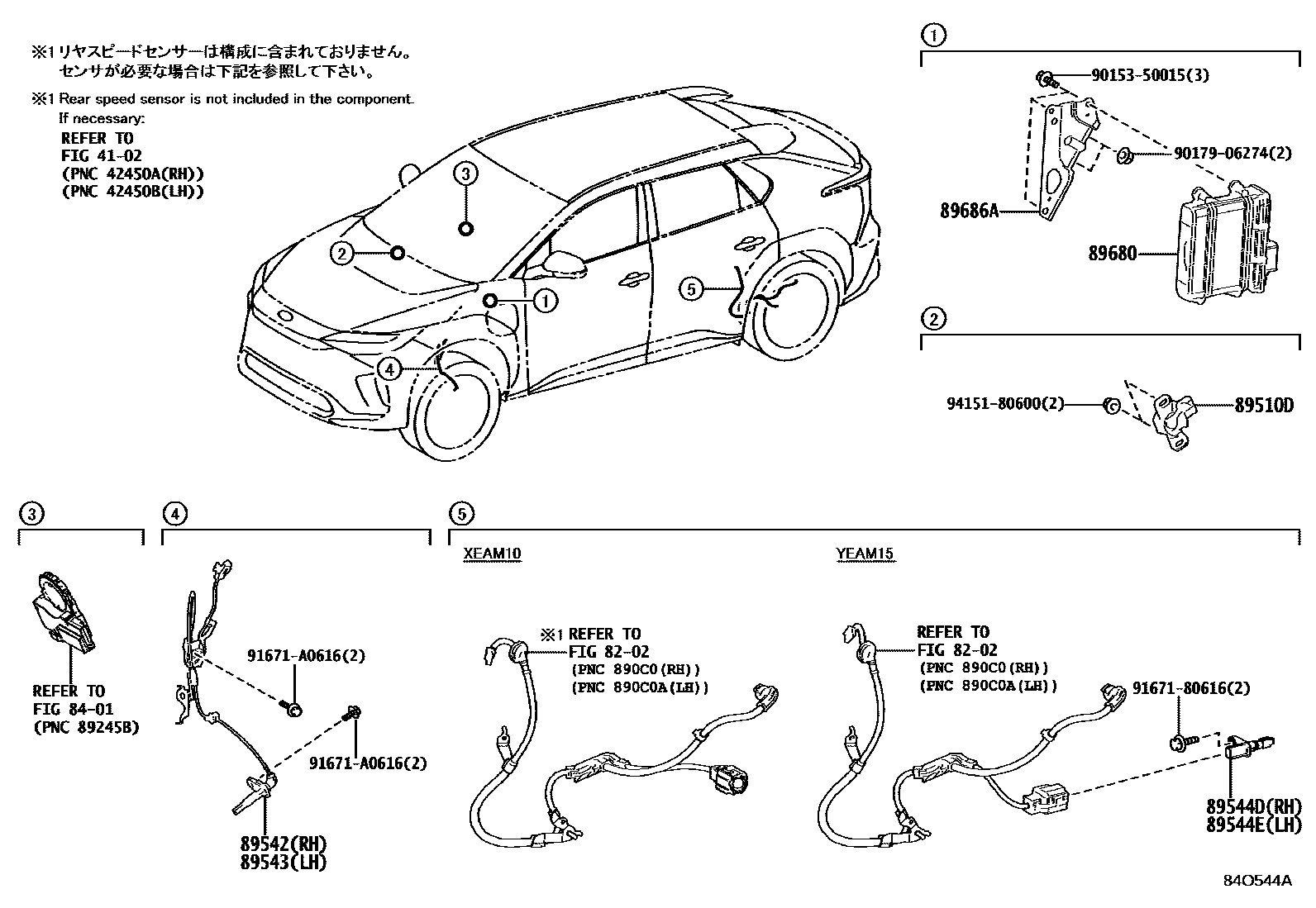

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42020iXEAM10,YEAM15202412

89542SENSOR, SPEED, FRONT RH

main89542-42090iXEAM10,YEAM15202412

89543SENSOR, SPEED, FRONT LH

main89543-42090iXEAM10,YEAM15202412

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050iYEAM15202412

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050iYEAM15202412

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iXEAM10,YEAM15..Z202412

main89680-48030iXEAM10,YEAM15..G202412

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-42010iXEAM10,YEAM15202412

9015350015

main90153-50015

9017906274

main90179-06274

9167180616

main91671-80616

91671A0616

main91671-A0616

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
