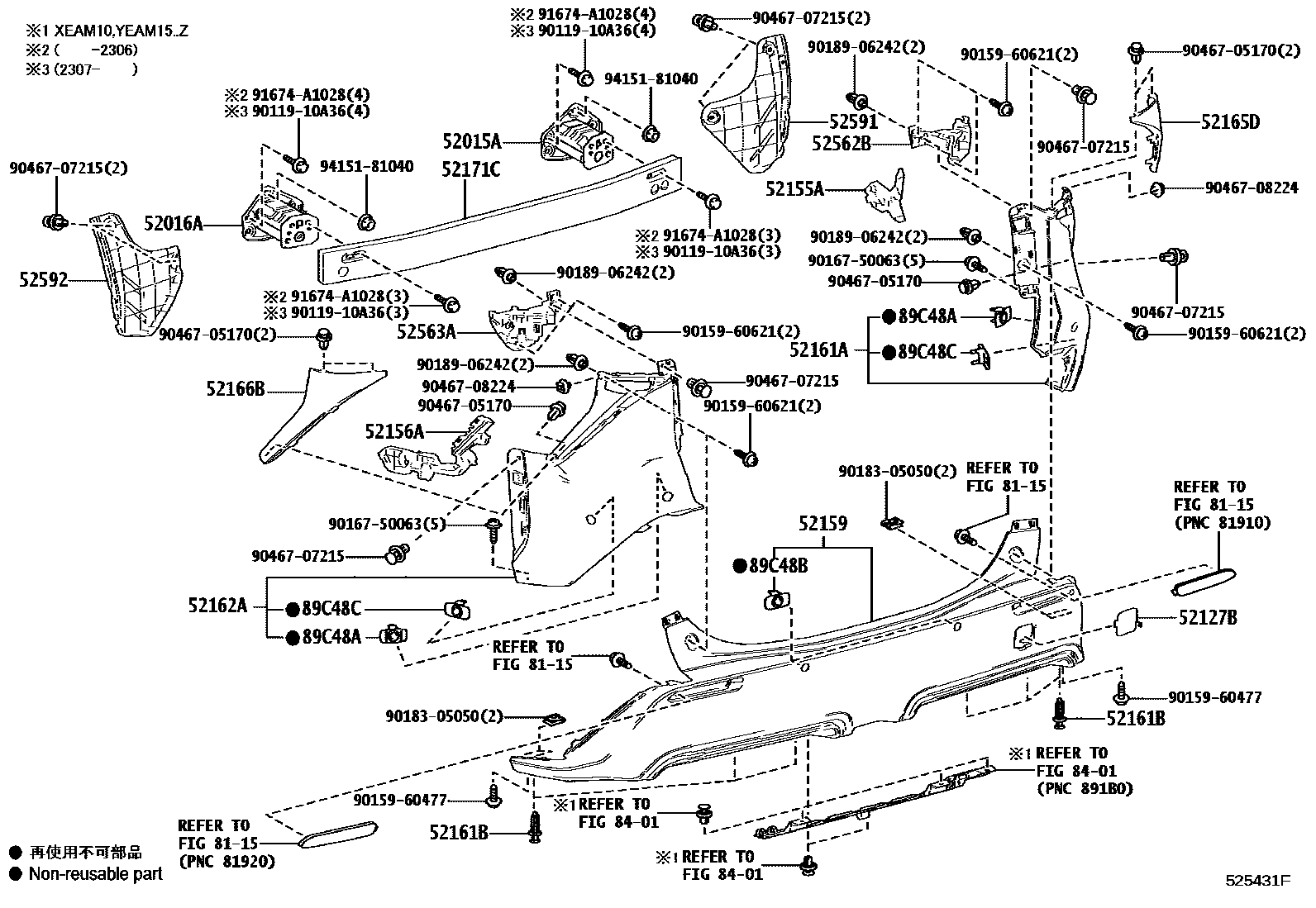

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52127BCOVER, REAR BUMPER HOLE, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52161APIECE, REAR BUMPER, RH
PLATINUM WHITE PEARL MC.,089 ,2VP
PRECIOUS SILVER,1J6 ,2MR
PRECIOUS METAL,1L5 ,2WC
BLACK,202
EMOTIONAL RED 2,2TB ,3U5
DK.BLUE MC.,2MT ,8S6
52161BPIECE, REAR BUMPER
52162APIECE, REAR BUMPER, LH
PLATINUM WHITE PEARL MC.,089 ,2VP
PRECIOUS SILVER,1J6 ,2MR
PRECIOUS METAL,1L5 ,2WC
BLACK,202
EMOTIONAL RED 2,2TB ,3U5
DK.BLUE MC.,2MT ,8S6
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52171CREINFORCEMENT, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
8115REFLEX REFLECTOR
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9011910A36
main90119-10A36
9015960477
main90159-60477
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906242
main90189-06242
9046705170
main90467-05170
9046707215
main90467-07215
9046708224
main90467-08224
91674A1028
main91674-A1028
9415181040
main94151-81040
32 parts on this diagram · 1 diagram in section
