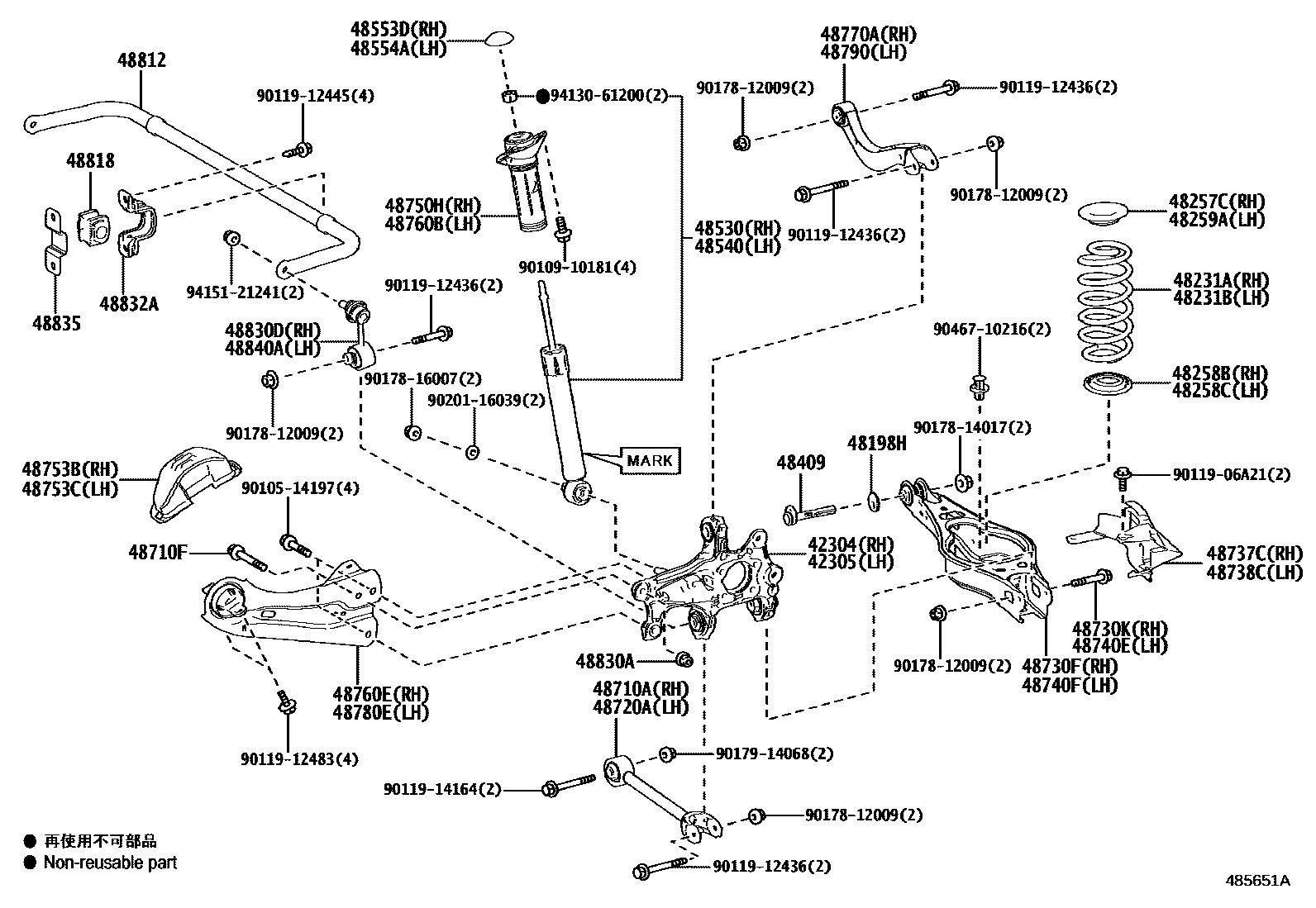

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48737CCOVER, LOWER CONTROL ARM, RH NO.2
48738CCOVER, LOWER CONTROL ARM, LH NO.2
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9010514197
main90105-14197
9010910181
main90109-10181
9011906A21
main90119-06A21
9011912436
main90119-12436
9011912445
main90119-12445
9011912483
main90119-12483
9011914164
main90119-14164
9017812009
main90178-12009
9017814017
main90178-14017
9017816007
main90178-16007
9017914068
main90179-14068
9020116039
main90201-16039
9046710216
main90467-10216
9413061200
main94130-61200
9415121241
main94151-21241
53 parts on this diagram · 1 diagram in section
