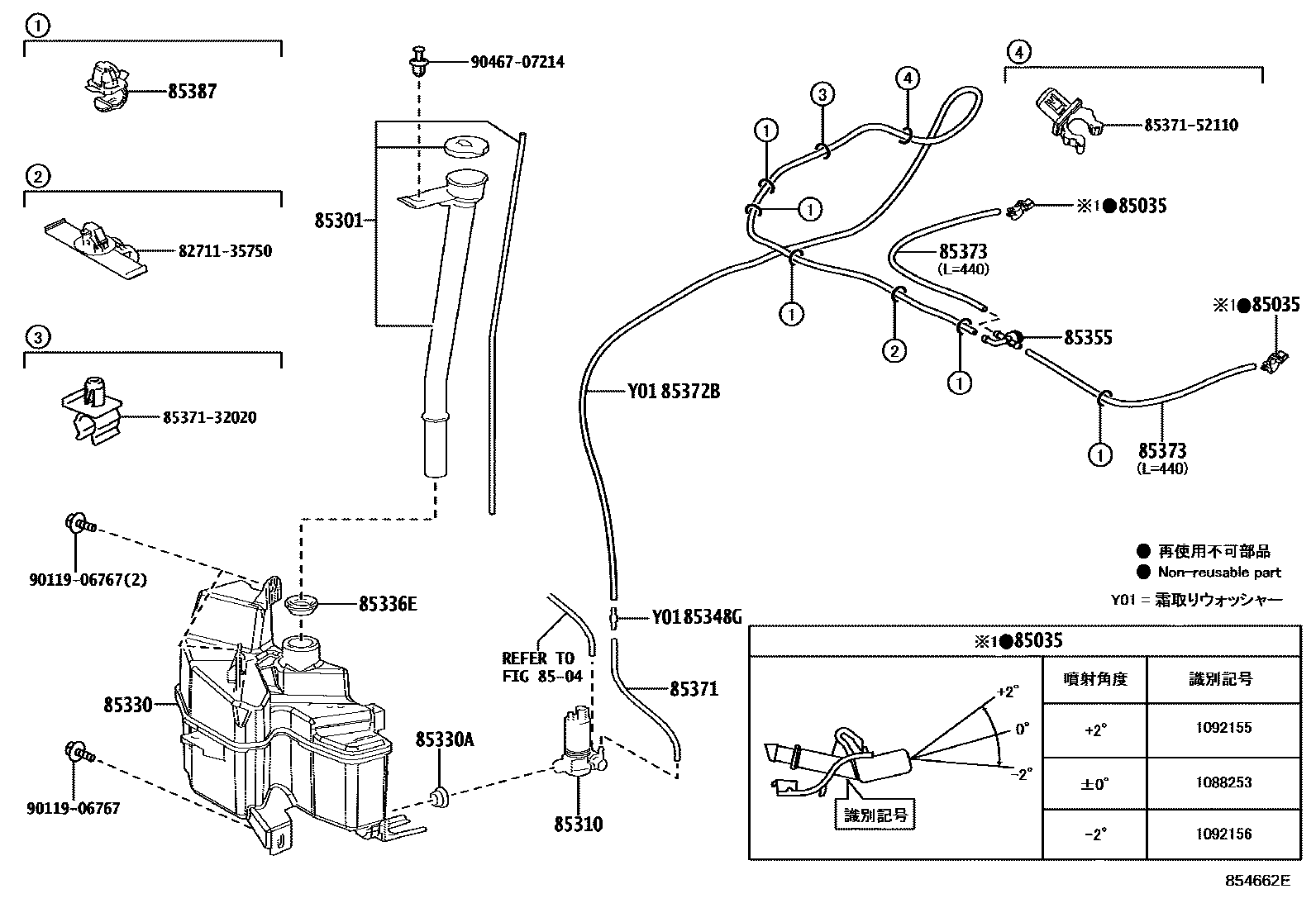

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16120×2iMXGA10,ZVG1#202310

main85381-16130×2iMXGA10,ZVG1#202310

main85381-16140×2iMXGA10,ZVG1#202310

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-16010iZSG10,ZVG1#202108-202310

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-16190iZSG10,ZVG1#202108-202302

main85330-16200iMXGA10,ZVG1#202310

85330JAR ASSY, WINDSHIELD WASHER

main85315-16230iMXGA10,ZVG1#202310

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012iZSG10,ZVG1#202108-202303

main90069-50016iZSG10,ZVG1#202303-202310

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-16230iZSG10,ZVG1#202108-202303

main85336-48330iMXGA10,ZVG1#202310

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02650iMXGA10,ZVG1#202310

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650iMXGA10,ZVG1#202310

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46210iMXGA10,ZVG1#202310

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46230iMXGA10,ZVG1#202310

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46210×2iMXGA10,ZVG1#202310

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main90469-07011×5iMXGA10,ZVG1#202310

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9011906767

main90119-06767

9046707214

main90467-07214

18 parts on this diagram · 1 diagram in section
