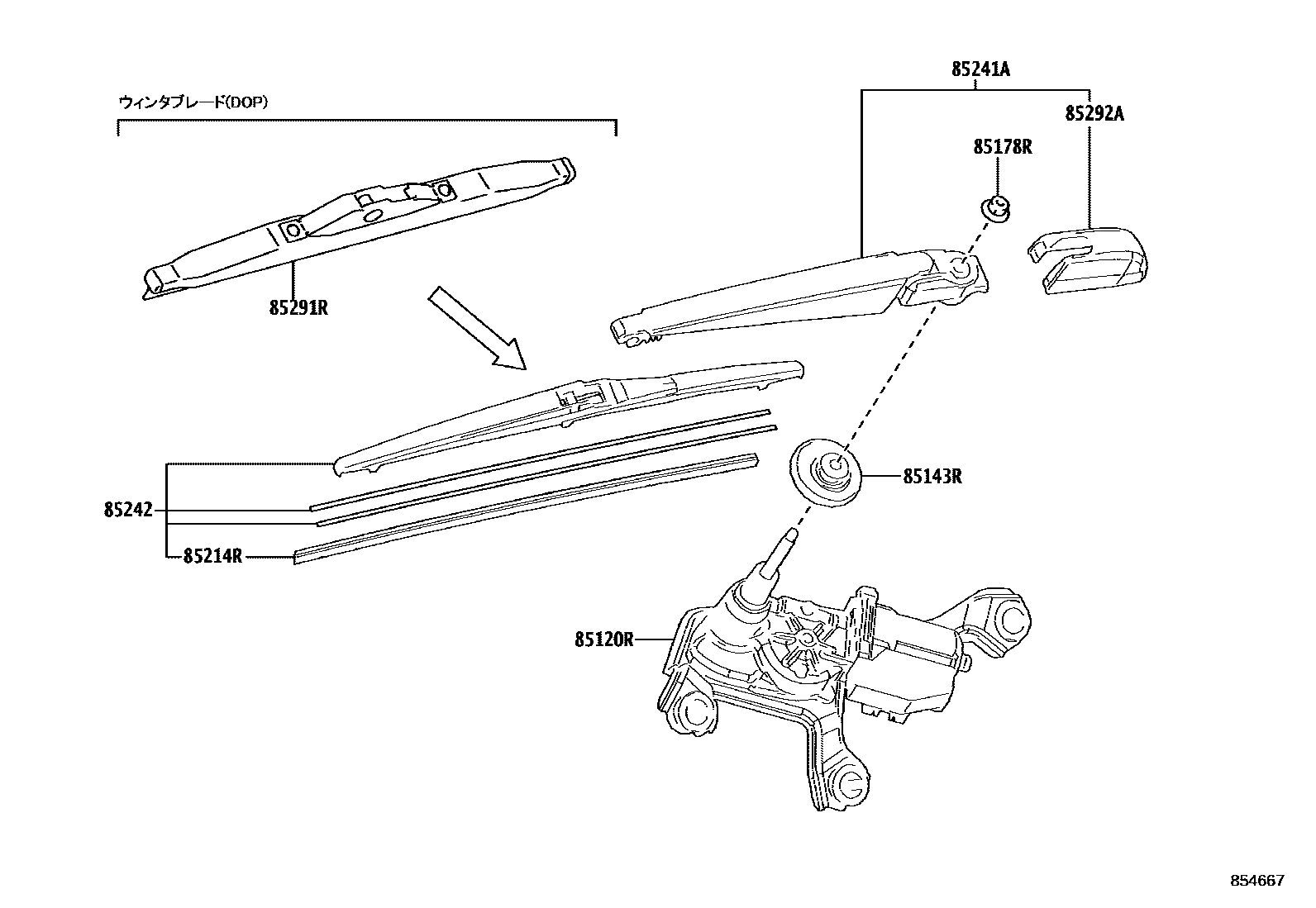

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-16440iMXGA10,ZVG1#202108-202310

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iMXGA10,ZVG1#202108-202310

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMXGA10,ZVG1#202108-202310

85214RRUBBER, REAR WIPER

main85214-42060iMXGA10,ZVG1#202108-202310

85241AARM, REAR WIPER

main85241-16060iMXGA10,ZVG1#202108-202310

85242BLADE, RR WIPER

main85242-K0030iMXGA10,ZVG1#202108-202310

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iMXGA10,ZVG1#202108-202310

8 parts on this diagram · 1 diagram in section
