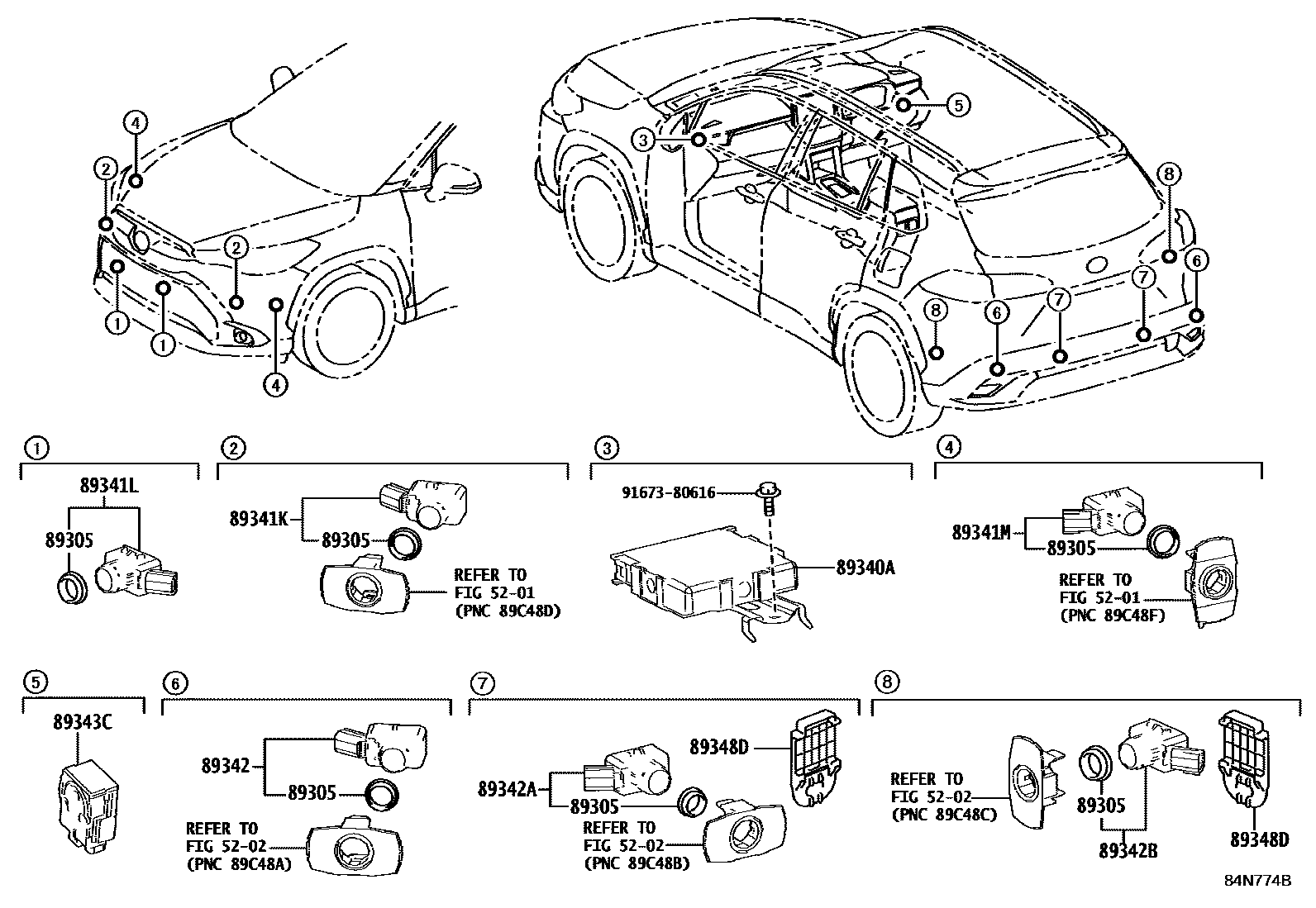

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
SPARKLING BLACK PEARL CS.,220
PLATINUM WHITE PEARL MC.,089 ,2PU
SILVER ME.,1L0
ATTITUDE BLACK MC.,218
RED MC.,2YD ,3T3; RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
DK.BLUE M.M.,2TT ,8W7
MASSIVE GRAY,1L6; MASSIVE GRAY,1L6 ,M10
CEMENT GRAY ME.,1H5
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
89342SENSOR, ULTRASONIC, REAR CORNER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
89342ASENSOR, ULTRASONIC, REAR CENTER
DUMMY-MAT BLACK
DUMMY-MAT BLACK
89342BSENSOR, ULTRASONIC, REAR SIDE
89343CBUZZER, CLEARANCE WARNING, NO.1
89348DCLIP, ULTRASONIC SENSOR
9167380616
main91673-80616
13 parts on this diagram · 1 diagram in section
