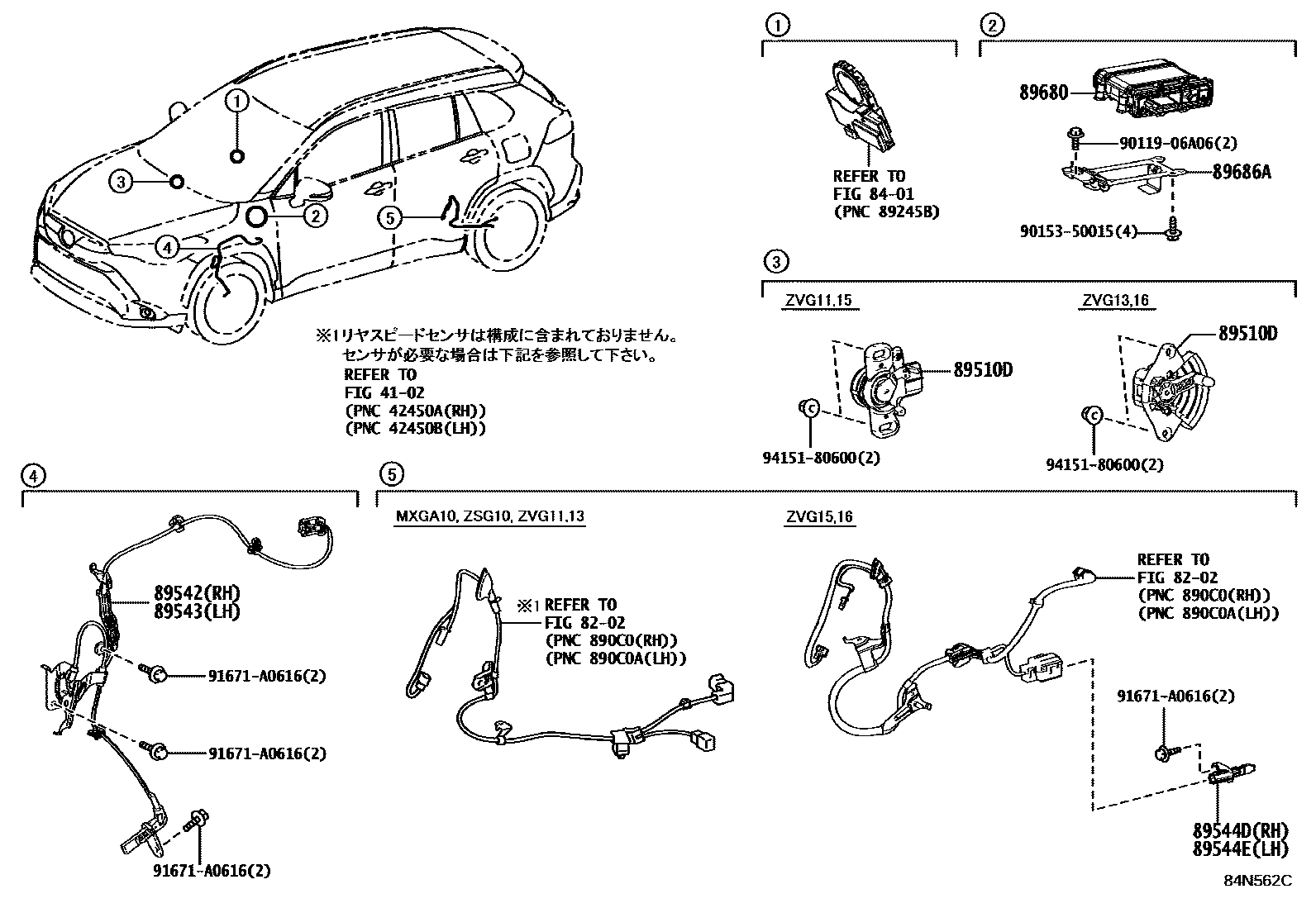

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZVG1#202108-202310

main89510-K0021iZVG1#202310

89542SENSOR, SPEED, FRONT RH

main89542-12130iZSG10,ZVG1#202108-202310

main89542-12150iMXGA10,ZVG1#202310

89543SENSOR, SPEED, FRONT LH

main89543-12130iZSG10,ZVG1#202108-202310

main89543-12150iMXGA10,ZVG1#202310

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050iZVG16202310

main89544-F4020iZVG15202108-202310

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050iZVG16202310

main89544-F4020iZVG15202108-202310

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iZVG1#202310

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-12010iZVG1#202310

9011906A06

main90119-06A06

9015350015

main90153-50015

91671A0616

main91671-A0616

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
