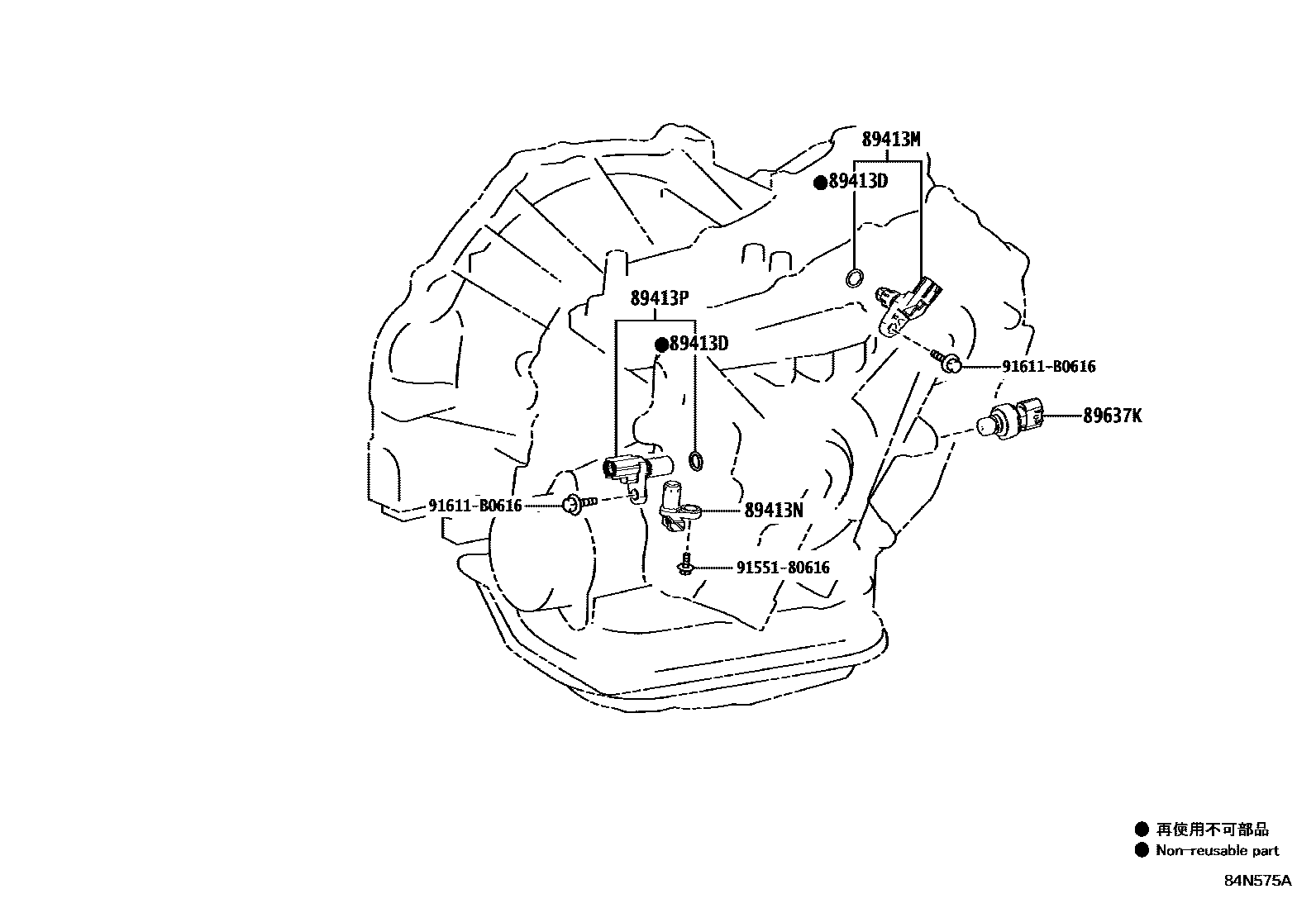

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K313 0002 1K121

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iMXGA10202310

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12020iZSG10202108-202310

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12010iMXGA10202310

main89413-50020iZSG10202108-202310

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60021iZSG10202108-202310

89637KSENSOR, OIL PRESSURE

main89637-12040iMXGA10202310

main89637-63010iZSG10202108-202310

9155180616

main91551-80616

91611B0616

main91611-B0616

7 parts on this diagram · 2 diagrams in section
