LOCK CYLINDER SET

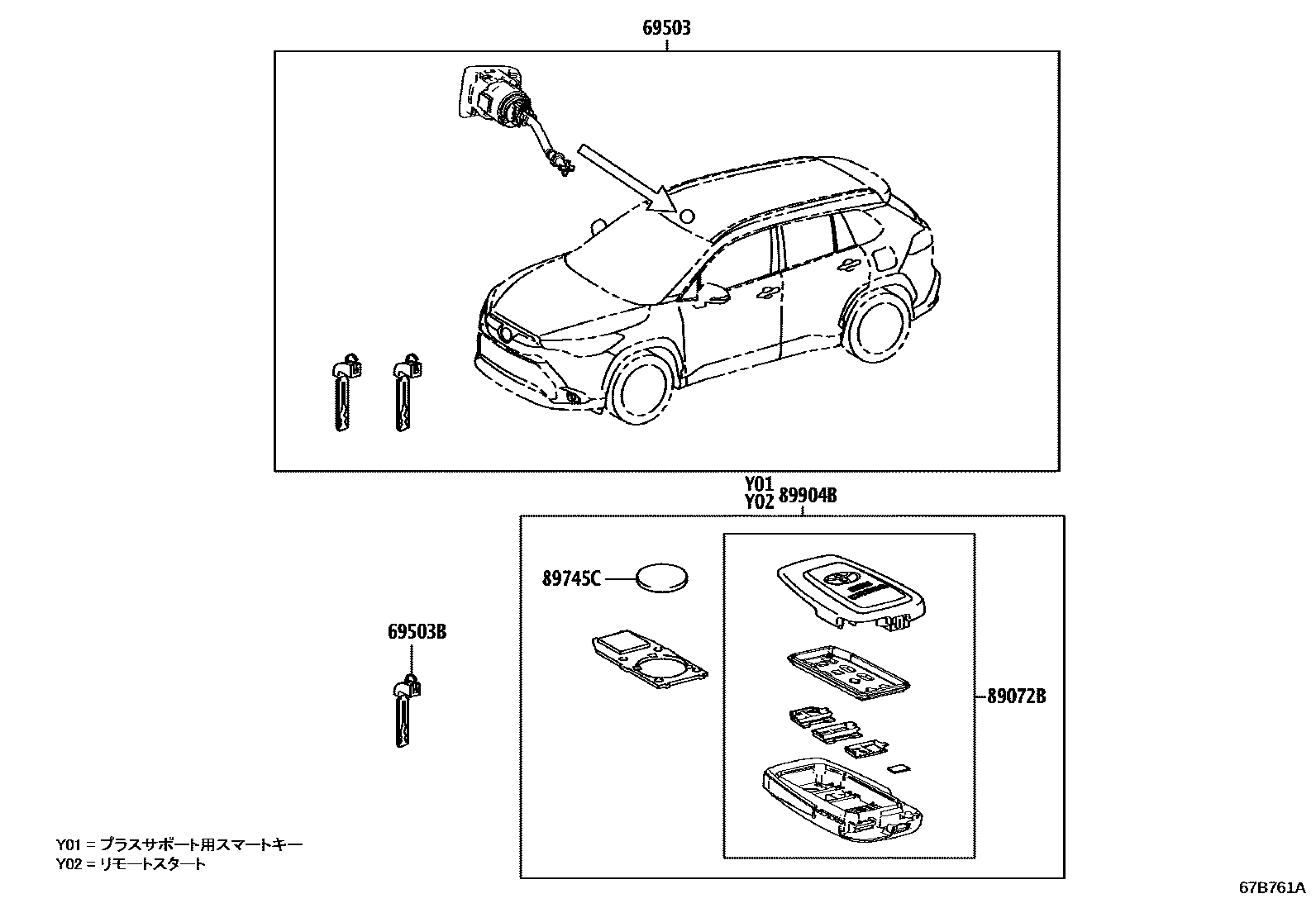

Parts diagram

69503CYLINDER SET, LOCK

main69005-16A00i202108-202310

main69005-16A30i202310

69503BKEY, CUT

main69515-16100×2i202108-202310

main69515-K0010×2i202310

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-16090×2i202108-202310

main89072-16100×2i202108-202310

main89072-52840×2i202310

main89072-K0010×2i202310

89745CBATTERY, TRANSMITTER

main89745-50020i202108-202310

main89745-K0010i202310

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-16200×2i202108-202310

main8990H-16210×2i202108-202310

main8990H-52160i202310-202312

main8990H-52161i202401

main8990H-52410i202310-202312

main8990H-52411i202401

5 parts on this diagram · 2 diagrams in section
