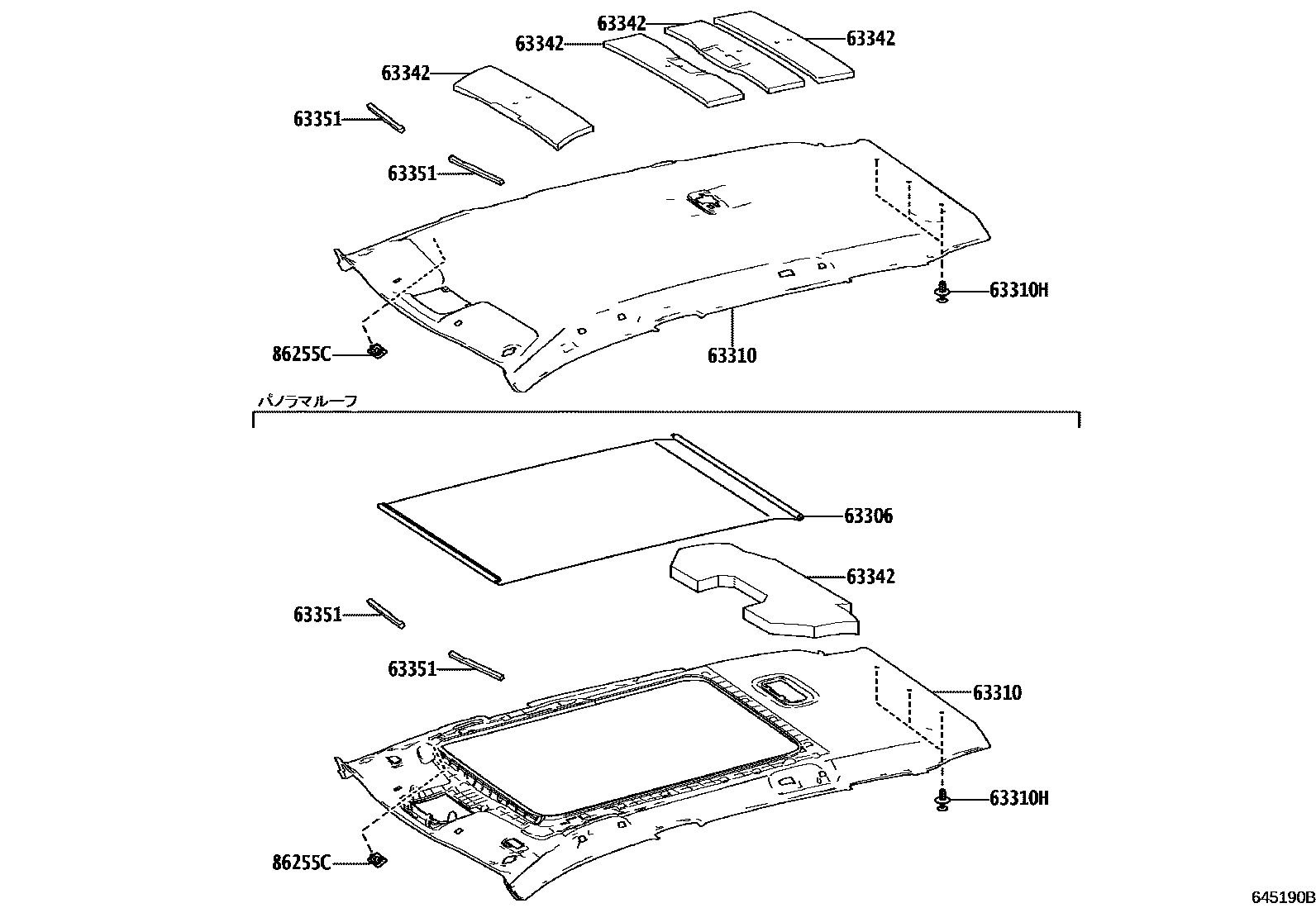

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-16050-C1iMXGA10,ZVG1#..Z; ZVG1#..S202310

63310HEADLINING ASSY, ROOF

main63310-16510-C0iZSG10,ZVG1#..G202108-202310

BLACK,TRIM1#,2#

main63310-16610-C0iMXGA10,ZVG1#..G202310

BLACK,TRIM2#

main63310-16540-C0supersedes 63310-16530-C0iZSG10,ZVG1#..S,Z202108-202207

main63310-16570-C0supersedes 63310-16550-C0iMXGA10,ZVG1#..Z; ZVG1#..S202310

main63310-16590-C0iZSG10,ZVG1#..G202108-202207

63310HCLIP(FOR ROOF HEADLINING)

main90467-05168-C0×3iMXGA10,ZVG1#..G,S; MXGA10,ZVG1#..Z202310

BLACK,TRIM2#; BLACK,TRIM2#,8#

63342PAD, ROOF SILENCER, NO.2

main63342-16030×4iMXGA10,ZVG1#202310

main63342-16040iMXGA10,ZVG1#..S,Z202310

63351SILENCER, ROOF SIDE

main63351-16030×2iZSG10,ZVG1#202108-202310

86255CCASE, MICROPHONE, RH

main86255-42010-C0iMXGA10,ZVG1#..G,S; MXGA10,ZVG1#..Z202310

BLACK,TRIM2#; BLACK,TRIM2#,8#

main86255-78010-C1iZSG10,ZVG1#202108-202207

BLACK,TRIM1#,2#

6 parts on this diagram · 2 diagrams in section
