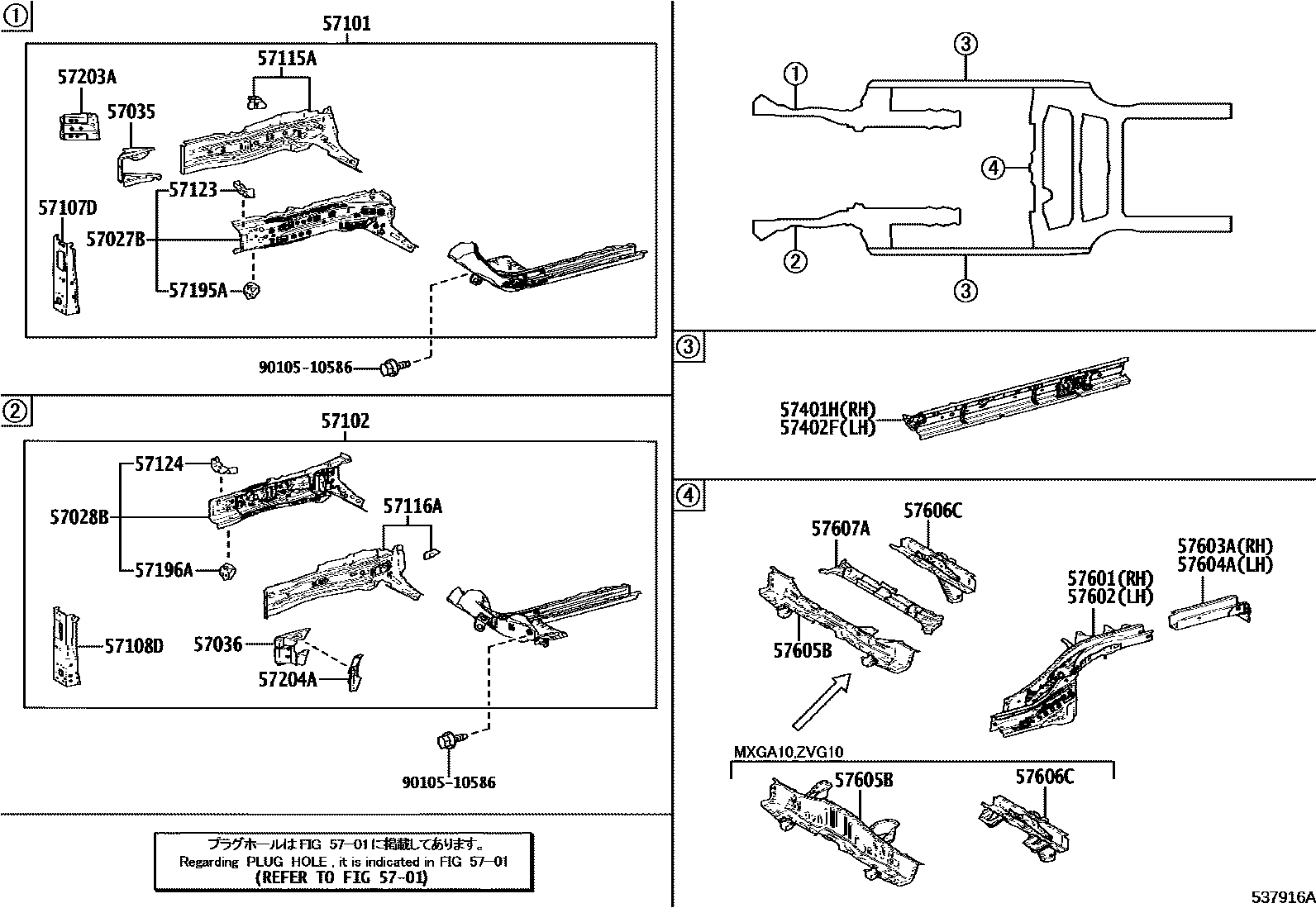

FLOOR SIDE MEMBER
5701HOLE PLUG
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57035PANEL SUB-ASSY, FRONT STEP, RH
57036PANEL SUB-ASSY, FRONT STEP, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
9010510586
main90105-10586
27 parts on this diagram · 2 diagrams in section
