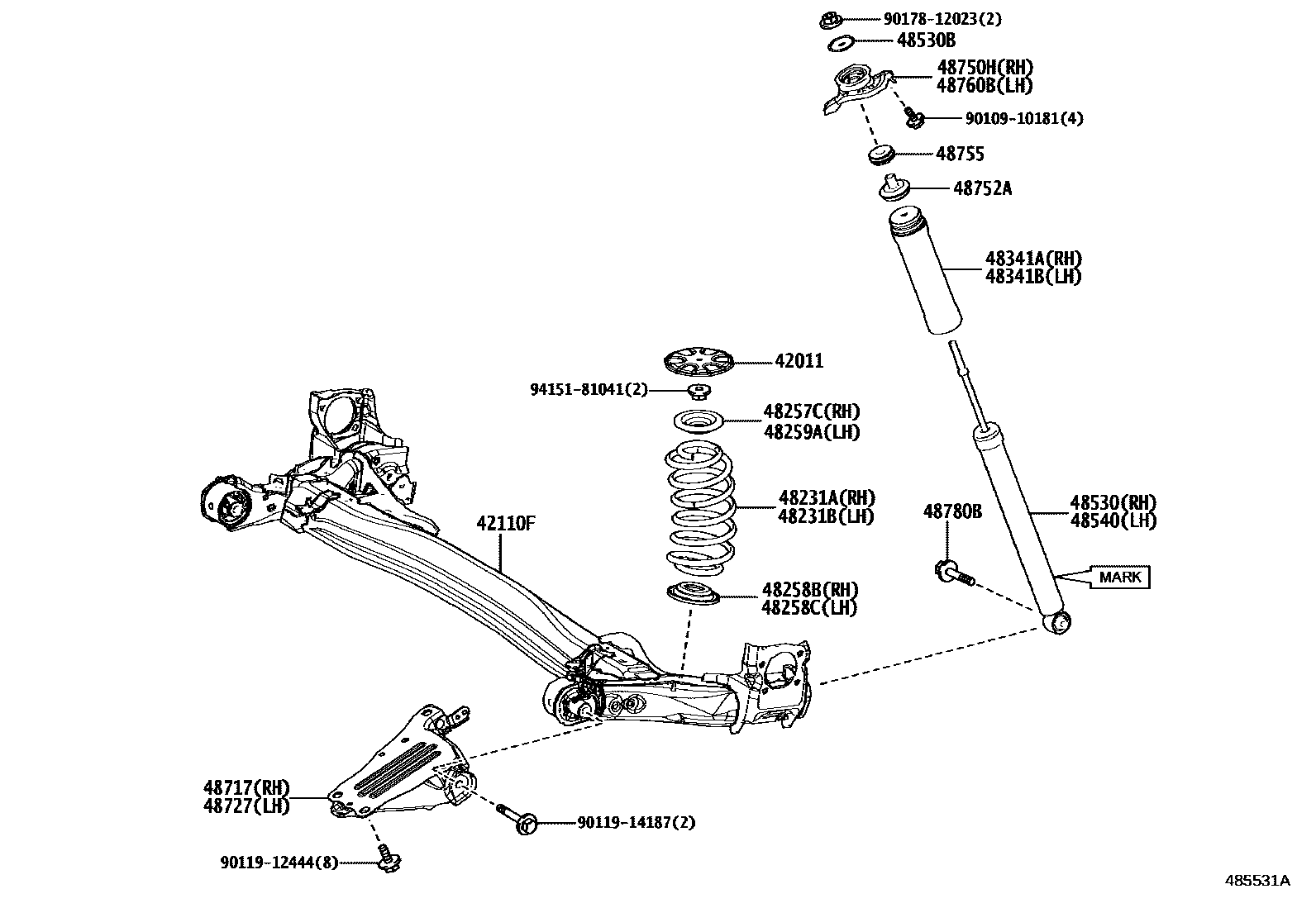

REAR SPRING & SHOCK ABSORBER
42011SEAT SUB-ASSY, REAR SPRING
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
48727BRACKET, REAR SUSPENSION ARM, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48780BBOLT(FOR STRUT ROD)
9010910181
main90109-10181
9011912444
main90119-12444
9011914187
main90119-14187
9017812023
main90178-12023
9415181041
main94151-81041
25 parts on this diagram · 4 diagrams in section
