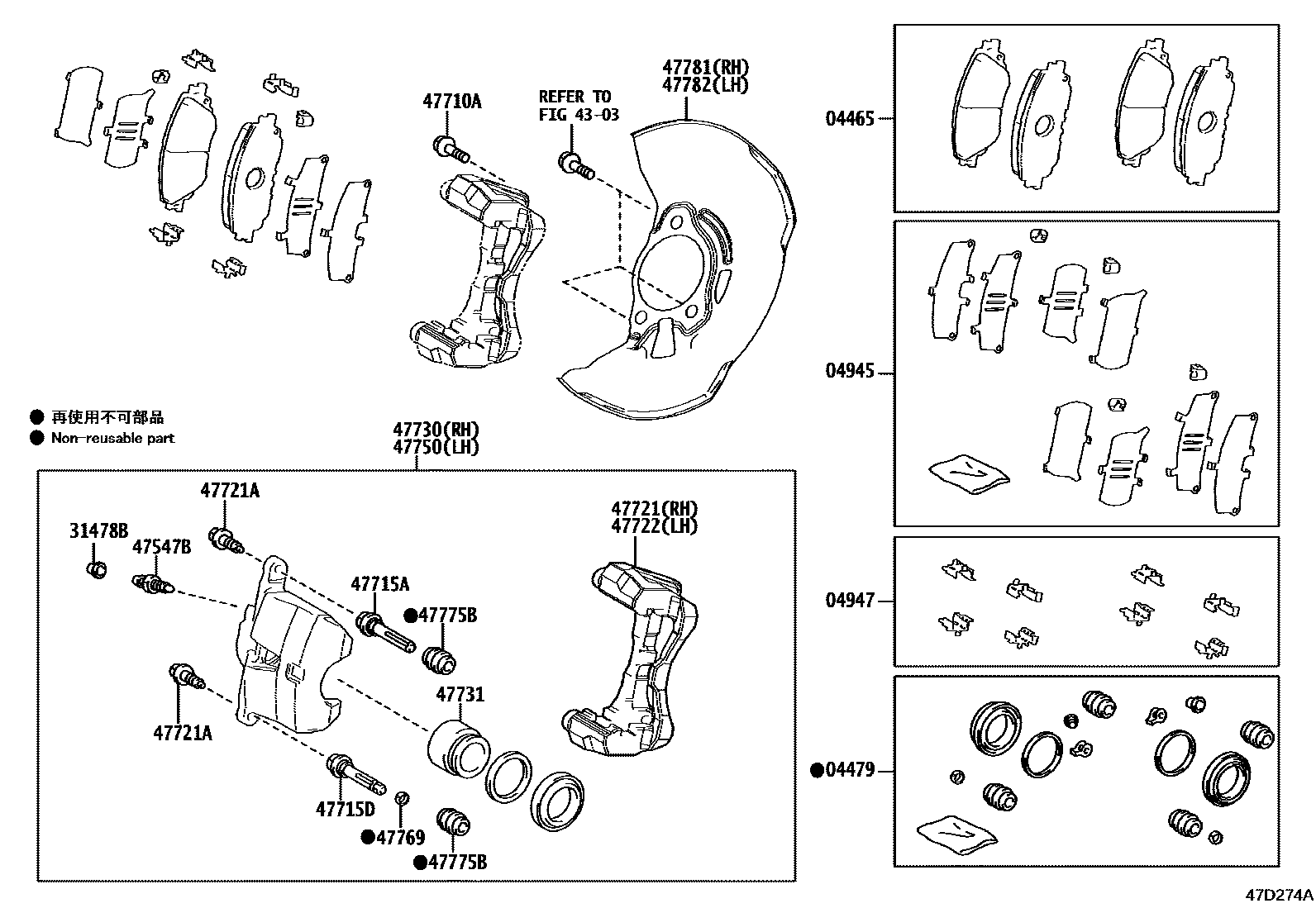

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-16130i202108-202310

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160i202108-202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300i202108-202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030i202108-202310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i202108-202310

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i202108-202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i202108-202310

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190i202108-202310

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10i202108-202310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-76010i202108-202310

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164i202108-202310

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-76010i202108-202310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-76010i202108-202310

47731PISTON, FRONT DISC BRAKE

main47731-12A10i202108-202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-76010i202108-202310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i202108-202310

47775BBOOT, BUSH DUST, NO.1

main47775-52190i202108-202310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080i202108-202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080i202108-202310

20 parts on this diagram · 1 diagram in section
