Toyota COROLLA CROSS — STEERING COLUMN & SHAFT

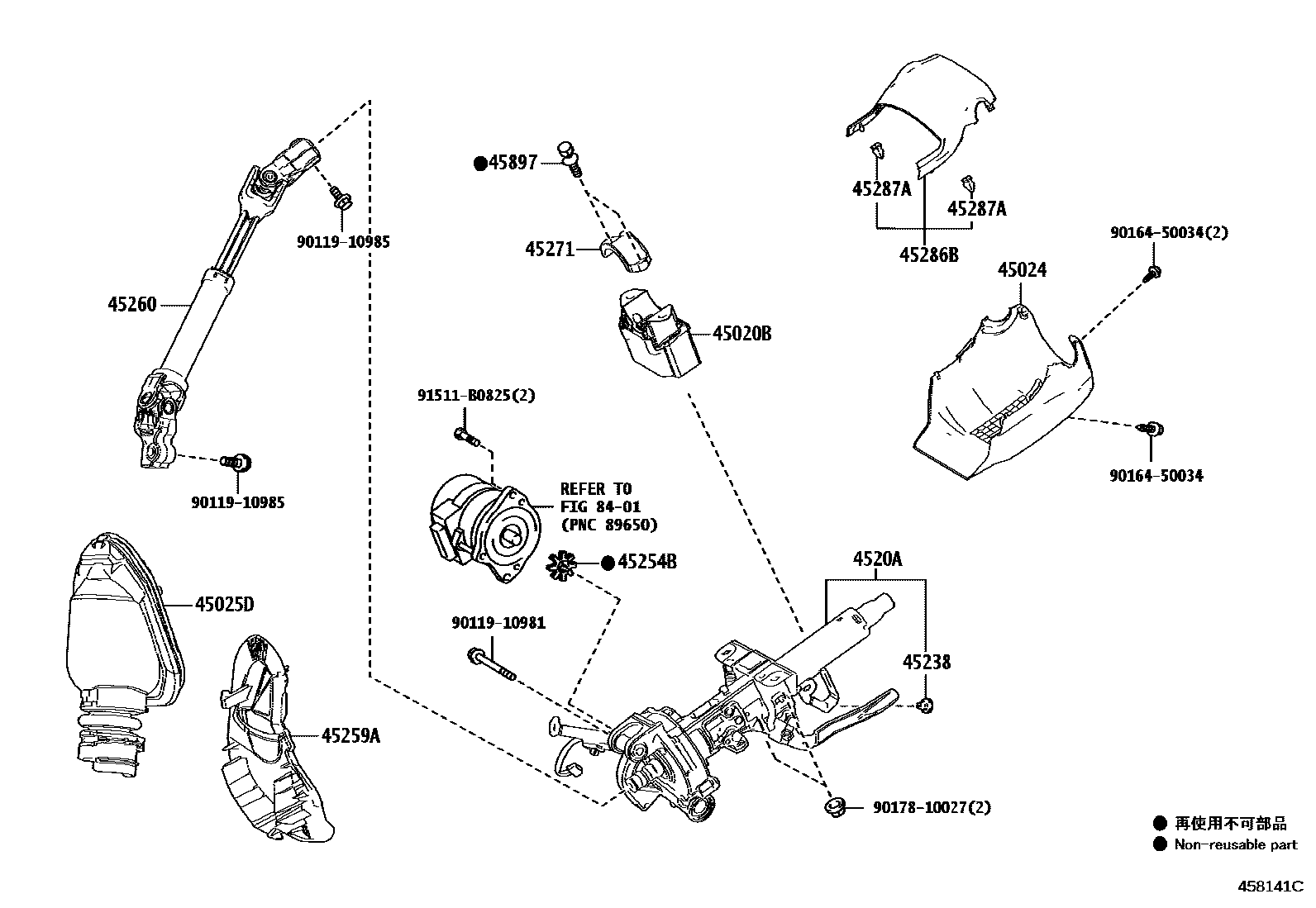

Parts diagram

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

45259ASHEET, COLUMN HOLE COVER SILENCER

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

45271CLAMP, STEERING COLUMN, UPPER

45286BCOVER, STEERING COLUMN, UPR

45287ACLIP(FOR STEERING COLUMN COVER)

45897BOLT, STEERING LOCK SET

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910981

9011910985

9016450034

9017810027

91511B0825

18 parts on this diagram · 2 diagrams in section

STEERING COLUMN & SHAFT for Toyota COROLLA CROSS

This section contains 19 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota COROLLA CROSS. Key components include: ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK, COVER SUB-ASSY, STEERING COLUMN, LOWER, COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COLUMN SUB-ASSY, ELECTRIC POWER STEERING, CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING).
