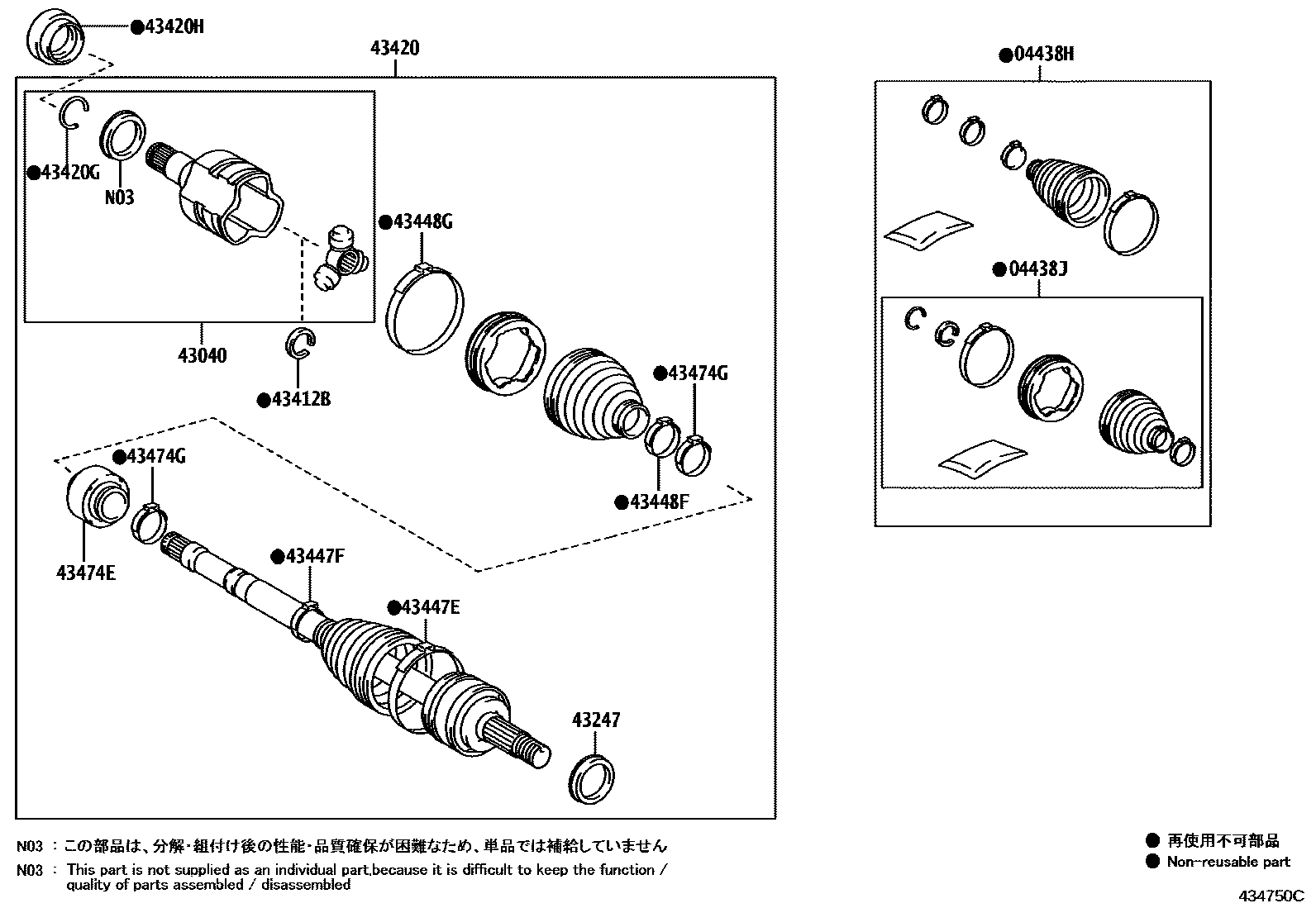

FRONT DRIVE SHAFT

0001 1������� 0002 1������ 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-10021iZVG1#202108-202310

main04428-10031iZSG10202108-202310

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-10020iZSG10202108-202310

main04438-10120iMXGA10,ZVG1#202310

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-12120iZSG10202108-202310

main43040-12170iMXGA10,ZVG1#202310

main43040-47030iZVG1#202108-202310

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010×2iMXGA10,ZVG1#202310

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-12070iMXGA10,ZVG1#202310

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-10290iZVG1#202108-202310

main43420-12B20iZSG10202108-202310

main43420-16340iZVG1#202310

main43420-76020iMXGA10202310

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-27005iZSG10202108-202310

main90521-33002iZVG1#202108-202310

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-35080iZSG10202108-202310

main90311-50058iMXGA10202310

main90311-50062iZVG1#202310

main90311-50064iZVG1#202108-202310

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12240iMXGA10,ZVG1#202310

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12230iMXGA10,ZVG1#202310

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12230iZSG10,ZVG1#202108-202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12180iMXGA10,ZVG1#202310

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-12160iZVG1#202108-202310

main43474-12200iZSG10202108-202310

main43474-47040iZVG1#202310

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090×2iMXGA10,ZVG1#202310

14 parts on this diagram · 3 diagrams in section
