TRANSAXLE ASSY(HEV OR BEV OR FCEV)

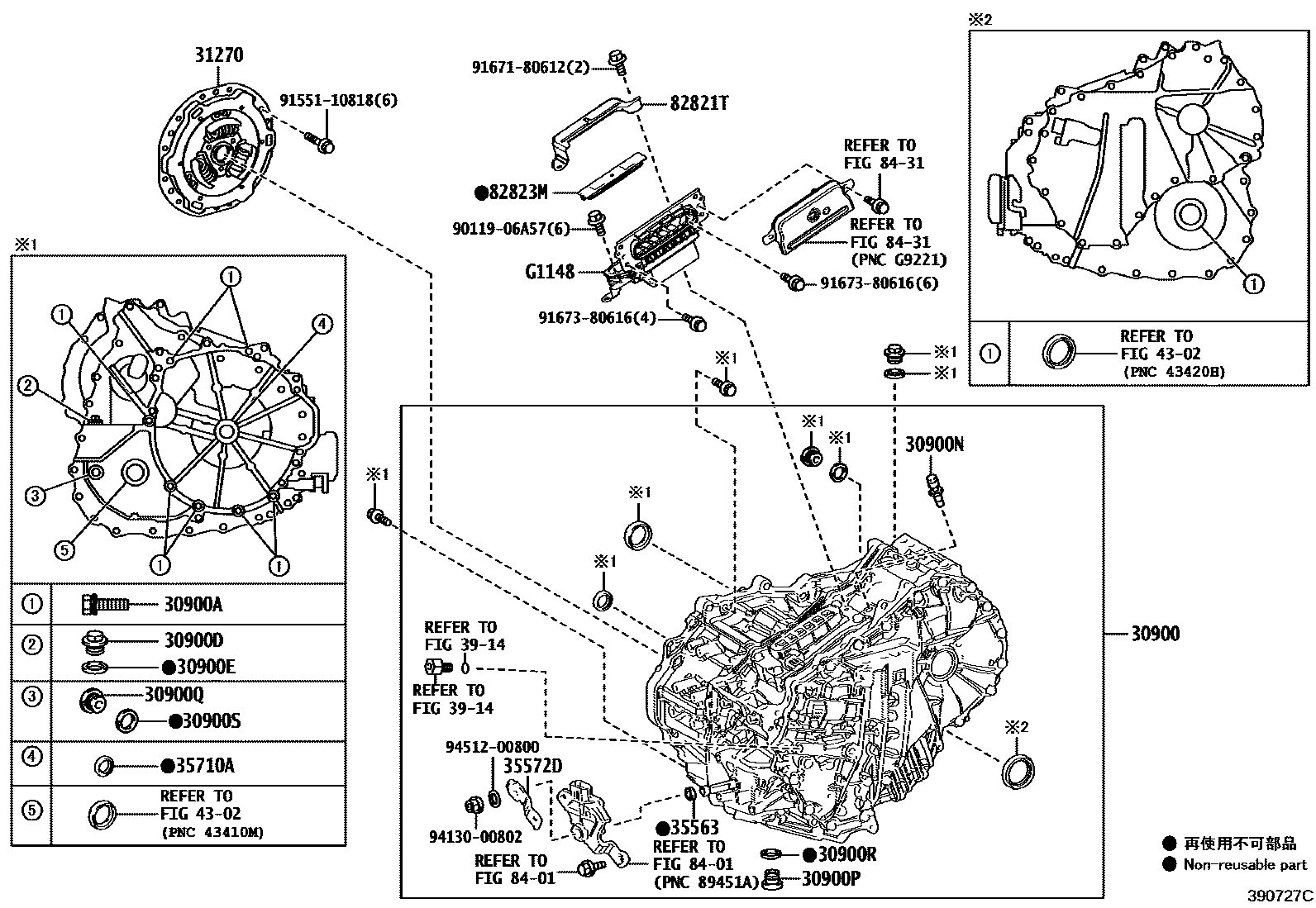

Parts diagram

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-16030i202310-202405

main30900-16040i202405

main30900-47110i202108-202308

main30900-47150i202308-202310

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045i202108-202310

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060i202108-202310

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008i202108-202310

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201i202108-202310

30900PPLUG, DRAIN(HEV)

main90341-18016i202108-202310

30900QPLUG, FILLER(HEV)

main90341-18016i202108-202310

main90341-18090i202310

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008i202108-202310

30900SGASKET, FILLER PLUG(HEV)

main90430-18008i202108-202310

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020i202310

main31270-47070i202108-202310

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016i202108-202310

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040i202108-202310

main35572-28140i202310

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025i202108-202310

main90311-25035i202310

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-47240i202108-202310

main82821-47510i202310

82823MCAP, TERMINAL

main82823-28110i202310

main82823-47040i202108-202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

G1148CABLE, MOTOR

mainG114828040i202310-202409

mainG114828041i202410

mainG114847070i202108-202310

9011906A57

main90119-06A57

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

26 parts on this diagram · 4 diagrams in section
