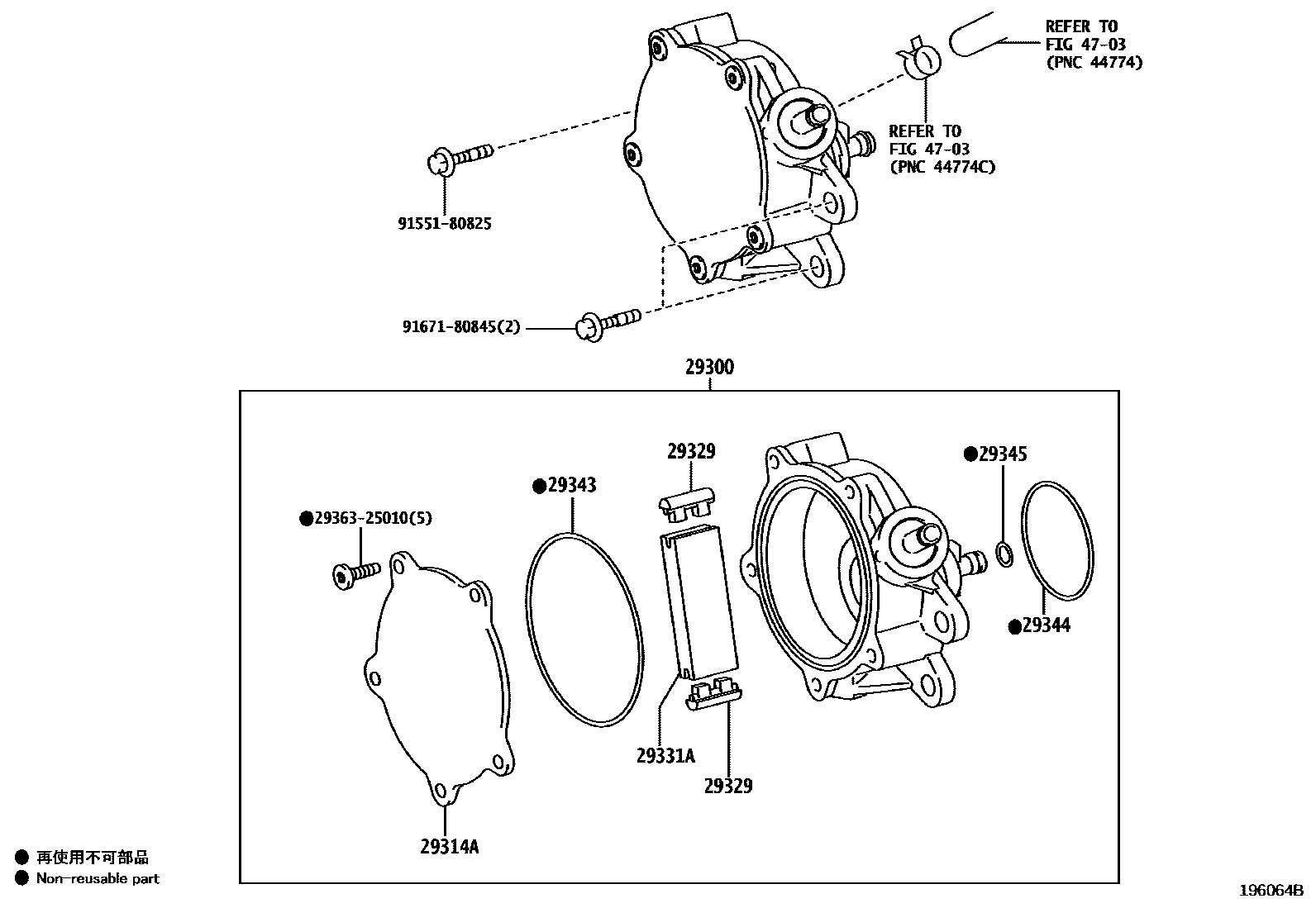

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MXGA10202310

main29300-37011i2ZRFAE..ZSG10202108-202310

29314ACOVER, END

main29314-25010iM20AFKS..MXGA10202310

main29314-37011i2ZRFAE..ZSG10202108-202310

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MXGA10202310

main29329-37010×2i2ZRFAE..ZSG10202108-202310

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MXGA10202310

main29331-37010i2ZRFAE..ZSG10202108-202310

29343RING, O VACUUM PUMP, NO.1

main29343-22011i2ZRFAE..ZSG10202108-202310

main29343-25010iM20AFKS..MXGA10202310

29344RING, O VACUUM PUMP, NO.2

main29344-22011i2ZRFAE..ZSG10202108-202310

29345RING, O VACUUM PUMP, NO.3

main29345-22011i2ZRFAE..ZSG10202108-202310

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9155180825

main91551-80825

9167180845

main91671-80845

11 parts on this diagram · 2 diagrams in section
