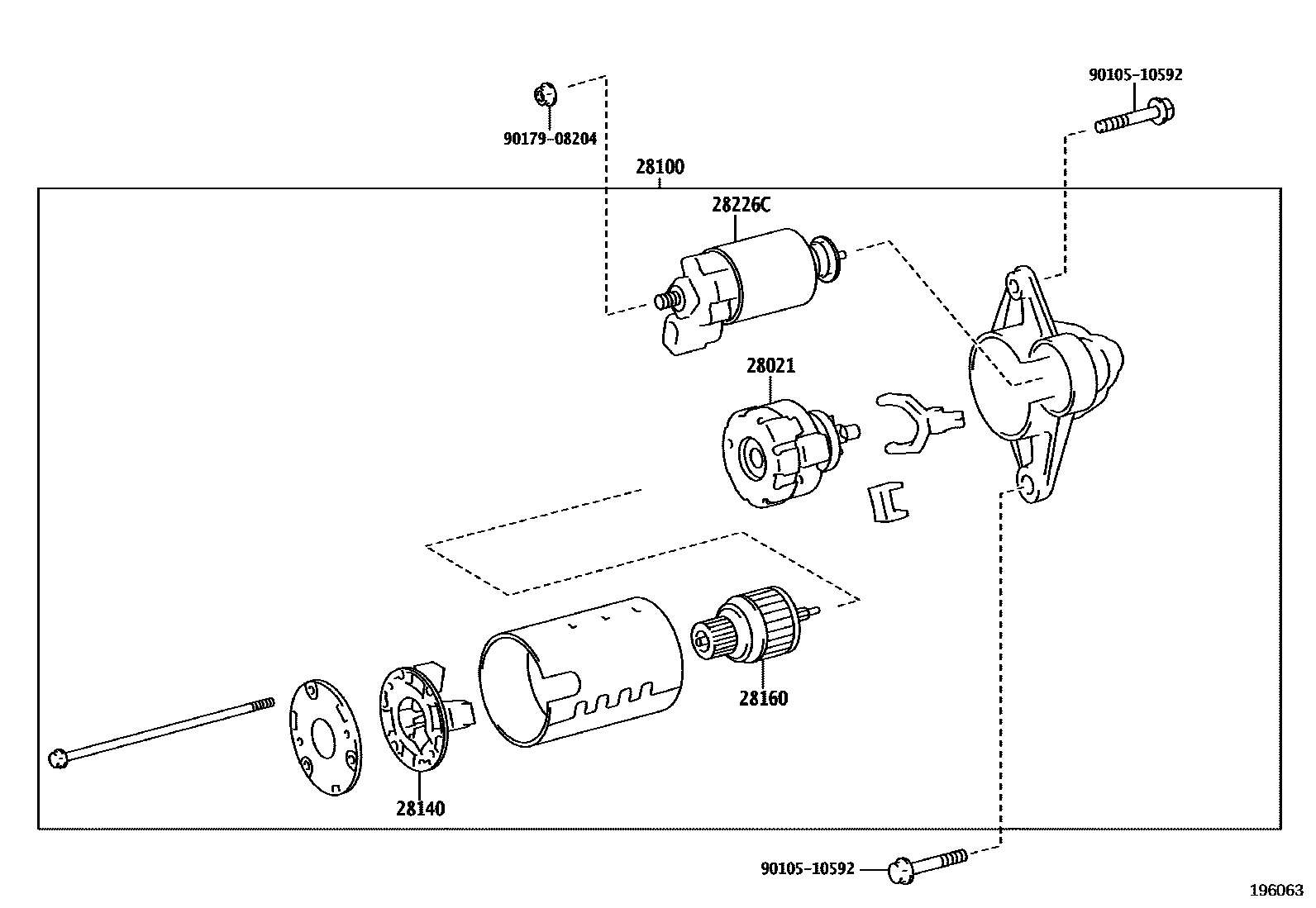

STARTER

0001 112V 1.0KW,1.2KW 0002 112V 1.0KW,1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MXGA10202310

main28021-47170i2ZRFAE..ZSG10202108-202310

28100STARTER ASSY

main28100-24120supersedes 28100-24160iM20AFKS..MXGA10202310

main28100-37130supersedes 28100-37150i2ZRFAE..ZSG10202108-202310

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i2ZRFAE..ZSG10202108-202310

28160ARMATURE ASSY, STARTER

main28160-21080supersedes 28160-21070i2ZRFAE..ZSG10202108-202310

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20AFKS..MXGA10202310

main28226-37130i2ZRFAE..ZSG10202108-202310

9010510592

main90105-10592

9017908204

main90179-08204

7 parts on this diagram · 2 diagrams in section
