ENGINE OVERHAUL GASKET KIT

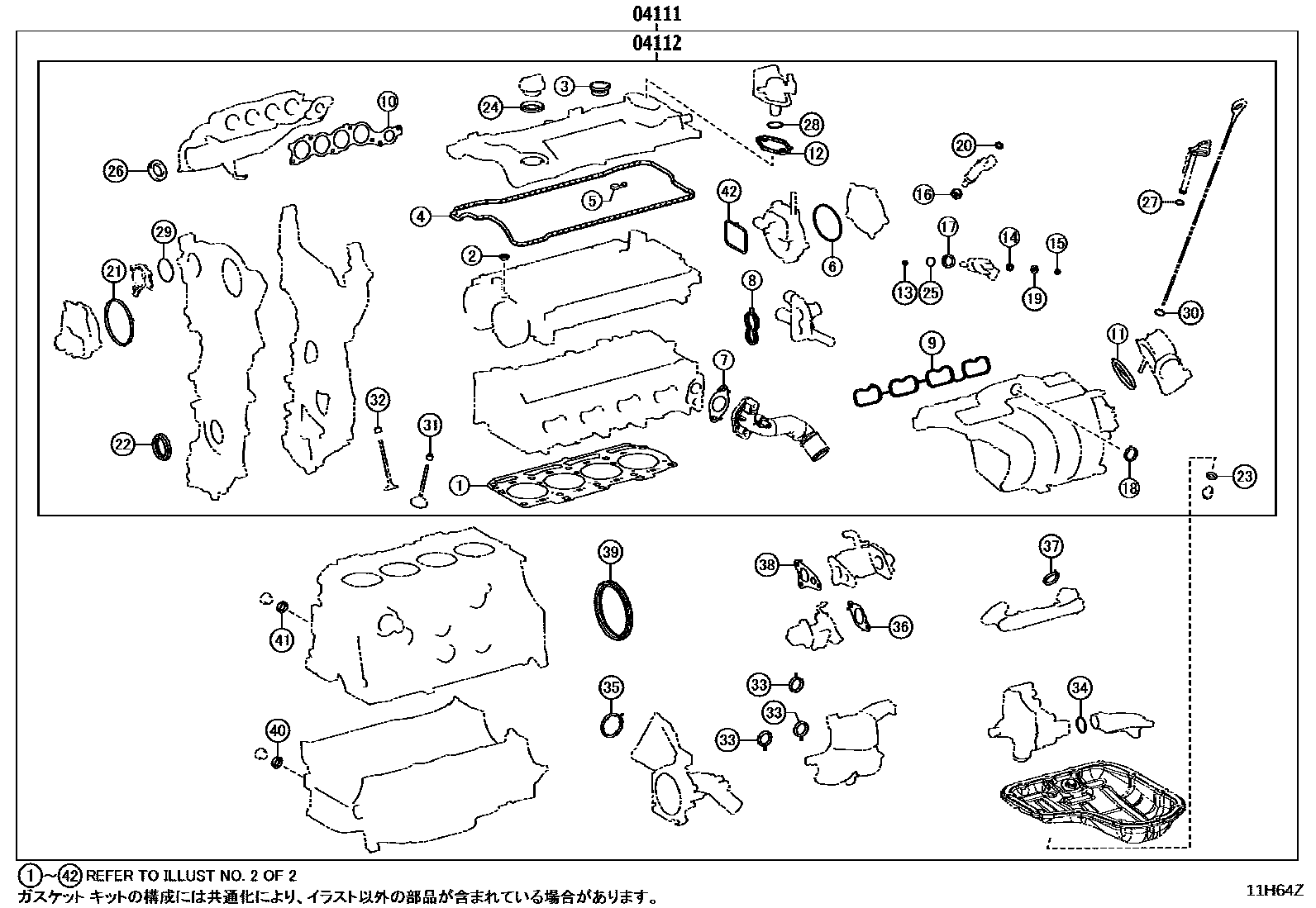

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-24200i202310

main04111-37540i202108-202110

main04111-37541i202110-202310

main04111-37560i202108-202110

main04111-37561i202310

04112GASKET KIT, ENGINE VALVE GRIND

main04112-24120i202310

main04112-37224i202108-202110

main04112-37225i202110-202310

main04112-37400i202108-202110

main04112-37401i202310

2 parts on this diagram · 8 diagrams in section
