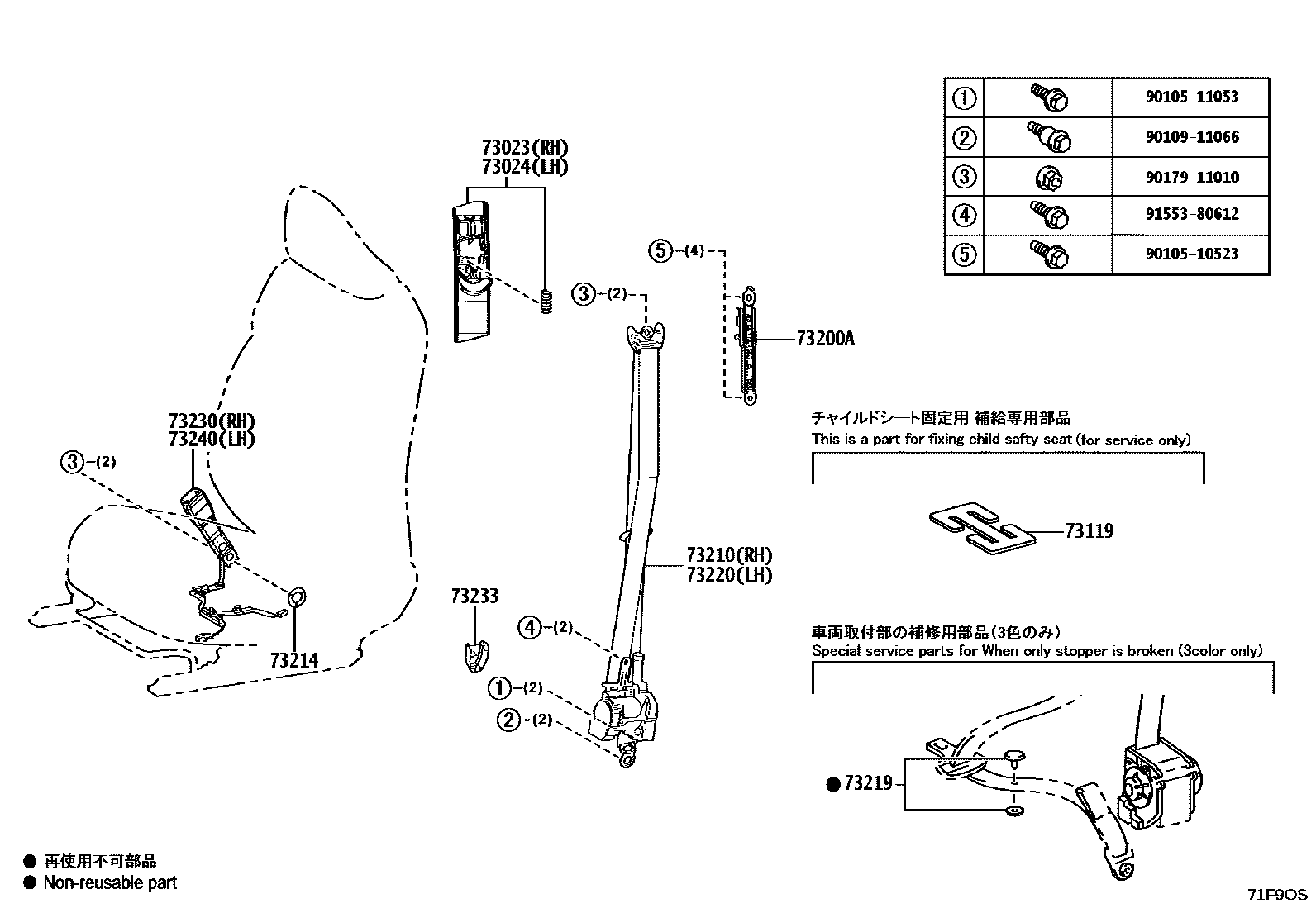

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGAYA16202408

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iGAYA16202408

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76201-C1iGAYA16202408

BLACK,TRIM01,20,21,31,41

main73210-76201-D2iGAYA16202408

DK. ROSE,TRIM01,20,21,31,41

main73210-76201-E2iGAYA16202408

FAWN,TRIM01,20,21,31,41

main73210-76201-E3iGAYA16202408

SADDLE TAN,TRIM01,21,31,41

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iGAYA16202408

73219STOPPER, TONGUE PLATE

main73219-33010iGAYA16202408

main73219-33020iGAYA16202408

main73219-33030iGAYA16202408

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-C1iGAYA16202408

BLACK,TRIM01,20,21,31,41

main73220-76181-D1iGAYA16202408

DK. ROSE,TRIM01,20,21,31,41

main73220-76181-E2iGAYA16202408

FAWN,TRIM01,20,21,31,41

main73220-76181-E3iGAYA16202408

SADDLE TAN,TRIM01,21,31,41

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-42370-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52E90-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
