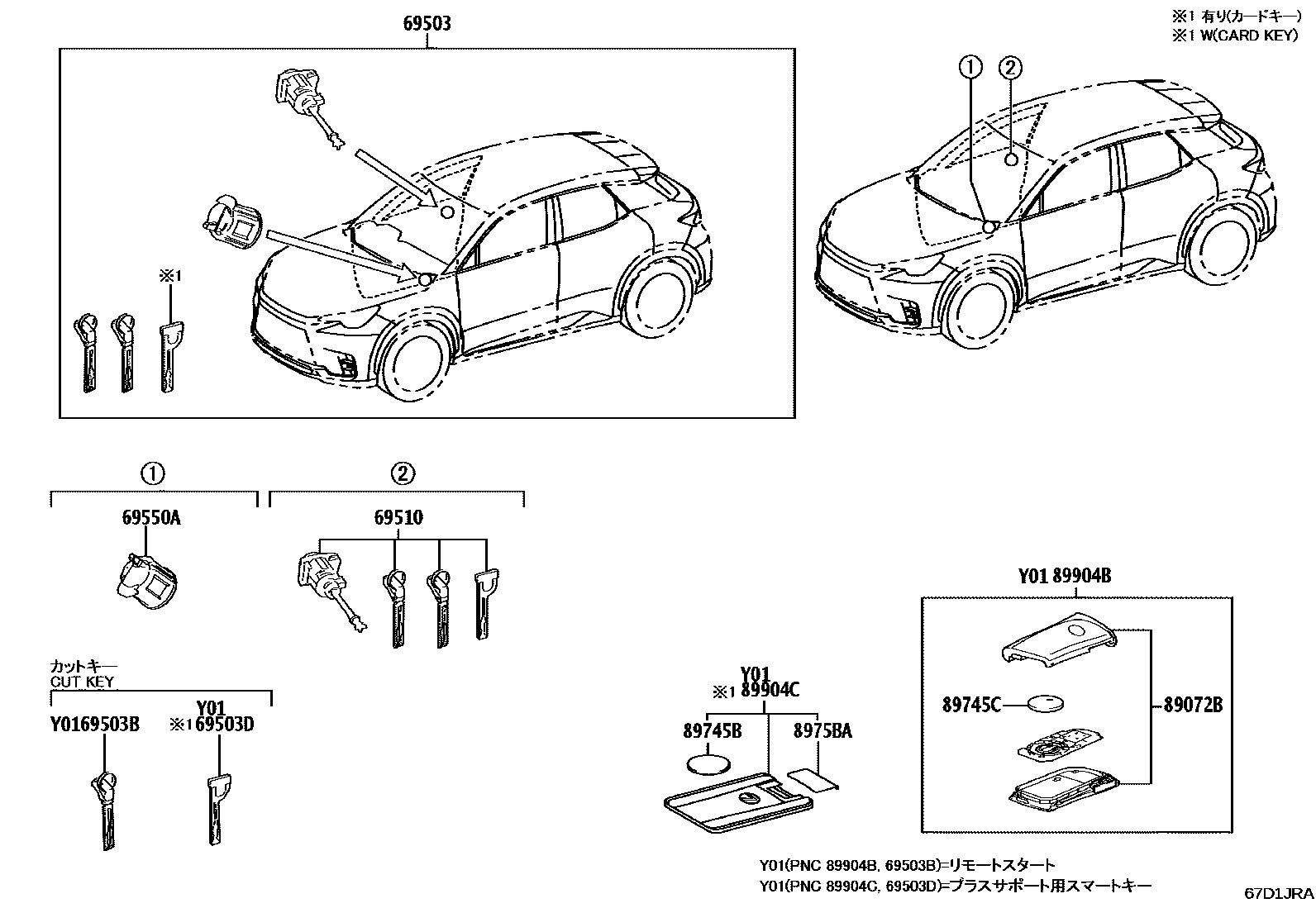

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-52U00iGAYA16; GAYA16..8FC202408

69503BKEY, CUT

main69515-33140iGAYA16; GAYA16..8FC202408

69503DKEY, CUT(CARD KEY)

main69515-12270iGAYA16; GAYA16..8FC202408

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-52590iGAYA16; GAYA16..8FC202408

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iGAYA16; GAYA16..8FC202408

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-78380×2supersedes 89072-78390iGAYA16202408-202506

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGAYA16; GAYA16..8FC202408

89745CBATTERY, TRANSMITTER

main89745-50020iGAYA16202408

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iGAYA16; GAYA16..8FC202408

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990E-48020iGAYA16..8FC202408-202506

main8990E-52050iGAYA16..8FC202408-202506

main8990H-48160supersedes 8990H-52280iGAYA16202408-202506

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-78531iGAYA16; GAYA16..8FC202408

main8990E-78031iGAYA16..8FC202408

11 parts on this diagram · 1 diagram in section
