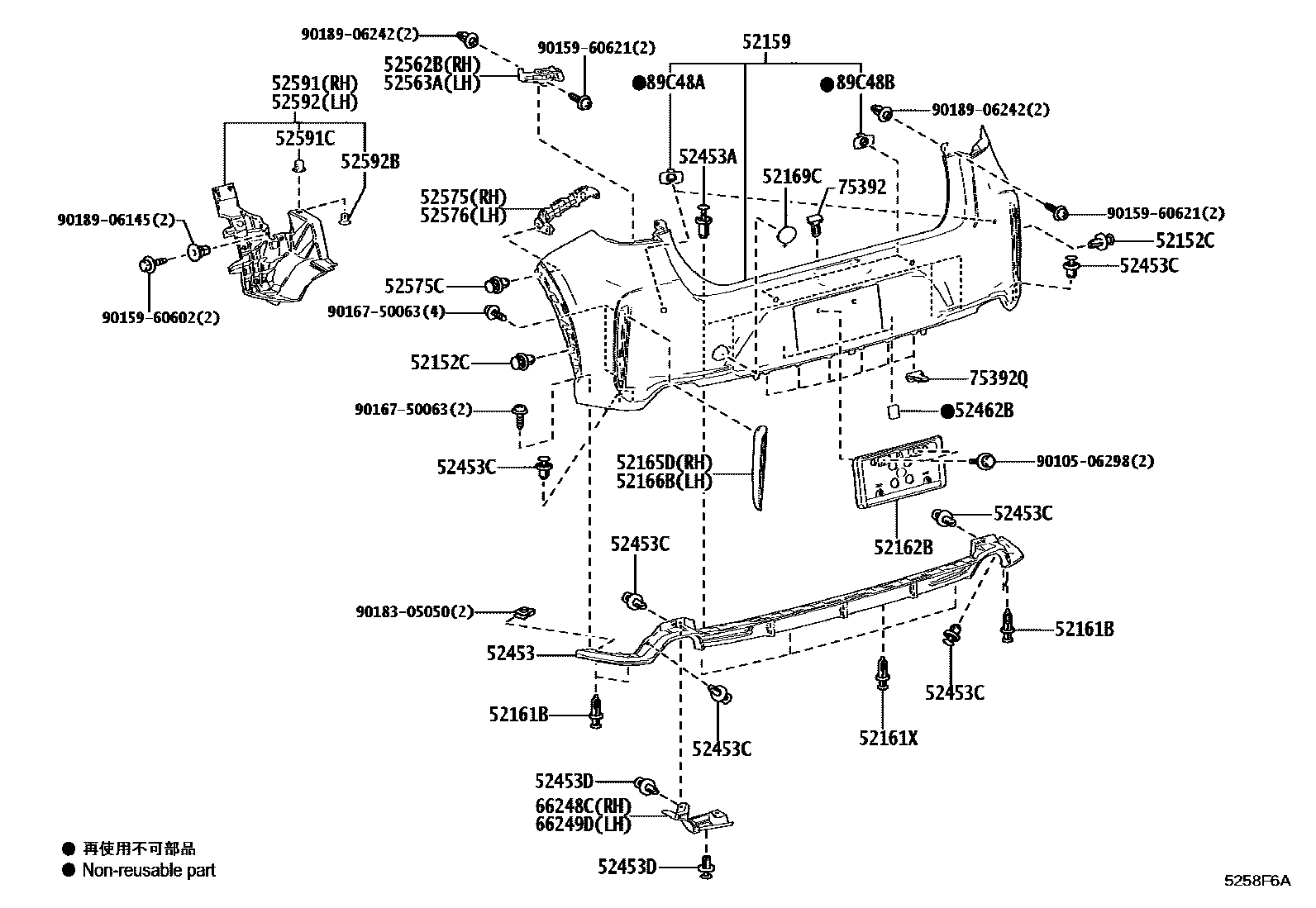

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
52159COVER, REAR BUMPER
WHITE NOVA GF.,2ZT
SONIC CHROME,223 ,2YH
GRAPHITE BLACK GF.,223
EMOTIONAL RED 2,2TB
HEAT BLUE CONTRAST LAYERI,2ZV
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52169CCOVER, REAR BUMPER, LOWER
WHITE NOVA GF.,2ZT
SONIC CHROME,2YH
GRAPHITE BLACK GF.,223
EMOTIONAL RED 2,2TB
HEAT BLUE CONTRAST LAYERI,2ZV
52453GUARD, REAR BUMPER, CENTER
52453ACLIP, REAR BUMPER GUARD
52453CCLIP, REAR BUMPER GUARD, NO.2
52453DCLIP, REAR BUMPER GUARD, NO.3
52462BPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
SUPER WHITE 2
52592SEAL, REAR BUMPER SIDE, LH
52592BCLIP, REAR BUMPER SIDE SEAL
BLACK
66248CCOVER, REAR BODY FLOOR SIDE, RH
66249DCOVER, REAR BODY FLOOR SIDE, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9010506298
main90105-06298
9015960602
main90159-60602
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906145
main90189-06145
9018906242
main90189-06242
35 parts on this diagram · 1 diagram in section
