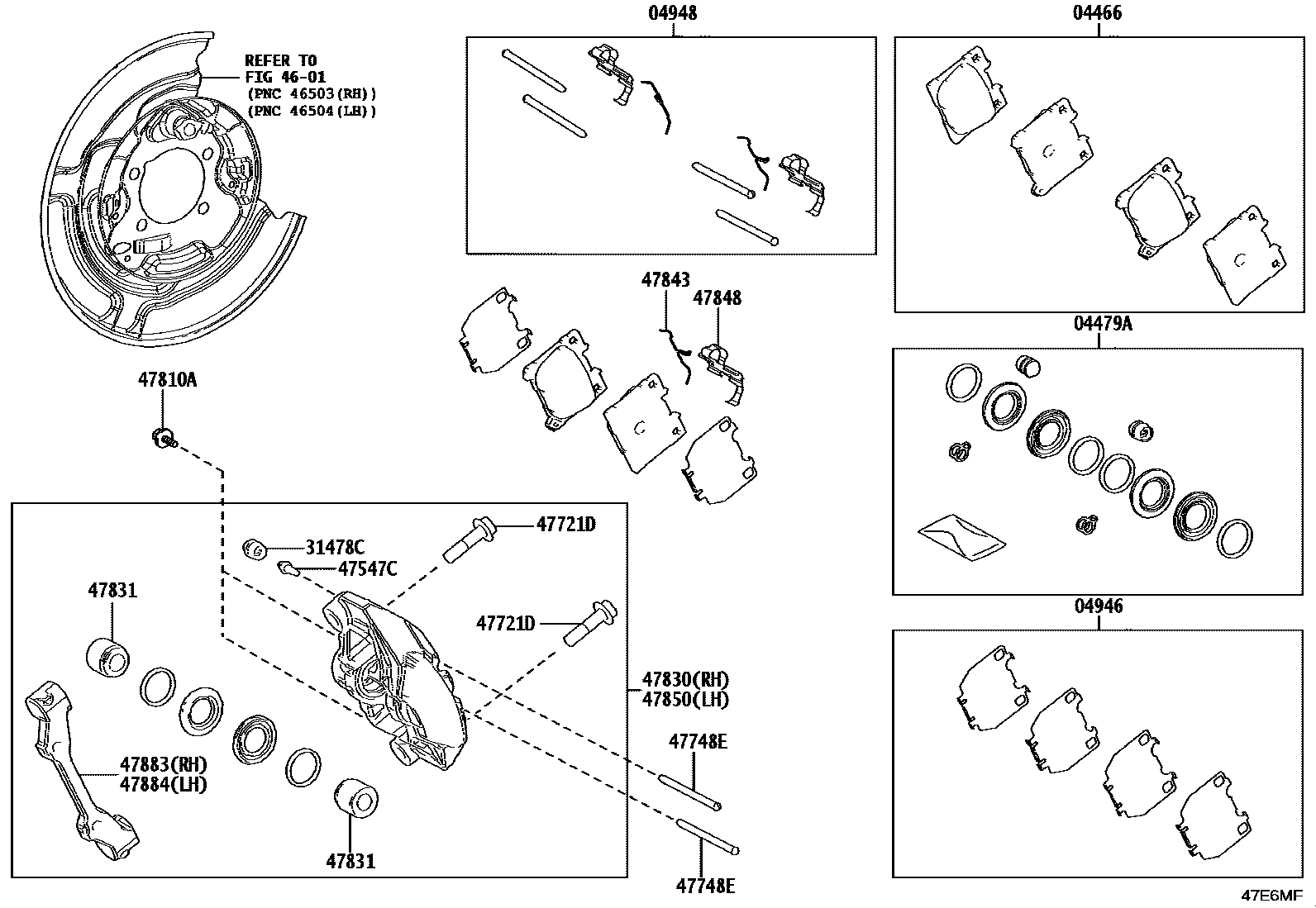

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-10010iGAYA16..8FC202408

main04466-52200iGAYA16..6F202408

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iGAYA16..8FC202408

main04479-52280iGAYA16..6F202408

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52120iGAYA16..6F202408

main04946-52140iGAYA16..8FC202408

04948FITTING KIT, DISC BRAKE, REAR

main04948-52050iGAYA16..6F202408

main04948-52070iGAYA16..8FC202408

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGAYA16..8FC202408

main31478-50020iGAYA16..6F202408

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGAYA16..8FC202408

main47547-35020iGAYA16..6F202408

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGAYA16..8FC202408

main90015-AA604iGAYA16..6F202408

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-52310iGAYA16..6F202408

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iGAYA16202408

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52320iGAYA16..6F202408

main47830-52330iGAYA16..8FC202408

47831PISTON, REAR DISC BRAKE

main47731-18030iGAYA16..6F202408

main47831-10030iGAYA16..8FC202408

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-52250iGAYA16..6F202408

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-52250iGAYA16..6F202408

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52320iGAYA16..6F202408

main47850-52330iGAYA16..8FC202408

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52040iGAYA16..6F202408

47884BRACKET, CALIPER SUPPORT, REAR LH

main47883-52040iGAYA16..6F202408

17 parts on this diagram · 2 diagrams in section
