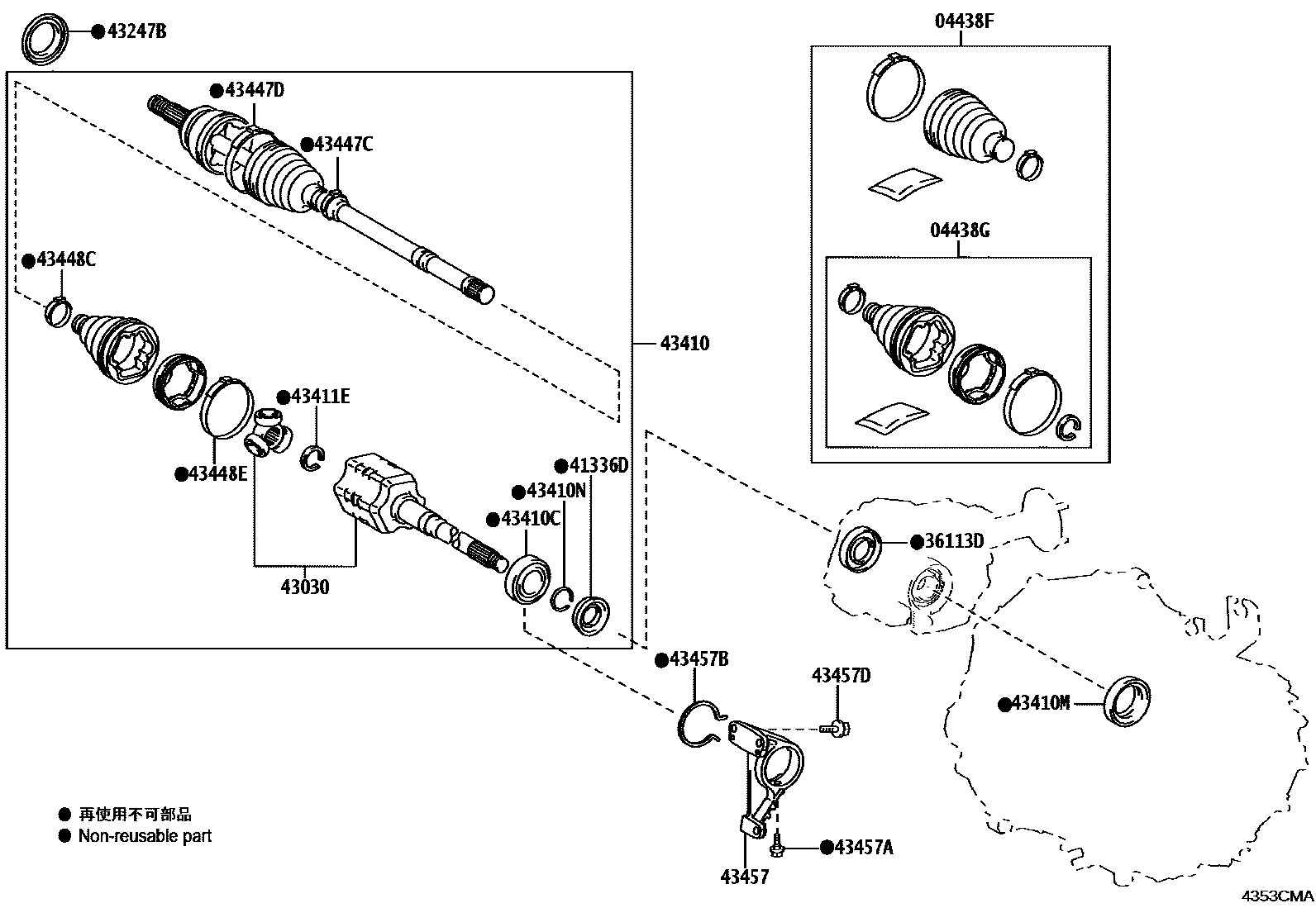

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52A60iGAYA16202408

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52530iGAYA16202408

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iGAYA16202408

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-78020iGAYA16202408

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-52100iGAYA16..6F202408

main43030-52110iGAYA16..8FC202408

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-47010iGAYA16202408

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52520iGAYA16..6F202408

main43410-52530iGAYA16..8FC202408

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iGAYA16202408

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90316-34001iGAYA16202408

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78040iGAYA16202408

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-78020iGAYA16202408

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGAYA16202408

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iGAYA16202408

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-52320iGAYA16202408

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-52350iGAYA16202408

43457BRACKET, DRIVE SHAFT BEARING

main43457-52040iGAYA16..6F202408

main43457-52050iGAYA16..8FC202408

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGAYA16202408

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iGAYA16202408

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iGAYA16202408

19 parts on this diagram · 2 diagrams in section
