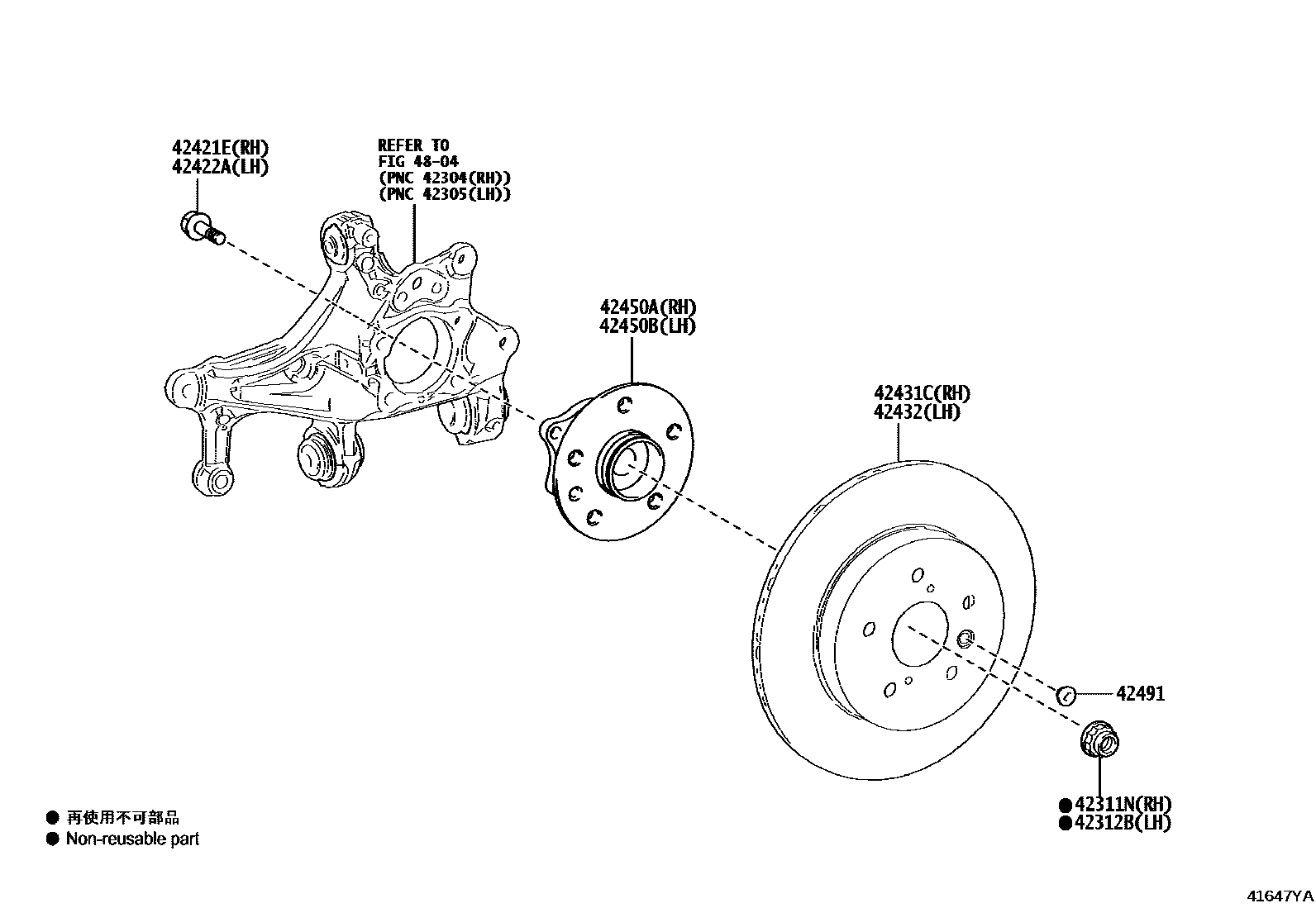

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGAYA16202408

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGAYA16202408

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iGAYA16202408

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iGAYA16202408

42431CDISC, REAR RH

main42431-47070iGAYA16..8FC202408

main42431-52210iGAYA16..6F202408

42432DISC, REAR LH

main42431-47070iGAYA16..8FC202408

main42432-52020iGAYA16..6F202408

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-47040iGAYA16202408

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-47040iGAYA16202408

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main90110-10020×2iGAYA16202408

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

10 parts on this diagram · 2 diagrams in section
