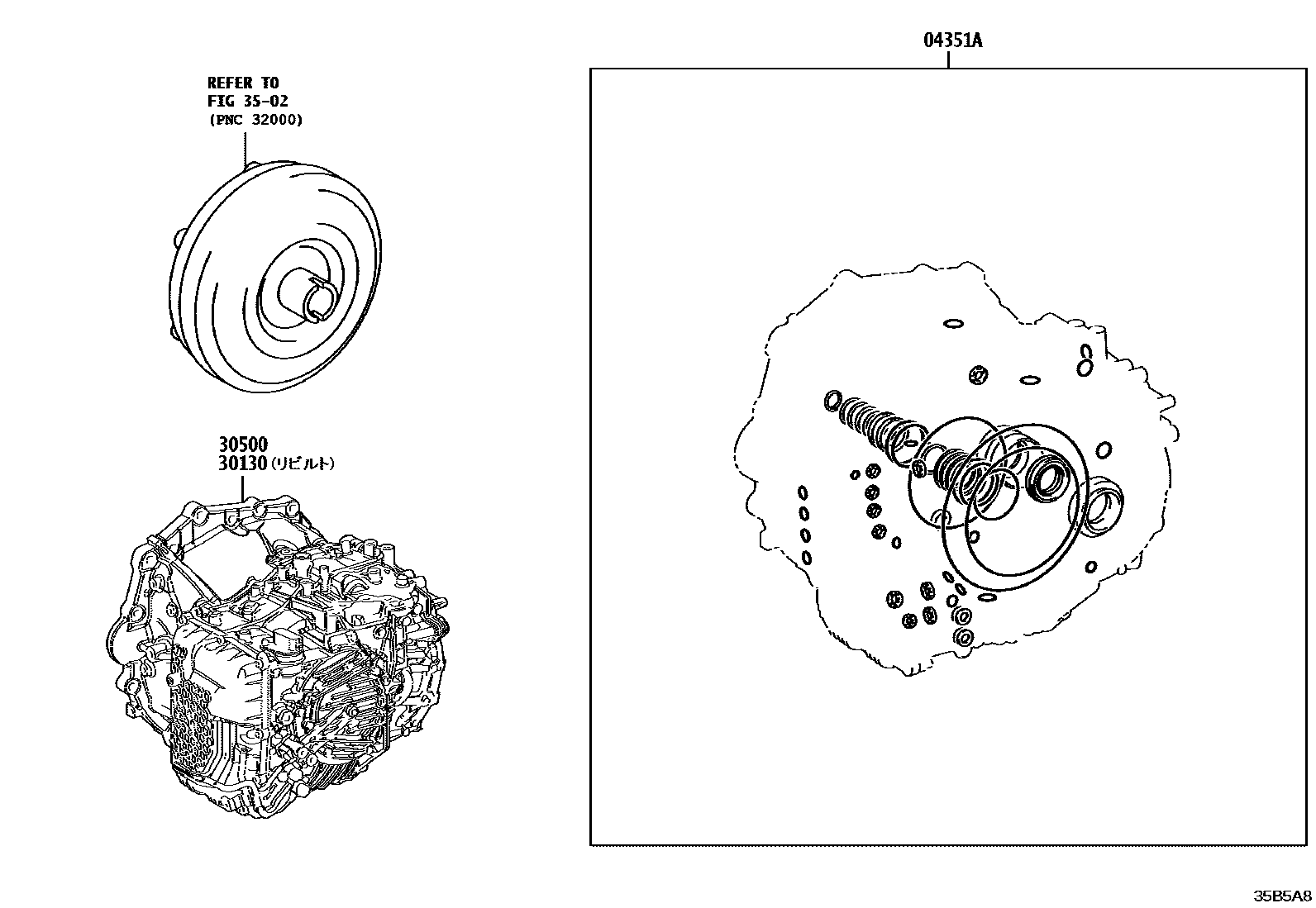

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48350i202408-202506

30130TRANSAXLE ASSY, REBUILT

main30130-52560i202408-202506

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52560i202408-202506

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

4 parts on this diagram · 1 diagram in section
