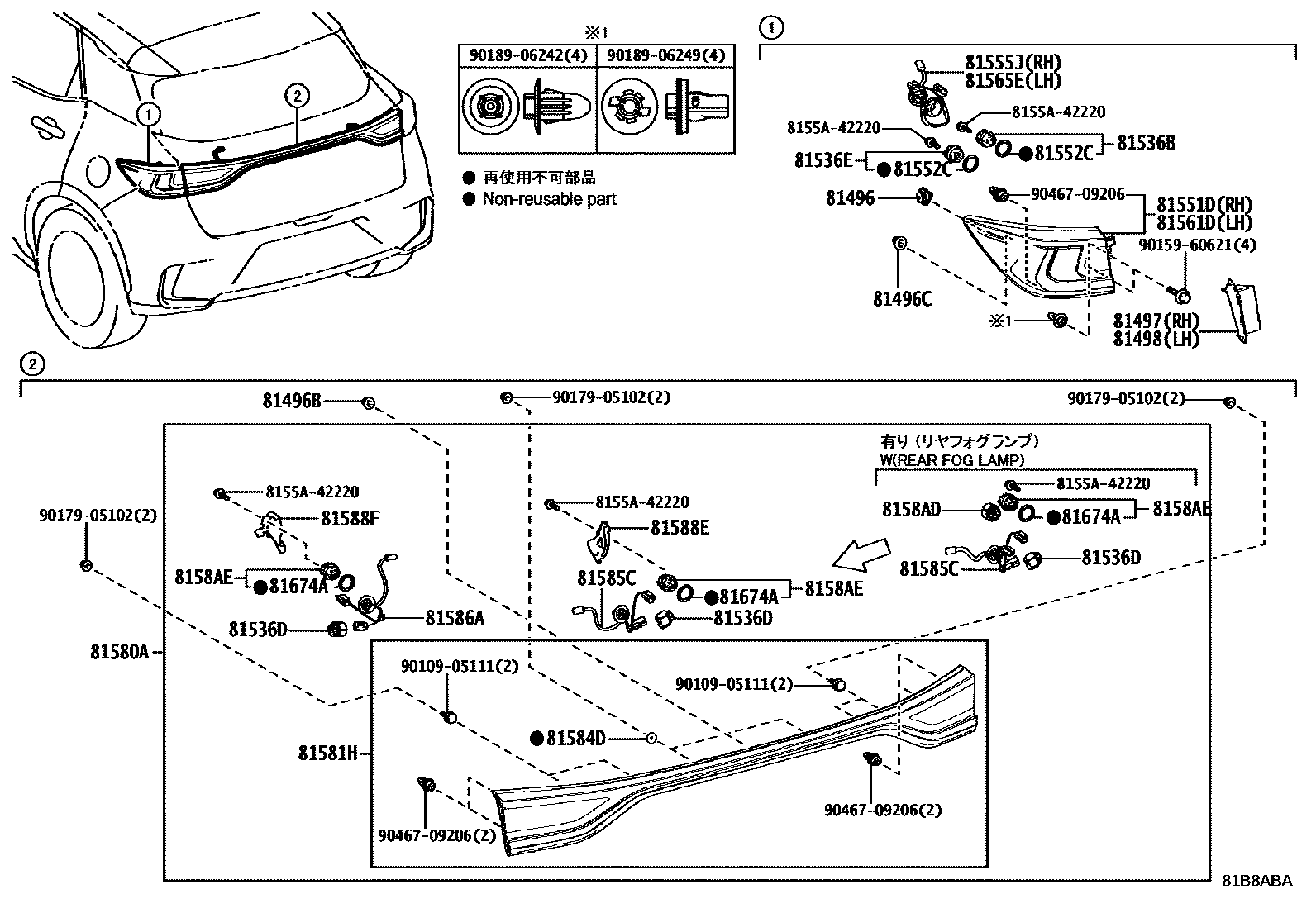

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iMAYH1#202312

81496BGUIDE, REAR LAMP

main81496-52020iMAYH1#202312

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iMAYH1#202312

81497COVER, REAR COMBINATION LAMP, RH

main81497-52040iMAYH1#202312

81498COVER, REAR COMBINATION LAMP, LH

main81498-52040iMAYH1#202312

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120iMAYH1#202312

81536DLED, TAILLAMP

main81965-46010iMAYH1#202312

81536ELED, STOP LAMP

main81536-42200iMAYH1#202312

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52F80iMAYH1#202312

81552CGASKET, REAR COMBINATION LAMP

main81538-42200iMAYH1#202312

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-52F80iMAYH1#202312

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52F80iMAYH1#202312

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-52F80iMAYH1#202312

81580ALAMP ASSY, REAR

main81580-52440iMAYH1#202312

81581HLENS & BODY, REAR LAMP

main81581-52440iMAYH1#202312

81584DGASKET, REAR LAMP

main81584-22040iMAYH1#202312

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-52440iMAYH1#202312

81586ASOCKET & WIRE, REAR LAMP, LH

main81585-52440iMAYH1#202312

81588EBRACKET, REAR LAMP, RH

main81588-52440iMAYH1#202312

81588FBRACKET, REAR LAMP, LH

main81588-52450iMAYH1#202312

8158ADLED, REAR FOG LAMP

8158AELED, BACK-UP LAMP

main8159A-52420iMAYH1#202312

81674AGASKET, BACK-UP LAMP

main81538-42200iMAYH1#202312

8155A42220

main8155A-42220

9010905111

main90109-05111

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

9018906249

main90189-06249

9046709206

main90467-09206

30 parts on this diagram · 1 diagram in section
