Toyota 544110 — BACK DOOR PANEL & GLASS

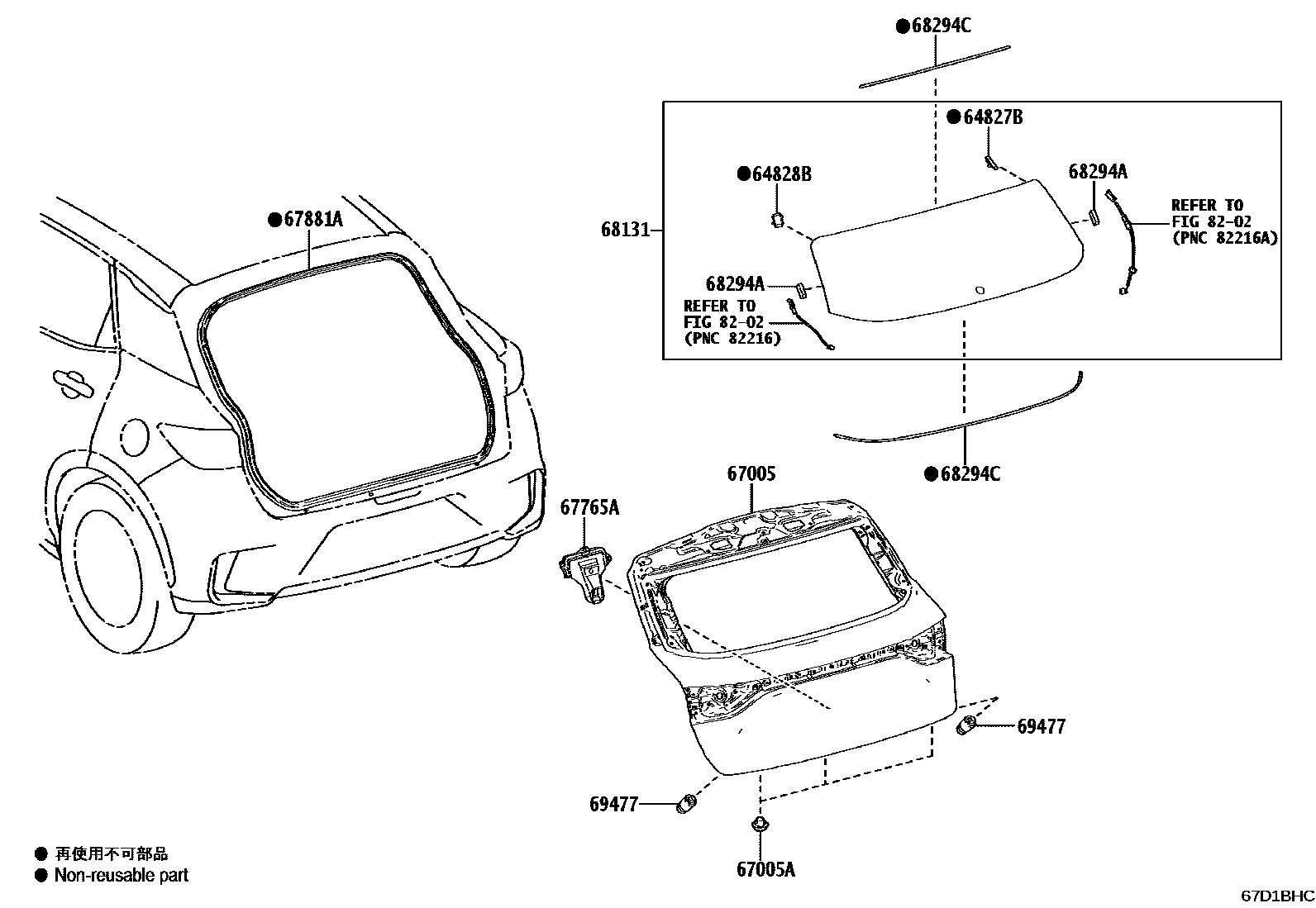

Parts diagram

64827BCLIP, BACK WINDOW GLASS, RH

64828BCLIP, BACK WINDOW GLASS, LH

67005PANEL SUB-ASSY, BACK DOOR

67005APLUG, HOLE(FOR BACK DOOR PANEL)

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

67881AWEATHERSTRIP, BACK DOOR

68131GLASS, BACK DOOR

68294ADAM, BACK DOOR GLASS ADHESIVE

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

69477CUSHION, BACK DOOR UPPER STOPPER

8202WIRING & CLAMP

→ Go to FIG 82-02

11 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota 544110

This section contains 20 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota 544110. Key components include: CLIP, BACK WINDOW GLASS, RH, CLIP, BACK WINDOW GLASS, LH, PANEL SUB-ASSY, BACK DOOR, PLUG, HOLE(FOR BACK DOOR PANEL), BOARD, BACK DOOR TRIM.
