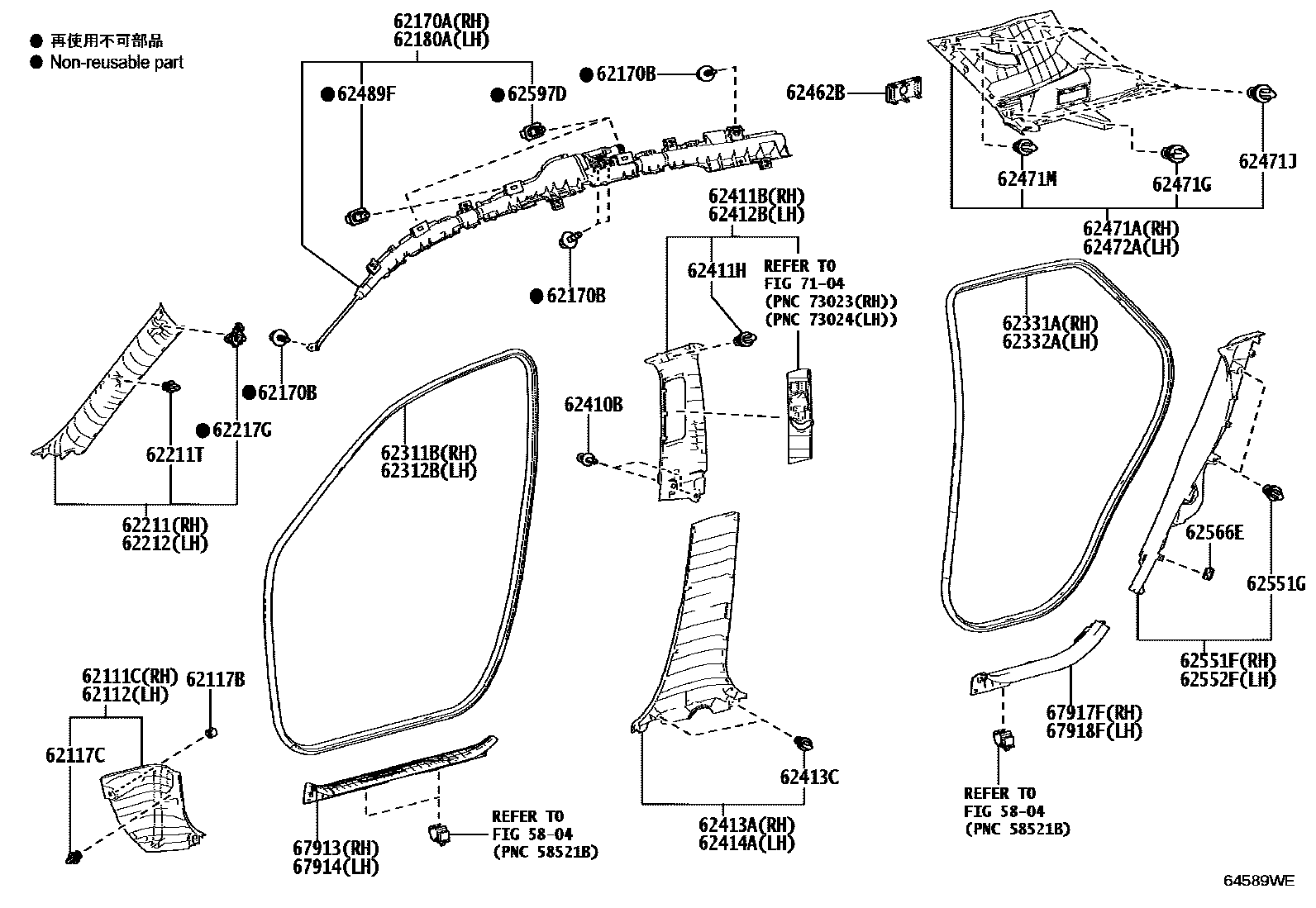

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM0#,2#,3#,4#,8#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM0#,2#,3#,4#,8#
62217GCLIP, FRONT PILLAR GARNISH
62410BCLIP
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM0#,2#,3#,4#,8#
62411HCLIP
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM0#,2#,3#,4#,8#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#,8#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#,8#
62462BCOVER, ROOF SIDE INNER GARNISH, LH
BLACK,TRIM0#,2#,3#,4#,8#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM0#,2#,3#,4#,8#
62471GCLIP, ROOF SIDE INNER GARNISH
62471JCLIP (FOR ROOF SIDE GARNISH)
62471MCLIP
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM0#,2#,3#,4#,8#
62489FCLIP, ROOF SIDE INNER GARNISH
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,3#,4#,8#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,3#,4#,8#
62566ECLAMP, REAR SEAT SIDE GARNISH
62597DCLIP
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#,8#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#,8#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
BLACK,TRIM0#,2#,3#,4#,8#
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
BLACK,TRIM0#,2#,3#,4#,8#
7104
40 parts on this diagram · 1 diagram in section
