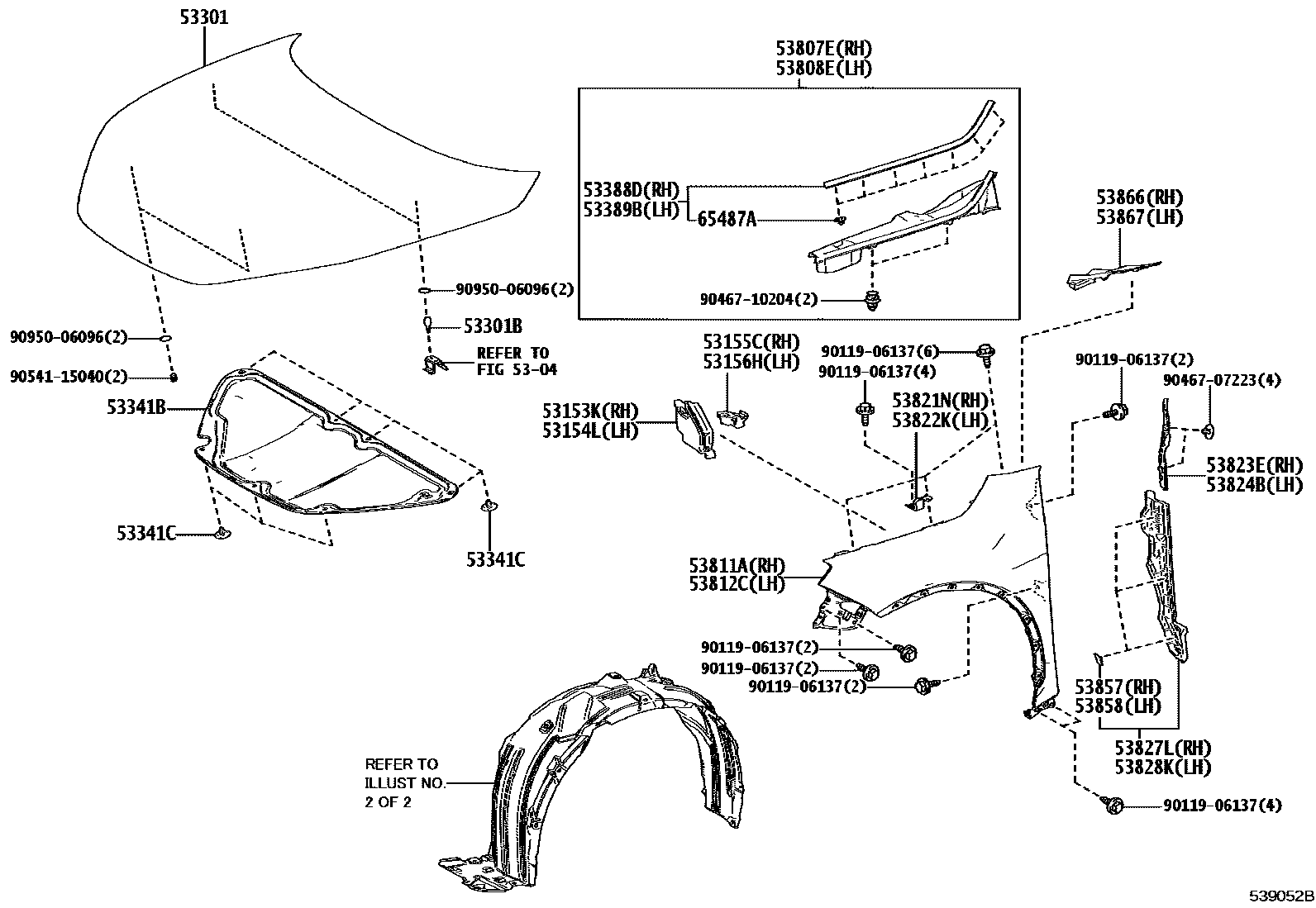

HOOD & FRONT FENDER
5304
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53155CSEAL, RADIATOR GRILLE, NO.1
53156HSEAL, RADIATOR GRILLE, NO.2
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53807ESEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53808ESEAL SUB-ASSY, FENDER APRON MUDGUARD, LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53821NBRACKET, FRONT FENDER, REAR UPPER RH
53822KBRACKET, FRONT FENDER, REAR UPPER LH
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
65487ACLIP, CORNER PROTECTOR
9011906137
main90119-06137
9046707223
main90467-07223
9046710204
main90467-10204
9054115040
main90541-15040
9095006096
main90950-06096
31 parts on this diagram · 2 diagrams in section
