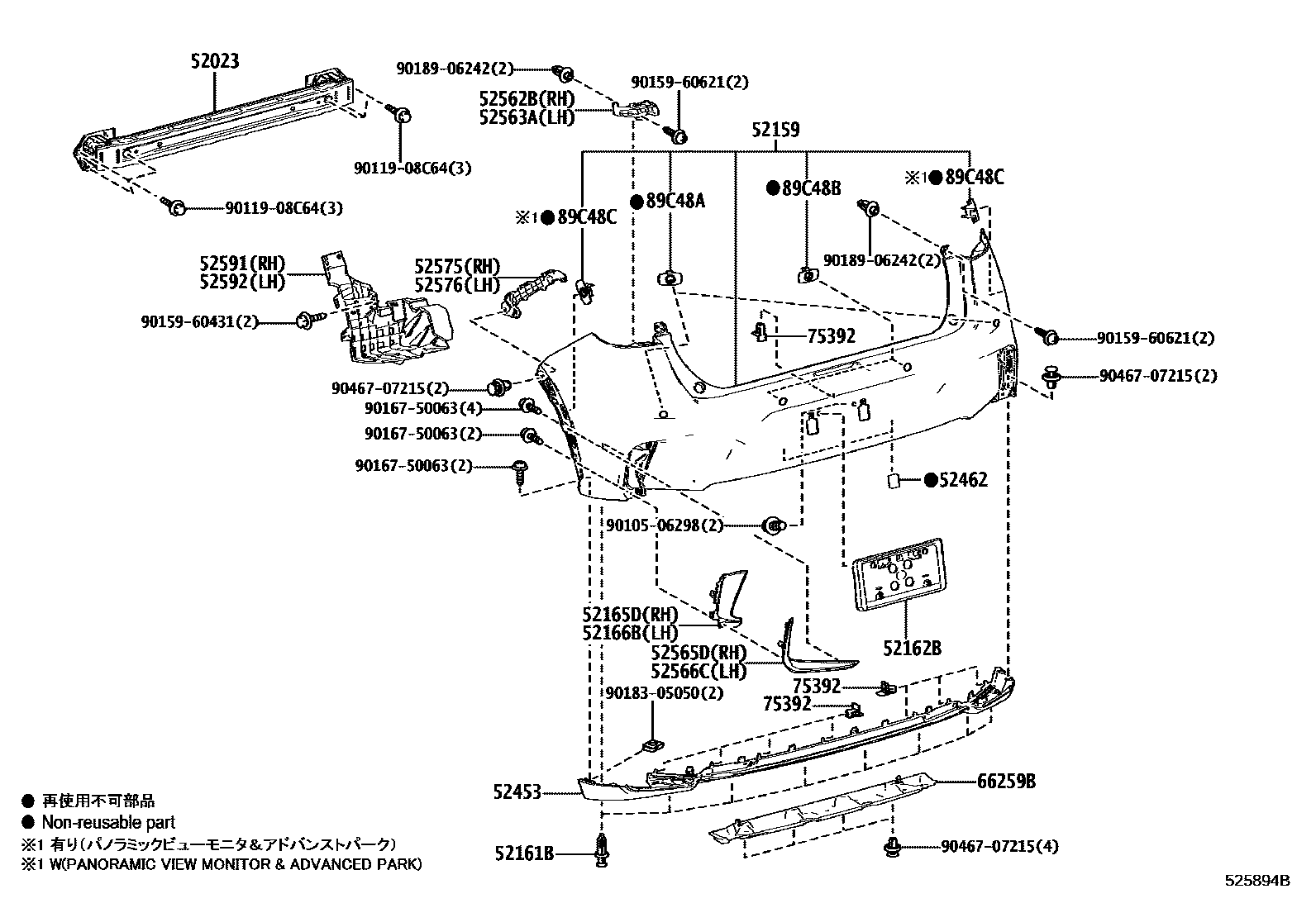

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52453GUARD, REAR BUMPER, CENTER
52462PAD, REAR BUMPER, RH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
66259BCOVER, REAR BODY FLOOR, REAR
75392RETAINER, OUTSIDE MOULDING
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9010506298
main90105-06298
9011908C64
main90119-08C64
9015960431
main90159-60431
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906242
main90189-06242
9046707215
main90467-07215
29 parts on this diagram · 1 diagram in section
