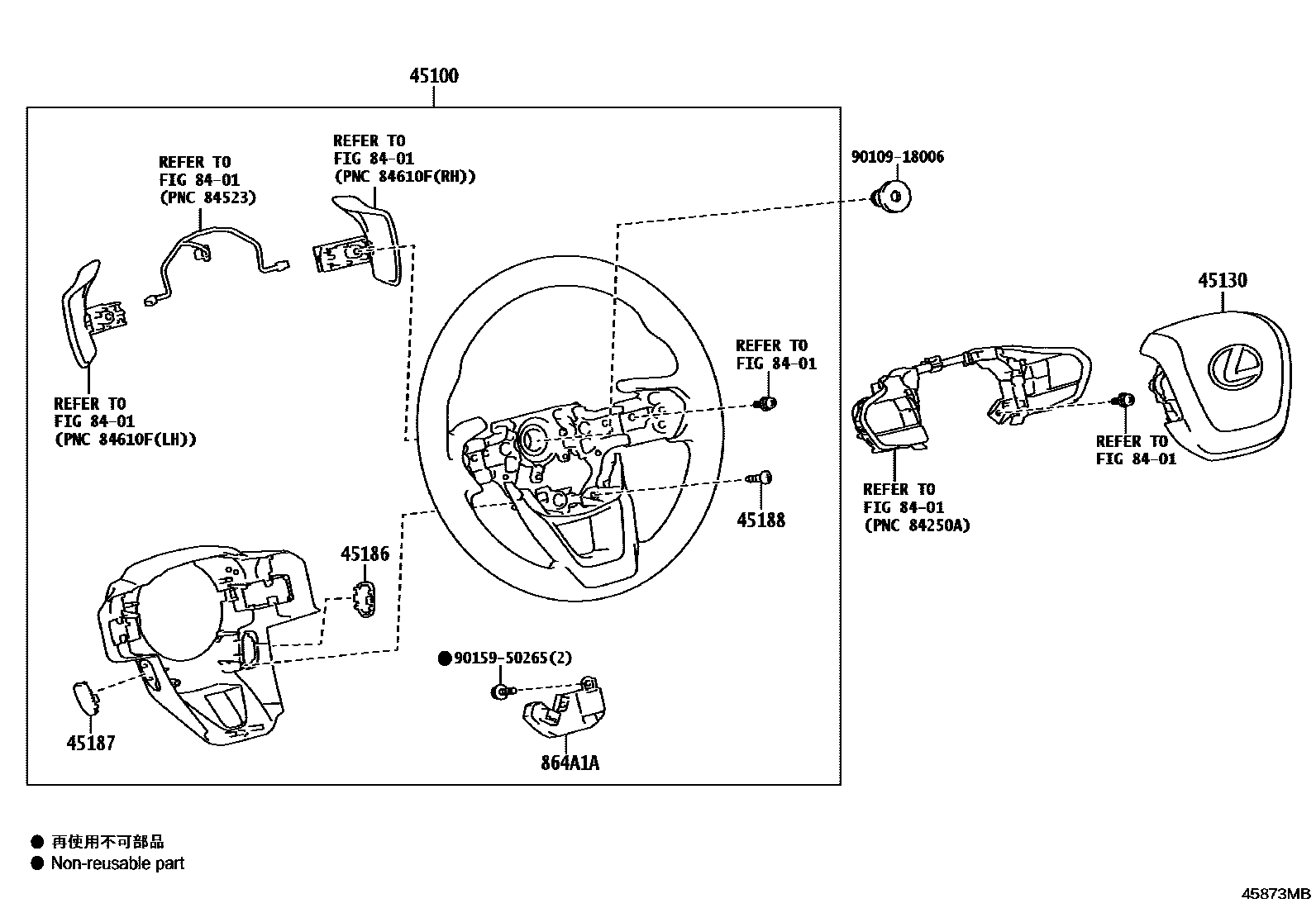

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52A30-A0iMAYH1#202404

main45100-52A30-C0iMAYH1#202404

main45100-52A30-E0iMAYH1#202404

main45100-52B30-C0iMAYH1#202312

main45100-52B40-C0supersedes 45100-52880-C0iMAYH1#202312

main45100-52B50-A0iMAYH1#202404

main45100-52B50-C1iMAYH1#202404

main45100-52B50-E1iMAYH1#202404

main45100-78180-C0iMAYH1#202312

45130BUTTON ASSY, HORN

main45130-60700-A0iMAYH1#202312

FROMAGE,TRIM01,22,42

main45130-60700-C0iMAYH1#202312

BLACK,TRIM00,01,20,21,22,3#,4#,8#

main45130-60700-E0iMAYH1#202312

OCHER,TRIM01,22,42

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-78010-C0iMAYH1#202312

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-78010-C0iMAYH1#202312

45188SCREW, STEERING WHEEL PAD ATTACHING

main90168-40113×2iMAYH1#202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78040supersedes 864A1-78020iMAYH1#202312

9010918006

main90109-18006

9015950265

main90159-50265

9 parts on this diagram · 1 diagram in section
