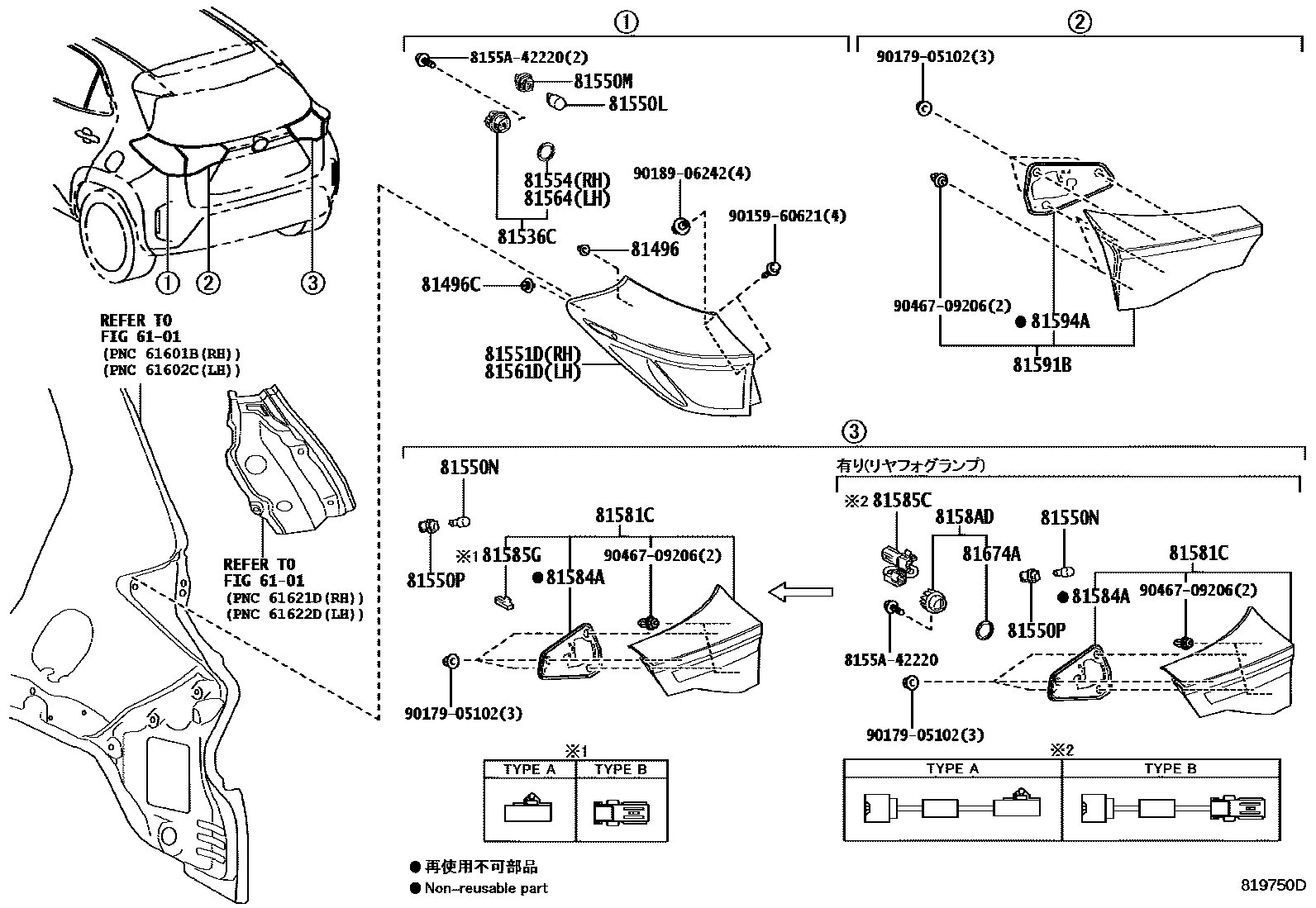

Toyota YARIS CROSS — REAR COMBINATION LAMP
6101SIDE MEMBER
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81536CLED, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550MSOCKET, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550PSOCKET, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81581CLENS AND BODY, REAR LAMP, RH
81584AGASKET, REAR LAMP RH
81585CSOCKET & WIRE, REAR LAMP, RH
81585GHOUSING, REAR LAMP CONNECTOR
8158ADLED, REAR FOG LAMP
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
81674AGASKET, BACK-UP LAMP
8155A42220
9015960621
9017905102
9018906242
9046709206
25 parts on this diagram · 2 diagrams in section
REAR COMBINATION LAMP for Toyota YARIS CROSS
This section contains 30 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota YARIS CROSS. Key components include: SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, GUIDE, REAR COMBINATION LAMP, NO.2, LED, TAIL & STOP LAMP, LED, TAILLAMP.
