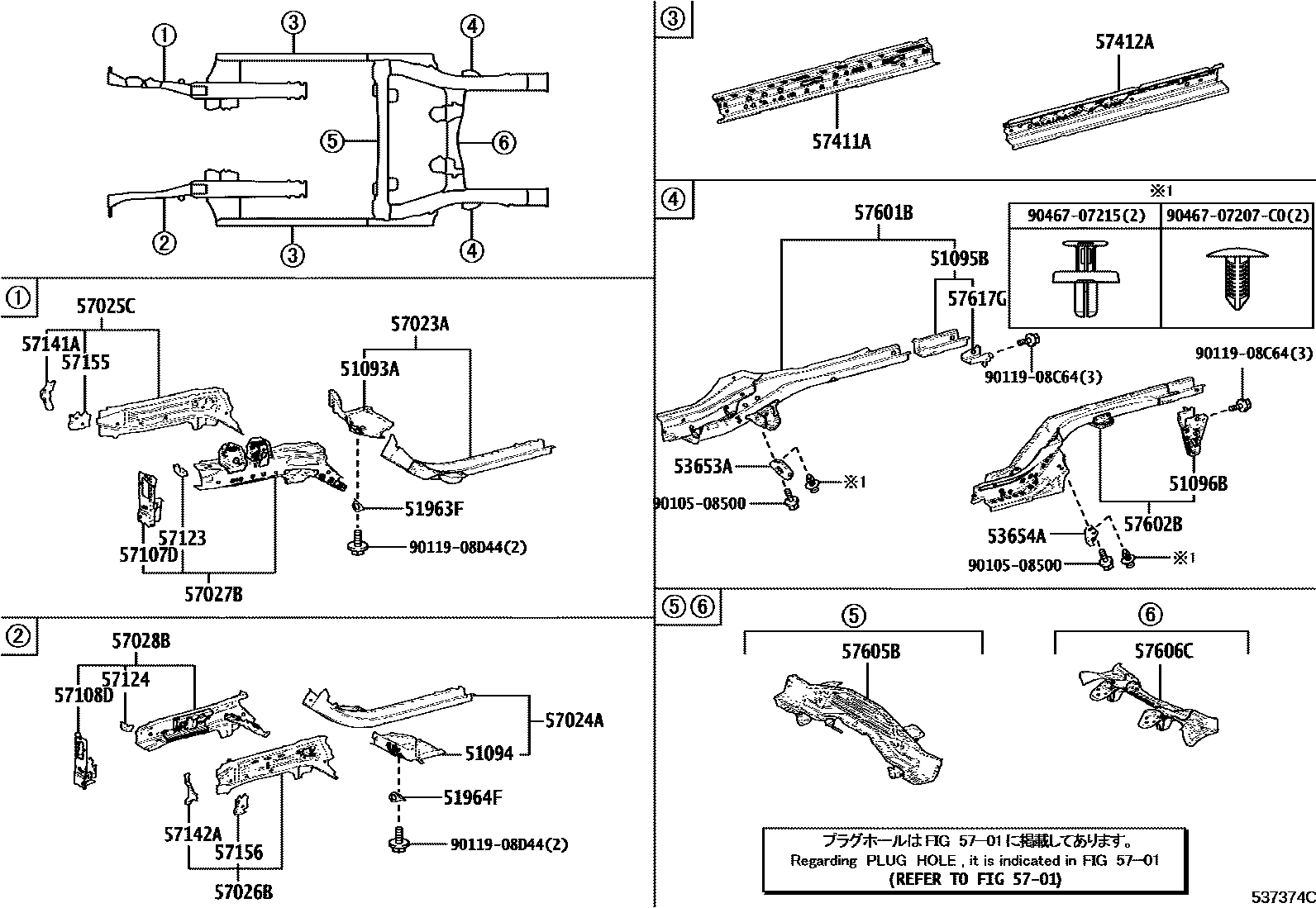

FLOOR SIDE MEMBER
51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH
51094HOOK SUB-ASSY, TRANSPORT, FRONT LH
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53653ABRACE, REAR SUSPENSION, LOWER RH
53654ABRACE, REAR SUSPENSION, LOWER LH
5701HOLE PLUG
57023AMEMBER SUB-ASSY, REAR SIDE, RH
57024AMEMBER SUB-ASSY, REAR SIDE, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57617GRETAINER, REAR BUMPER ARM
9010508500
main90105-08500
9011908C64
main90119-08C64
9011908D44
main90119-08D44
9046707207C0
main90467-07207C0
9046707215
main90467-07215
35 parts on this diagram · 4 diagrams in section
