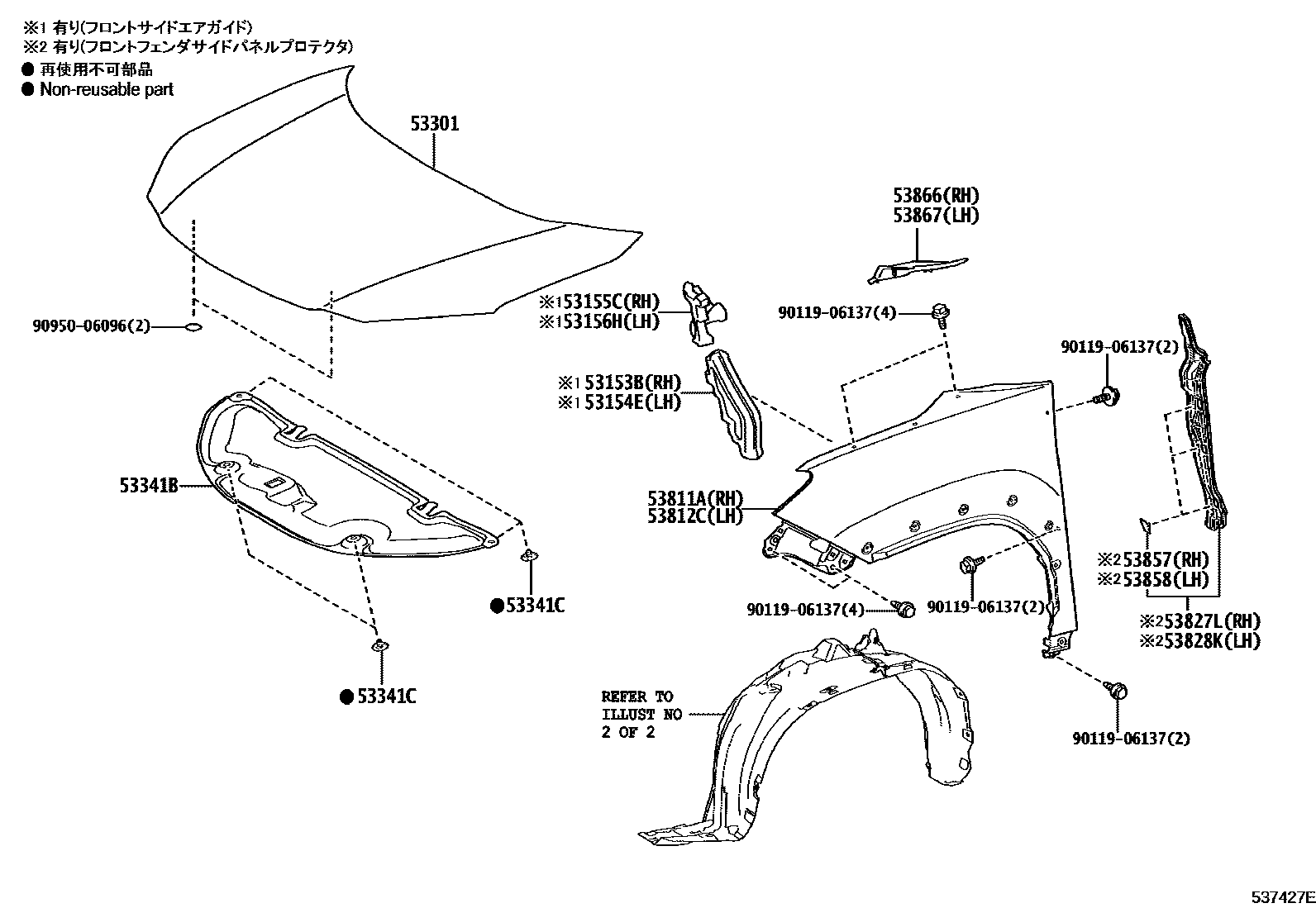

HOOD & FRONT FENDER

0001 1 0002 1��������

53153BGUIDE, FRONT SIDE AIR

main53153-52060iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-52060iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-52110iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-52030iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

53301HOOD SUB-ASSY

main53301-52430iMXPB1#,MXPJ1#202008-202401

53341BINSULATOR, HOOD

main53341-52240iMXPB1#,MXPJ1#202008-202401

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×4iMXPB1#,MXPJ1#202008-202401

53811APANEL, FRONT FENDER, RH

main53811-K2010iMXPB1#,MXPJ1#202008-202401

53812CPANEL, FRONT FENDER, LH

main53812-K2010iMXPB1#,MXPJ1#202008-202401

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52230iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z; MXPB1#,MXPJ1#..HBDX,X202008-202401

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52240iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z; MXPB1#,MXPJ1#..HBDX,X202008-202401

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×3iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z; MXPB1#,MXPJ1#..HBDX,X202008-202401

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×3iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z; MXPB1#,MXPJ1#..HBDX,X202008-202401

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52200iMXPB1#,MXPJ1#202008-202308

main53866-52201iMXPB1#,MXPJ1#202309-202401

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52210iMXPB1#,MXPJ1#202008-202308

main53867-52211iMXPB1#,MXPJ1#202309-202401

9011906137

main90119-06137

9095006096

main90950-06096

17 parts on this diagram · 2 diagrams in section
